Buy Lavoce CSF102.50K 10 inch 25.4 cm Subwoofer 8 Ω weatherproof

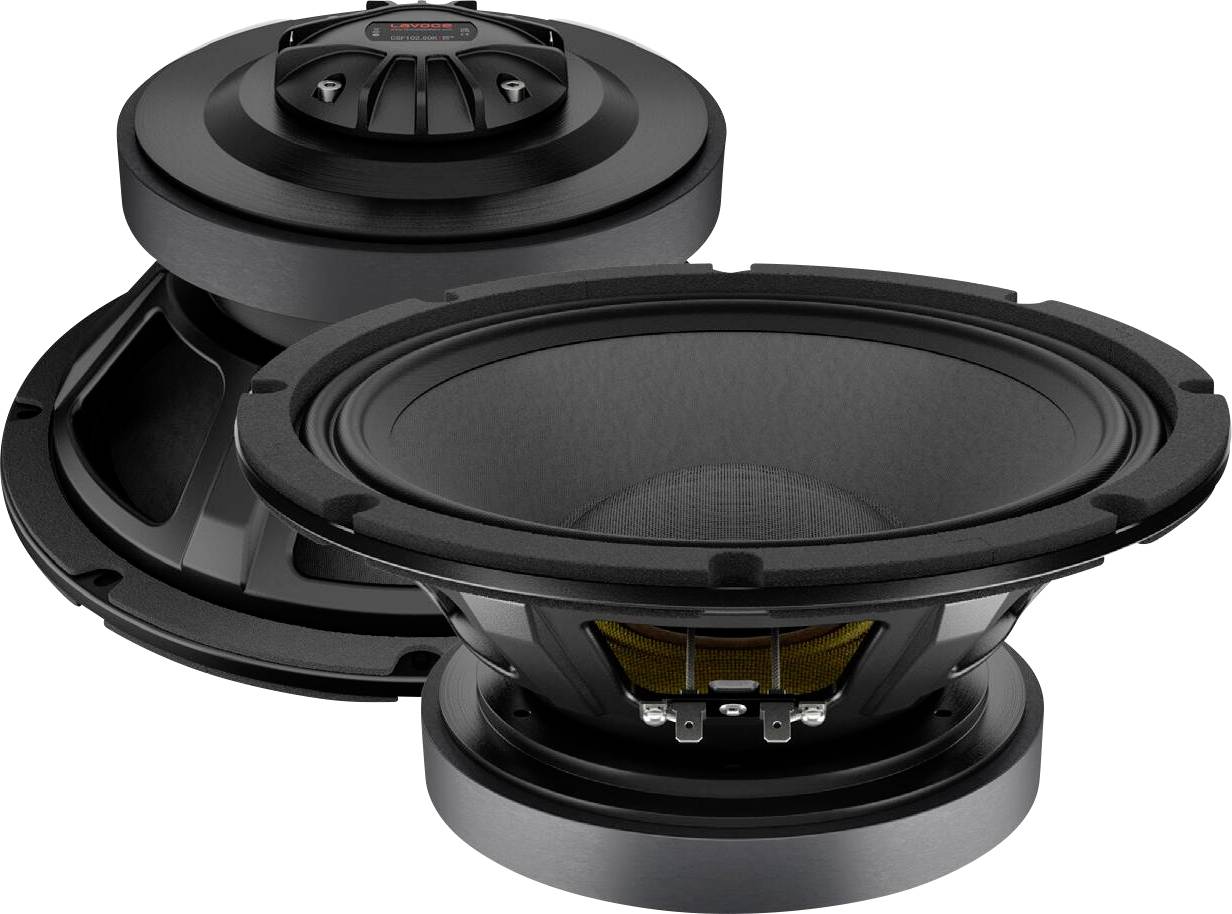

Two black subwoofer speakers, one facing front showing the cone and surround, the other showing the rear magnet and connections.

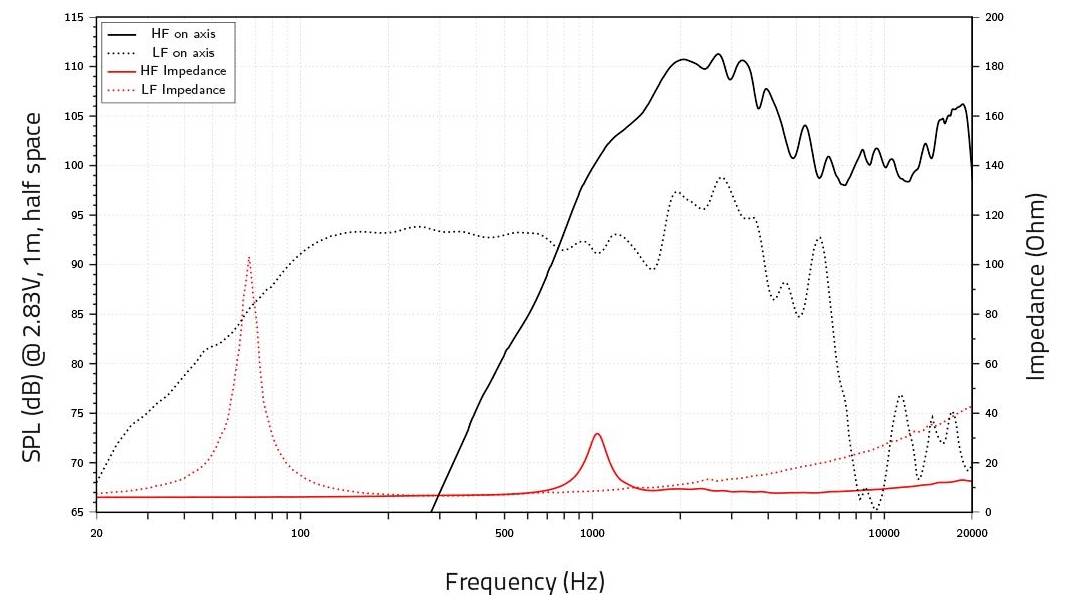

Graph showing speaker performance: Black line shows high frequency response peaking at 95 dB; red line indicates varying impedance levels.

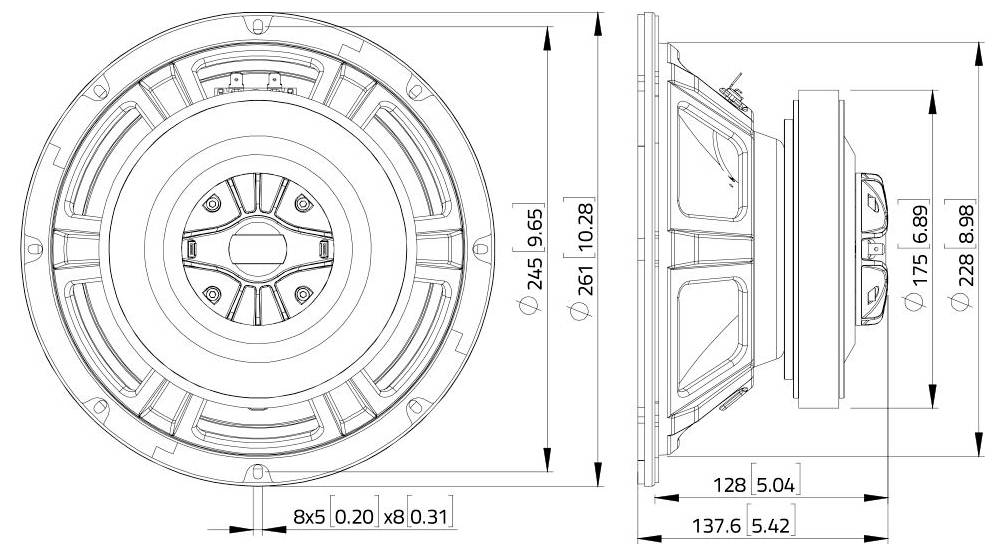

'Speaker technical drawing with dimensions in millimeters and inches: diameter 245, depth 128, mounting depth 118, vented design.'

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 10" woofer with shared ferrite magnet with 2-fold demodulation ring; basket material: Steel; cone material: Weatherproof cardboard/paper; 2.5" moving coil woofer; graphite material: Polyamide; 1" compression driver tweeter; 1.7" moving coil compression driver tweeter
CAPACITY 60W AES HF
Frequency range 65 - 4000 Hz LF; 1000 - 20000 Hz HF
Sensitivity 97 dB LF; 105 dB HF

Product type: Subwoofer

Speaker size (inch): 10 inch

Speaker size (cm): 25.4 cm

Max. load: 60 W

Min. frequency: 65 Hz
1000 Hz

Max. frequency: 4000 Hz
20000 Hz

Impedance: 8 Ω

Sound pressure: 97 dB

Weight: 4.90 kg

Features: weatherproof

Frequency range: 65, 1000 Hz, Hz - 4000, 20000 Hz, Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729688 Lavoce CSF102.50K 10 inch 25.4 cm Subwoofer 8 Ω weatherproof

Description

300 W AES LF/60 W AES HF, 8 ohm LF/8 ohm HF, 97 dB LF/105 dB HF, 65-4000 Hz LF/1000-20000 Hz HF. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
