Buy Lavoce CSF122.50K 12 inch 30.48 cm Subwoofer 60 W 8 Ω weatherproof

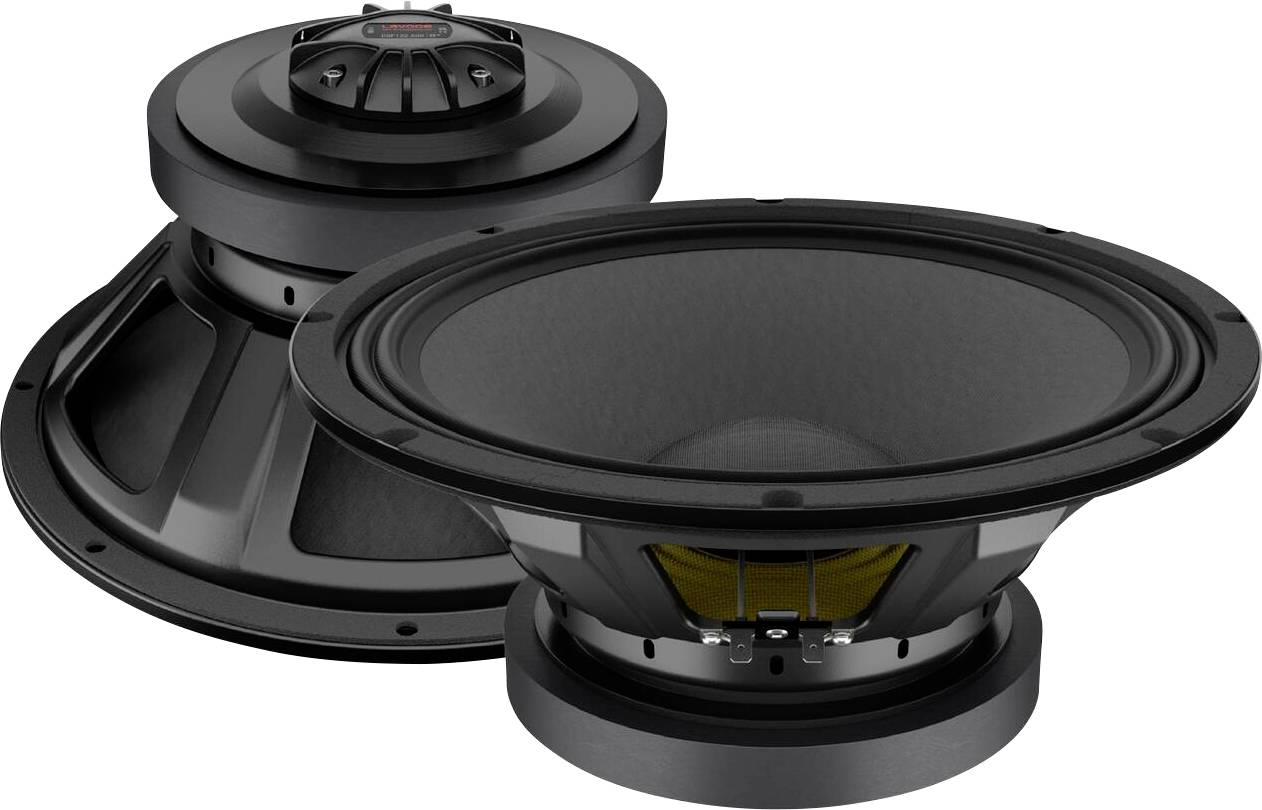

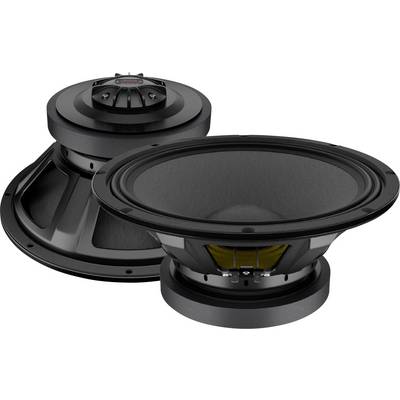

Two large black subwoofer speakers, featuring a cone shape and metal frame, designed for deep bass reproduction in audio systems.

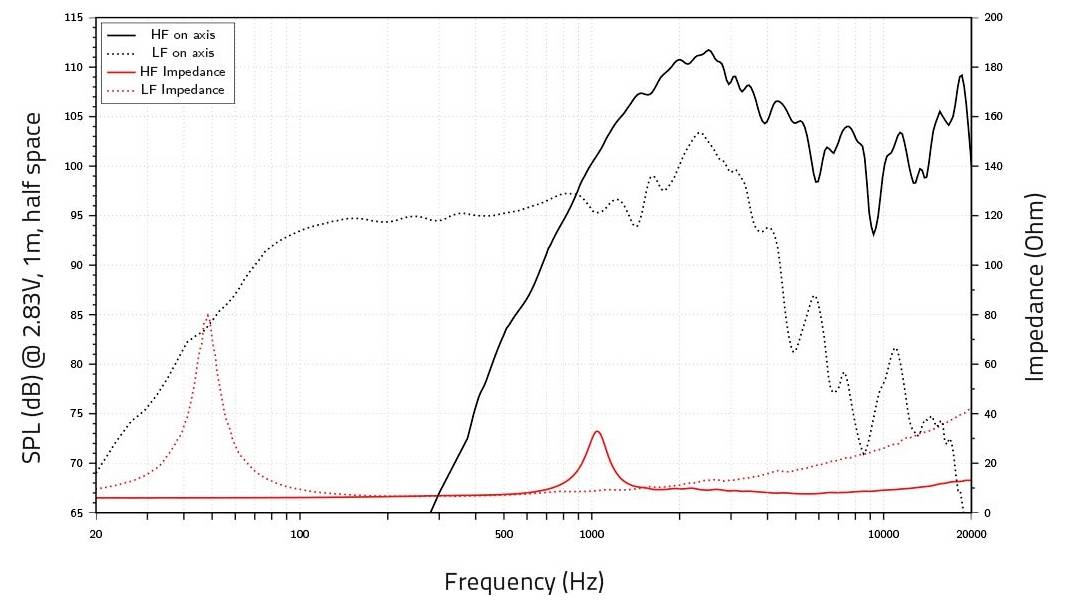

'Frequency Response and Impedance Graph' showing SPL (dB) and Impedance (Ohm) vs Frequency (Hz) for 'HF' and 'LF' components, highlighting key peaks and trends.

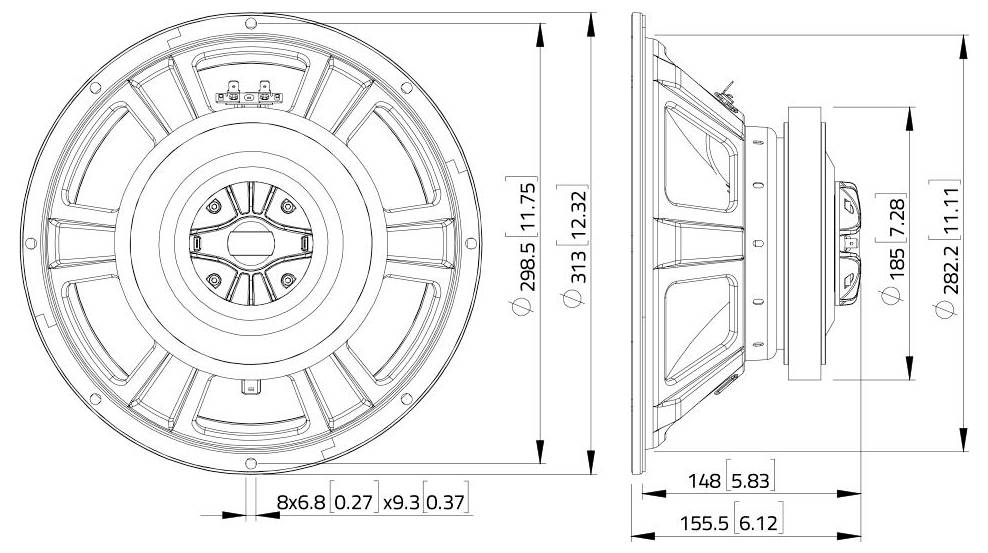

Technical drawing of a speaker system showing front and side views with dimensions. The circle diameter is 298.5mm and depth is 155.5mm.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 12" woofer with shared ferrite magnet with 2-fold demodulation ring; basket material: Steel; cone material: Weatherproof cardboard/paper; 2.5" moving coil woofer; graphite material: Polyamide; 1" compression driver tweeter; 1.7" moving coil compression driver tweeter
CAPACITY 60W AES HF
Frequency range 45 - 4000 Hz LF; 1000 - 20000 Hz HF
Sensitivity 97 dB LF; 105 dB HF

Product type: Subwoofer

Speaker size (inch): 12 inch

Speaker size (cm): 30.48 cm

RMS capacity: 60 W

Max. load: 60 W

Min. frequency: 45 Hz
1000 Hz

Max. frequency: 4000 Hz
20000 Hz

Impedance: 8 Ω

Sound pressure: 97 dB

Weight: 5.60 kg

Features: weatherproof

Frequency range: 45, 1000 Hz, Hz - 4000, 20000 Hz, Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729689 Lavoce CSF122.50K 12 inch 30.48 cm Subwoofer 60 W 8 Ω weatherproof

Description

300 W AES LF/60 W AES HF, 8 ohm LF/8 ohm HF, 97 dB LF/105 dB HF, 45-4000 Hz LF/1000-20000 Hz HF. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
