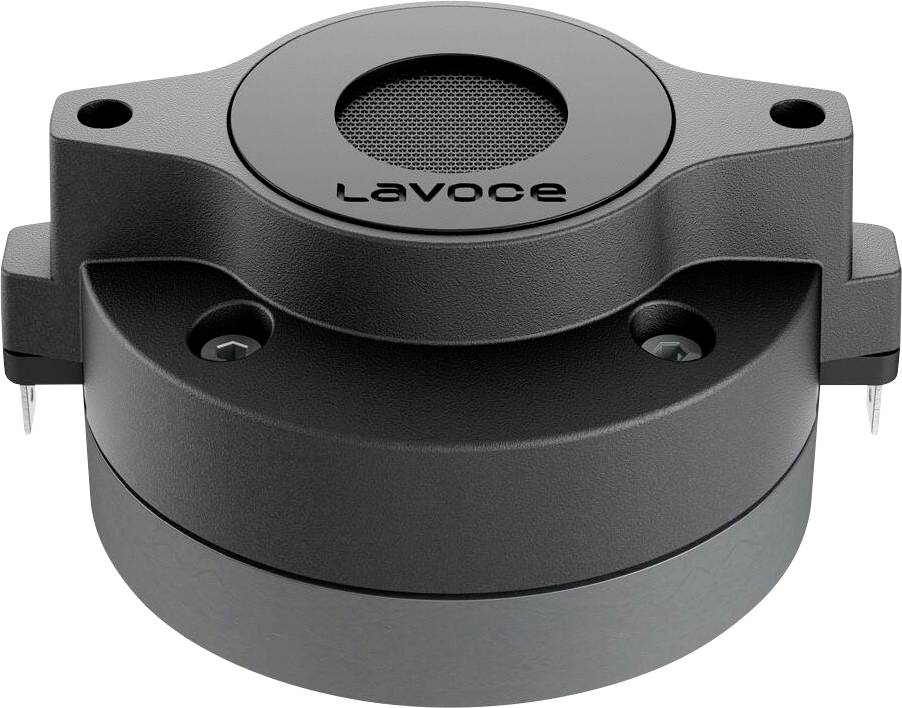

'A round, black audio speaker component with mounting holes and the label 'lavoce' on top, used in sound equipment.'

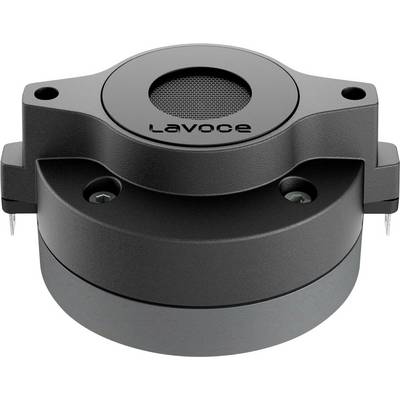

'A round, black audio speaker component with mounting holes and the label 'lavoce' on top, used in sound equipment.'

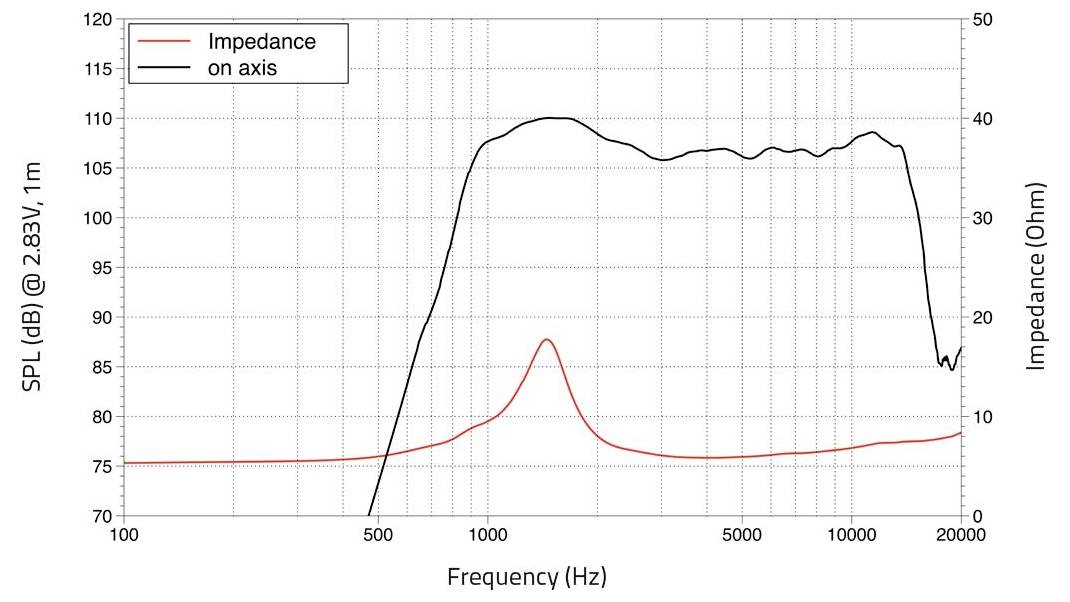

A graph showing speaker performance with frequency (Hz) on the x-axis, SPL (dB) on the left y-axis, and impedance (Ohm) on the right y-axis. Black line shows sound pressure level, red line shows impedance.

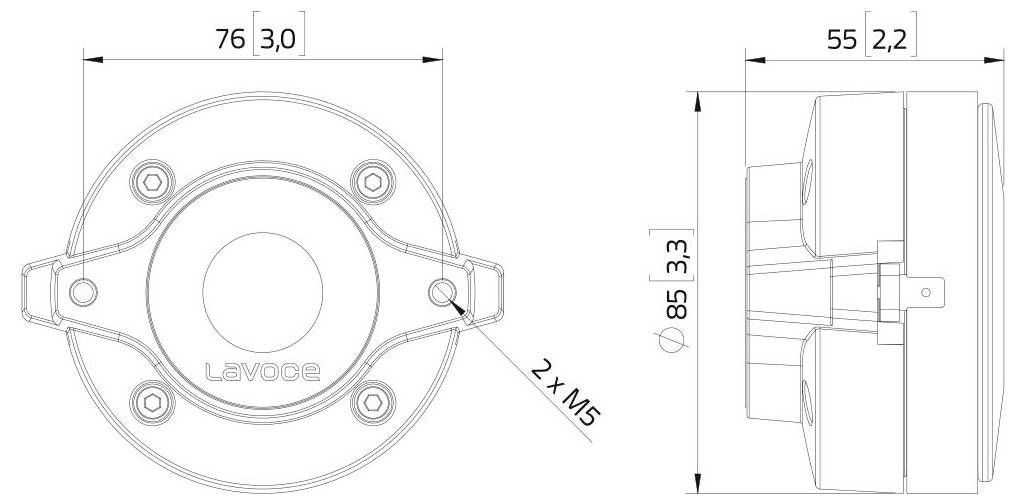

Technical diagram of a mechanical part with dimensions: front view is 76 mm by 30 mm, side view is 55 mm by 22 mm. Features are labeled for assembly.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: PEEK (H.T. Polymer); 1" voice coil compression driver tweeter
Rating 20 W AES
Sensitivity 107 dB

Product type: Tweeter driver

Max. load: 20 W

Min. frequency: 1500 Hz

Max. frequency: 18000 Hz

Frequency range: 1500 Hz - 18000 Hz

Impedance: 8 Ω

Weight: 0.78 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729609 Lavoce DF10.101L Tweeter driver 8 Ω

Description

20 W AES, 8 ohm, 107 dB, 1500 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
