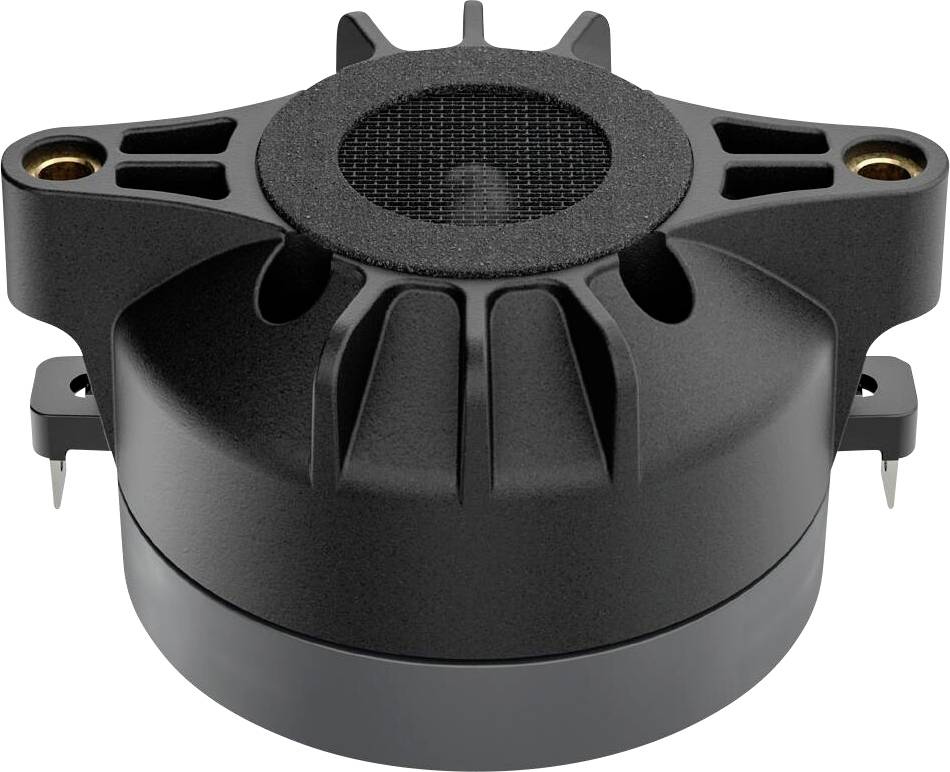

Close-up of a black, round speaker component with a mesh-covered center and mounting points, likely used in audio equipment.

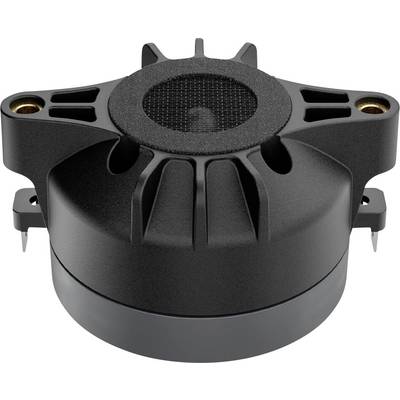

Close-up of a black, round speaker component with a mesh-covered center and mounting points, likely used in audio equipment.

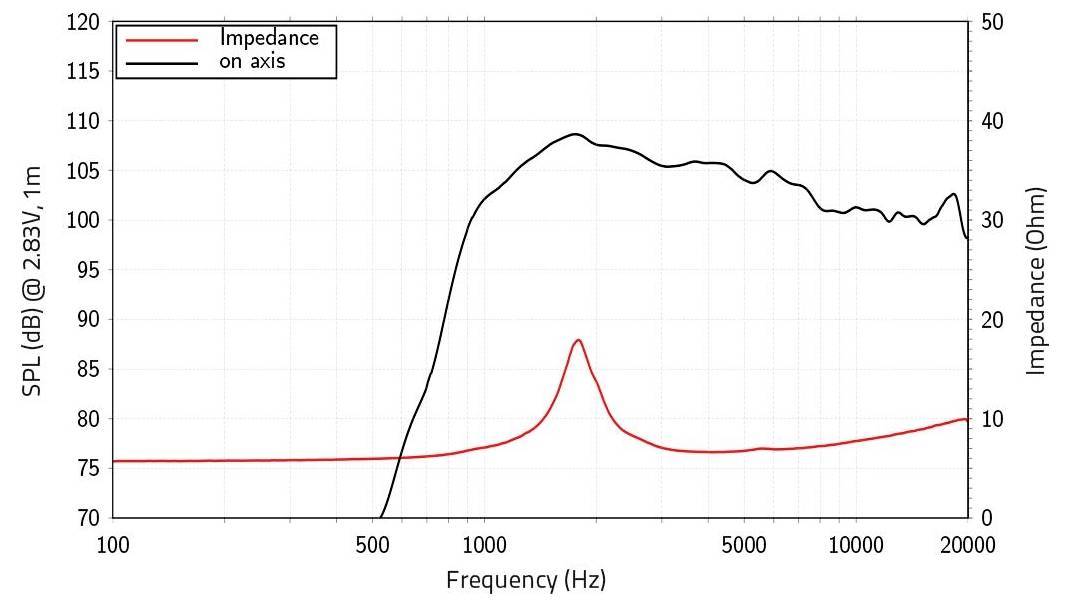

'Line graph showing SPL and impedance vs frequency. SPL peaks at 105 dB around 1kHz. Impedance peaks at 40 Ohms near 100Hz.'

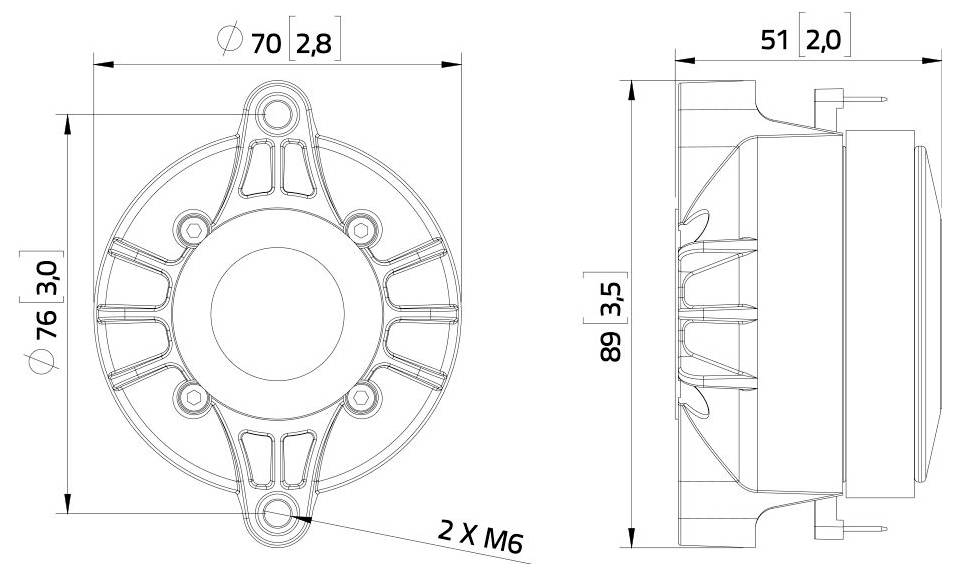

Technical drawing of a circular fan, showing front and side views with detailed measurements: 76 mm diameter, 89 mm height, and 51 mm depth.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: PEEK (H.T. Polymer); 1" voice coil compression driver tweeter
Rating 15 W AES
Sensitivity 106 dB

Product type: Tweeter driver

Max. load: 15 W

Min. frequency: 1500 Hz

Max. frequency: 20000 Hz

Frequency range: 1500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 0.47 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729618 Lavoce DF10.101LE Tweeter driver 8 Ω

Description

15 W AES, 8 ohm, 106 dB, 1500 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
