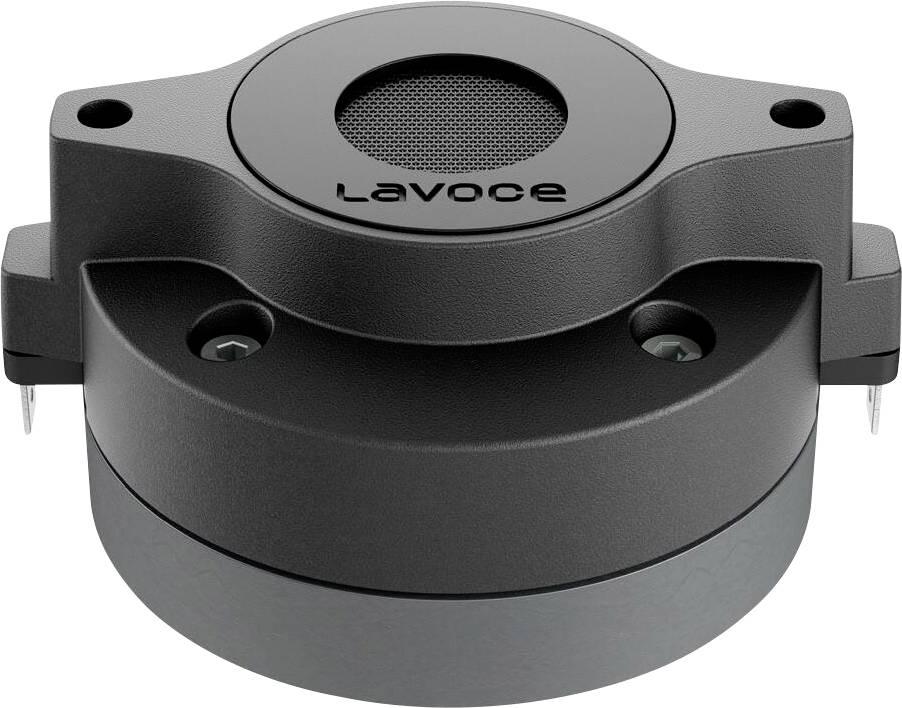

A black loudspeaker driver from LAVOCE with a circular design, featuring a mesh-covered center and two metal tabs for connections.

A black loudspeaker driver from LAVOCE with a circular design, featuring a mesh-covered center and two metal tabs for connections.

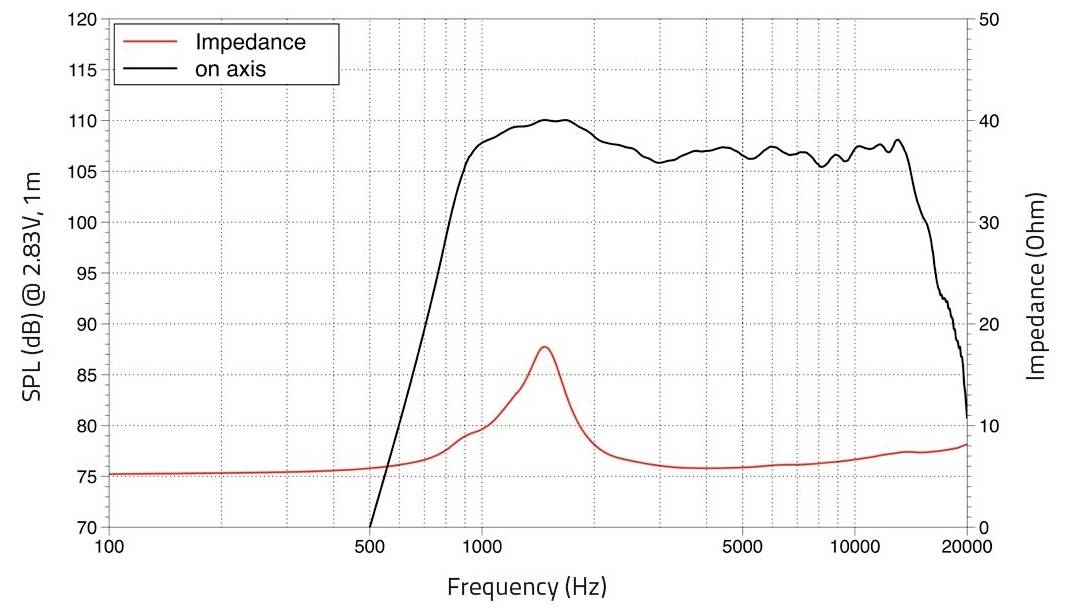

Frequency response graph showing sound pressure level (black line) and impedance (red line) from 20 Hz to 20,000 Hz. SPL levels 70-115 dB.

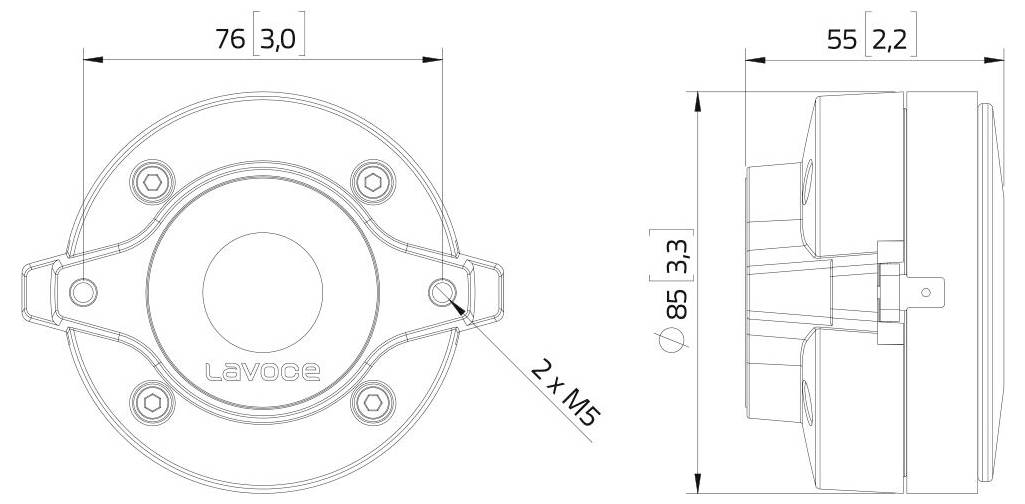

'Technical diagram of a mechanical component with dimensions: 76x30mm and 55x22mm. Mounting holes labeled as 2xM5. Side view dimensions 85x33mm.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polyester; 1" moving coil compression driver tweeter
Rating 15 W AES
Sensitivity 107 dB

Product type: Tweeter driver

Max. load: 15 W

Min. frequency: 1500 Hz

Max. frequency: 18000 Hz

Frequency range: 1500 Hz - 18000 Hz

Impedance: 8 Ω

Weight: 0.79 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729608 Lavoce DF10.101LM Tweeter driver 8 Ω

Description

15 W AES, 8 ohm, 107 dB, 1500 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
