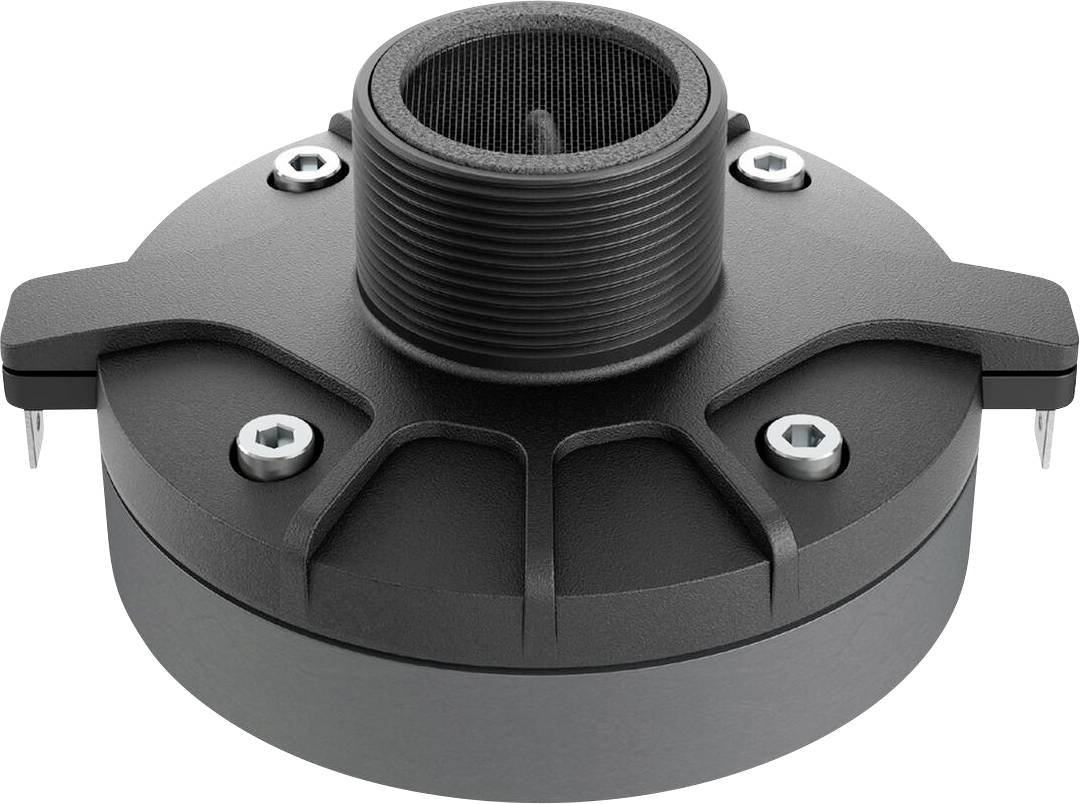

'A JBL 2414H-C compression driver shown from above, featuring a central circular component with four mounting points and visible screws.'

'A JBL 2414H-C compression driver shown from above, featuring a central circular component with four mounting points and visible screws.'

Graph showing 'SPL (dB) @ 2.83V, 1m' and impedance versus frequency. SPL rises to 89 dB at 1,000 Hz. Impedance peaks near 50 ohms at 70 Hz.

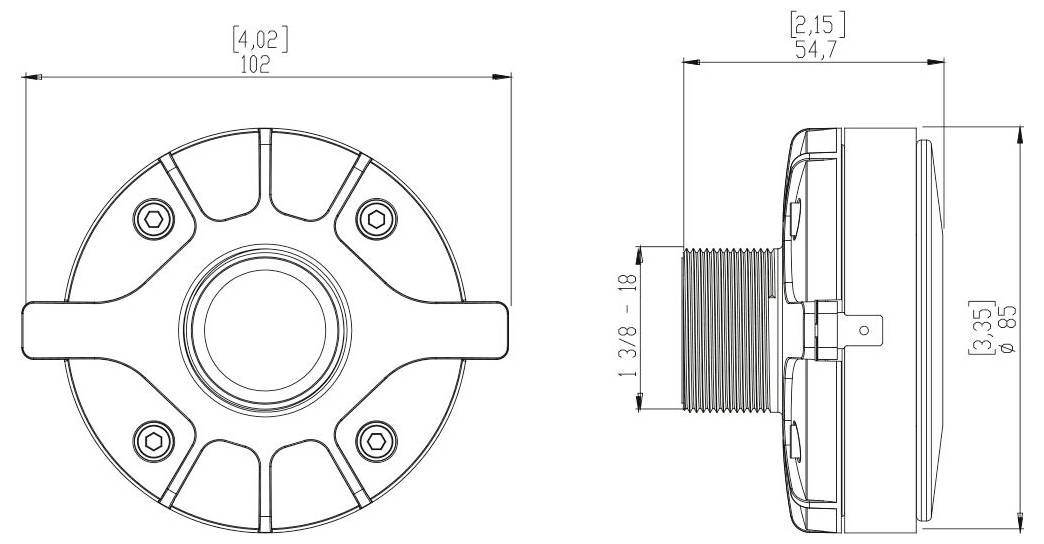

A technical drawing shows a round mechanical part with dimensions: 102mm diameter, 54.7mm height, and 85mm threading section.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: PEEK (H.T. Polymer); 1" voice coil compression driver tweeter
Rating 20 W AES
Sensitivity 107 dB

Product type: Tweeter driver

Max. load: 20 W

Min. frequency: 1500 Hz

Max. frequency: 18000 Hz

Frequency range: 1500 Hz - 18000 Hz

Impedance: 8 Ω

Weight: 0.75 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729613 Lavoce DF10.101LS Tweeter driver 8 Ω

Description

20 W AES, 8 ohm, 107 dB, 1500 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
