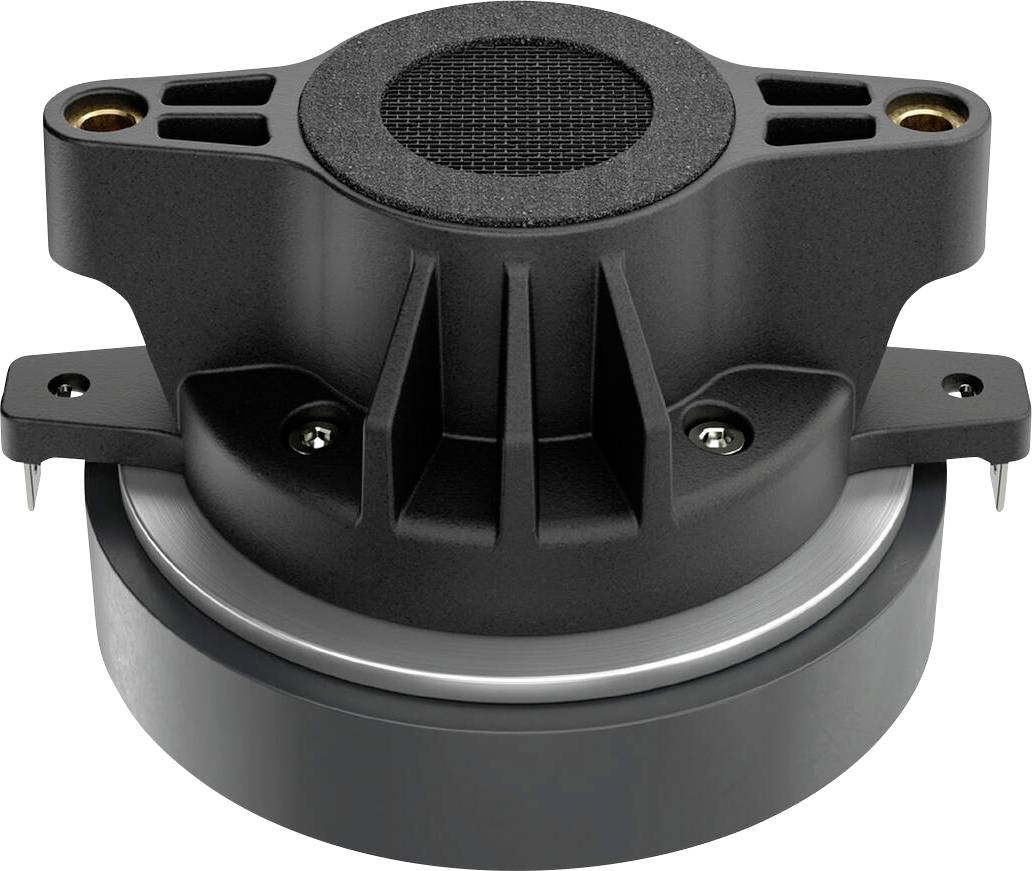

A black audio speaker component with a circular grille and mounting holes, designed for high-frequency sound reproduction in audio systems.

A black audio speaker component with a circular grille and mounting holes, designed for high-frequency sound reproduction in audio systems.

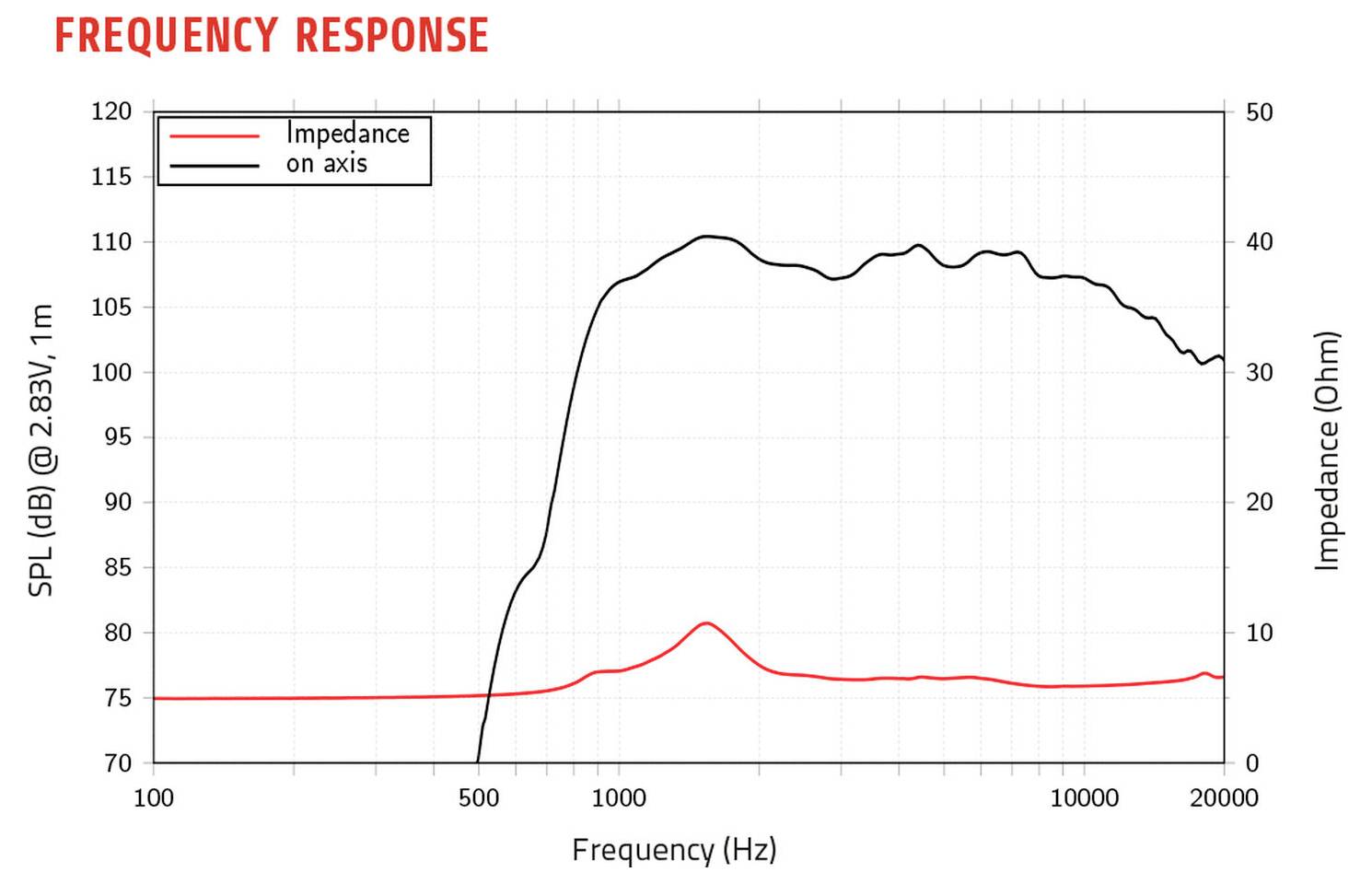

'Frequency Response' graph: SPL (dB) vs. Frequency (Hz); shows a black line for 'on axis' peaking near 2,000 Hz and a red line for 'Impedance.'

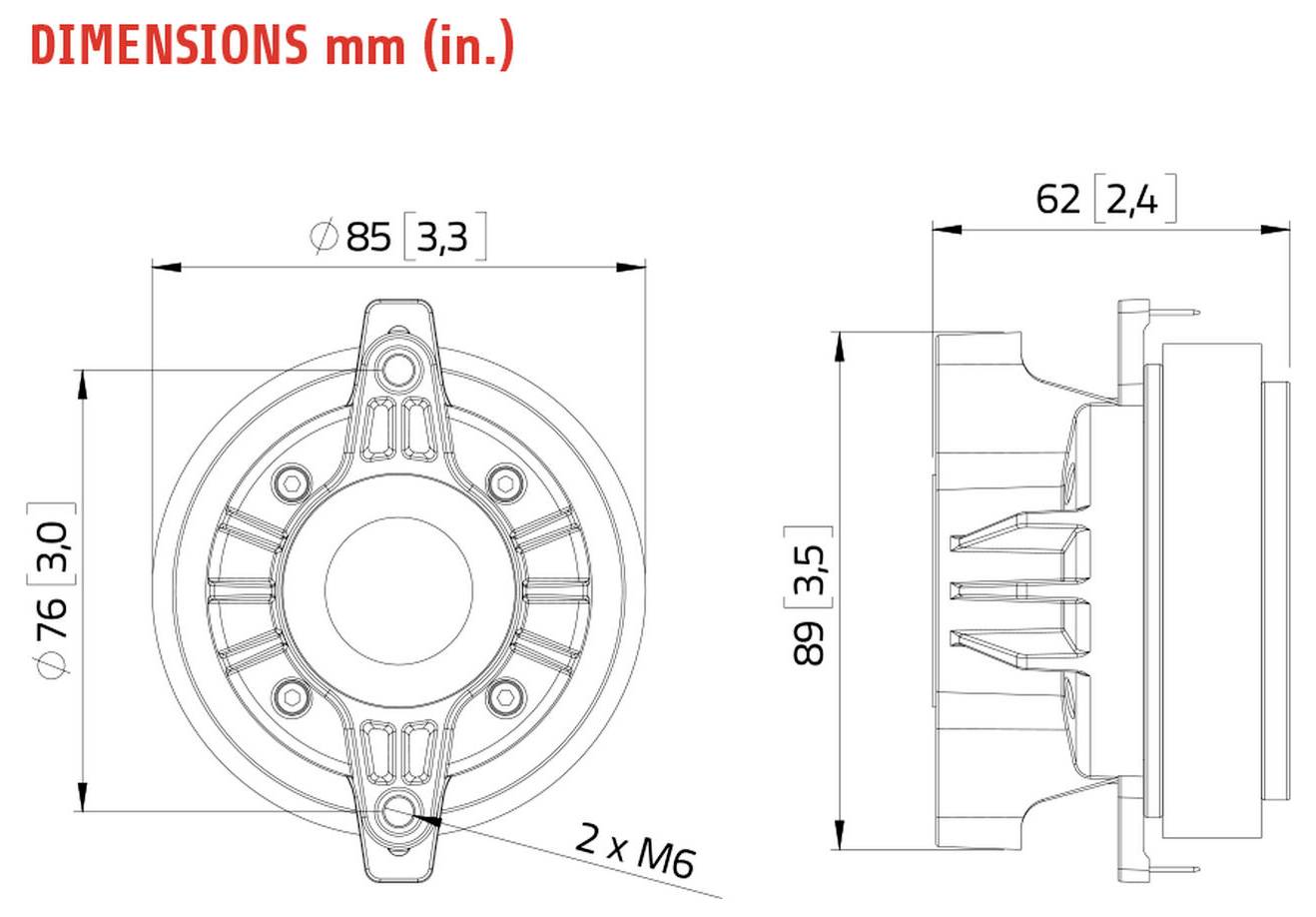

Technical drawing of a component with dimensions. Diameter measurements are 85 mm and 76 mm on the front view and 62 mm, 89 mm on the side view. Includes 2 x M6 holes.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polyester; 1" moving coil compression driver tweeter
Rating 25 W AES
Sensitivity 109 dB

Product type: Tweeter driver

Max. load: 25 W

Min. frequency: 1200 Hz

Max. frequency: 20000 Hz

Frequency range: 1200 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 0.82 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729622 Lavoce DF10.103M Tweeter driver 8 Ω

Description

You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
