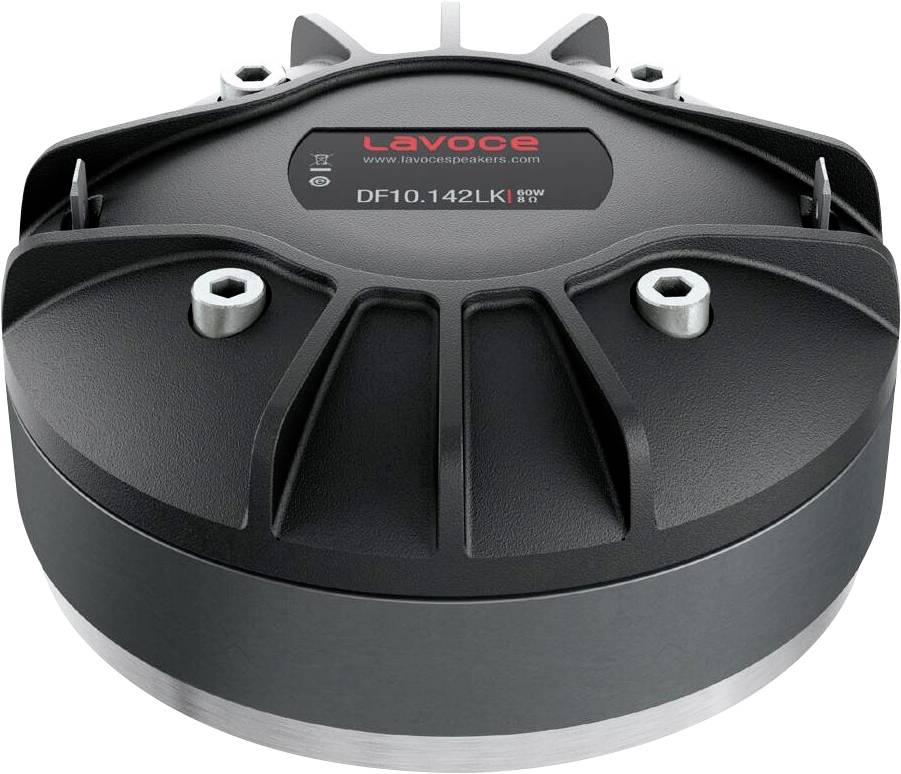

A black and silver audio speaker component with a labeled section 'Lavoce DF10.142LK'. It features bolts and a circular metallic base.

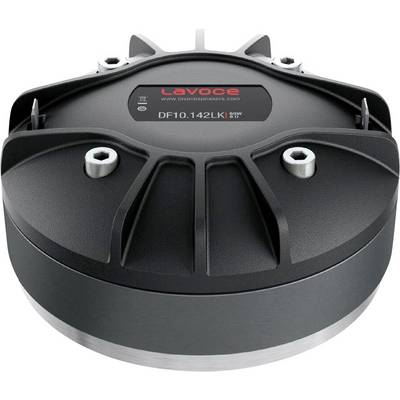

A black and silver audio speaker component with a labeled section 'Lavoce DF10.142LK'. It features bolts and a circular metallic base.

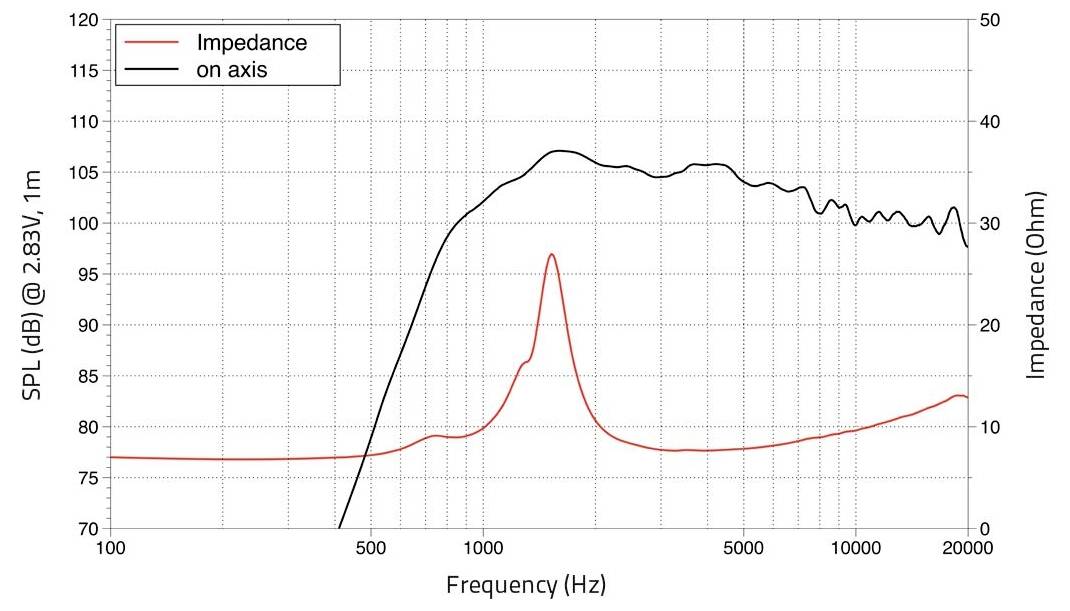

'Graph showing SPL and impedance against frequency. SPL peaks at around 105 dB (500-5k Hz range). Impedance peaks near 25 Ohm at 70 Hz.'

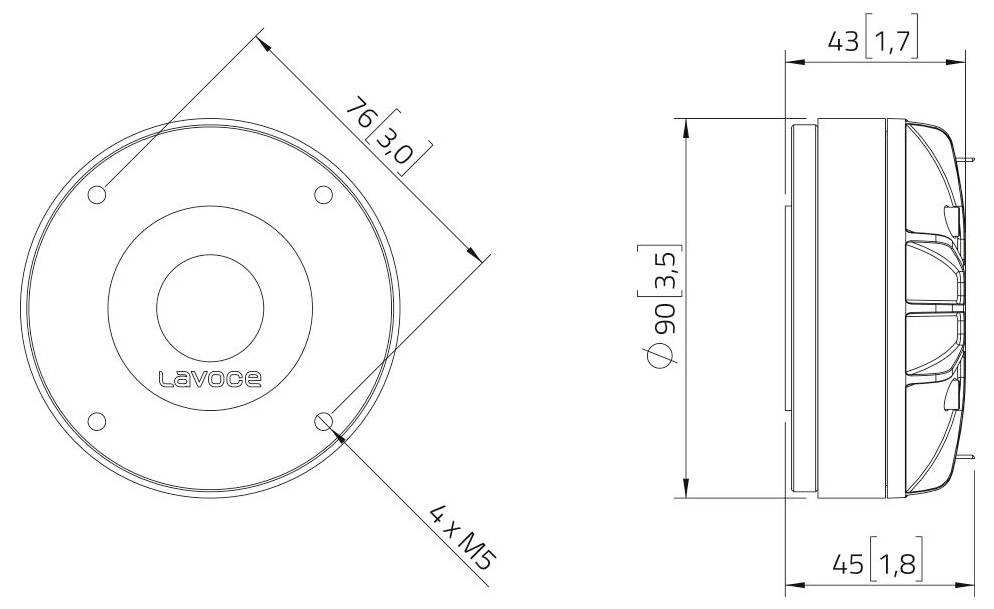

'Technical drawing of a circular device with dimensions: 76 mm diameter, 90 mm height, 43 mm and 45 mm side sections, 4 x M5 screws.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; 1.4" moving coil compression driver tweeter
Rating 35 W AES
Sensitivity 106 dB

Product type: Tweeter driver

Max. load: 35 W

Min. frequency: 1500 Hz

Max. frequency: 20000 Hz

Frequency range: 1500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 0.94 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729610 Lavoce DF10.142LK Tweeter driver 8 Ω

Description

35 W AES, 8 ohm, 106 dB, 1500 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
