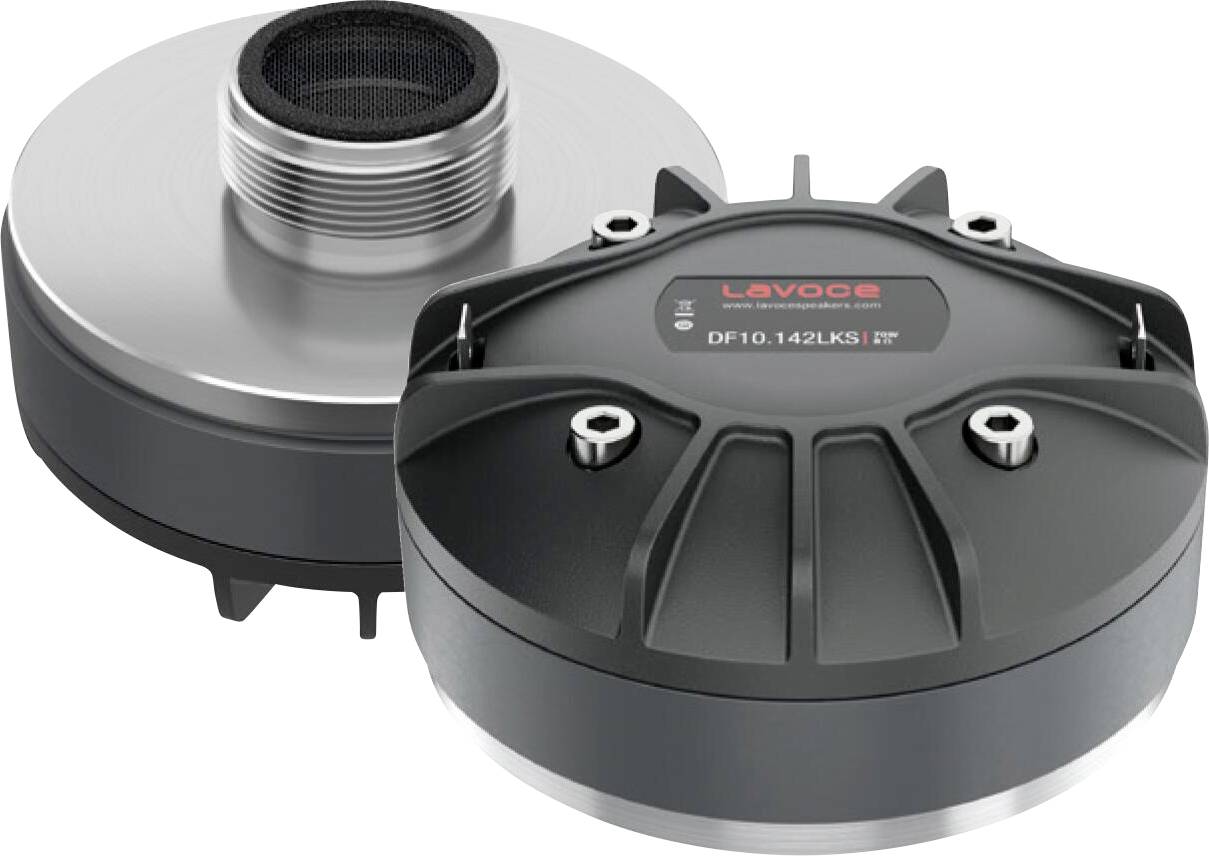

'LaVoce DF 1.0 142LKS' speaker drivers with sleek, metallic design, showing front and back views. Designed for high-quality audio performance.

'LaVoce DF 1.0 142LKS' speaker drivers with sleek, metallic design, showing front and back views. Designed for high-quality audio performance.

'Frequency Response' graph shows SPL (dB) vs Frequency (Hz) and Impedance (Ohm) curves. Black line is Impedance, red line is on-axis SPL.

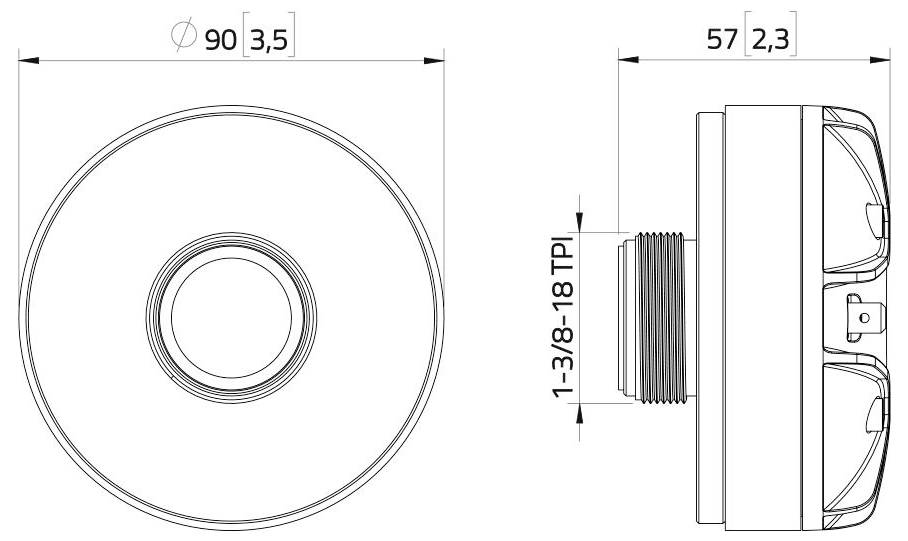

'Technical drawing of a cylindrical component with a diameter of 90 mm and depth of 57 mm, featuring 1-3/8-18 TPI thread.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polymide; 1.4" voice coil compression driver tweeter
Rating 35 W AES
Sensitivity 106 dB

Product type: Tweeter driver

Max. load: 35 W

Min. frequency: 1500 Hz

Max. frequency: 20000 Hz

Frequency range: 1500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 1.01 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729614 Lavoce DF10.142LKS Tweeter driver 8 Ω

Description

35 W AES, 8 ohm, 106 dB, 1500 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
