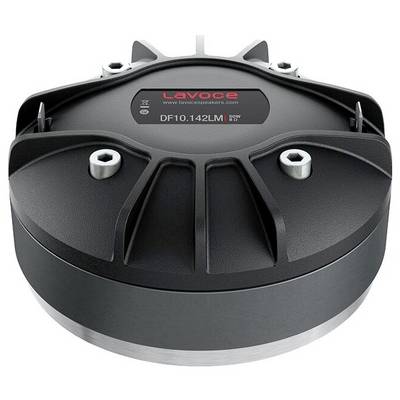

The image shows the rear view of a Lavoce DF10.142LM compression driver, featuring a black casing with mounting screw points.

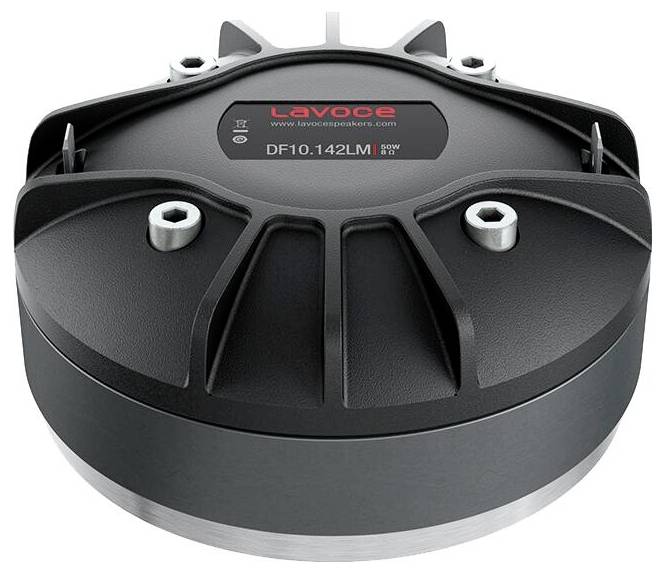

The image shows the rear view of a Lavoce DF10.142LM compression driver, featuring a black casing with mounting screw points.

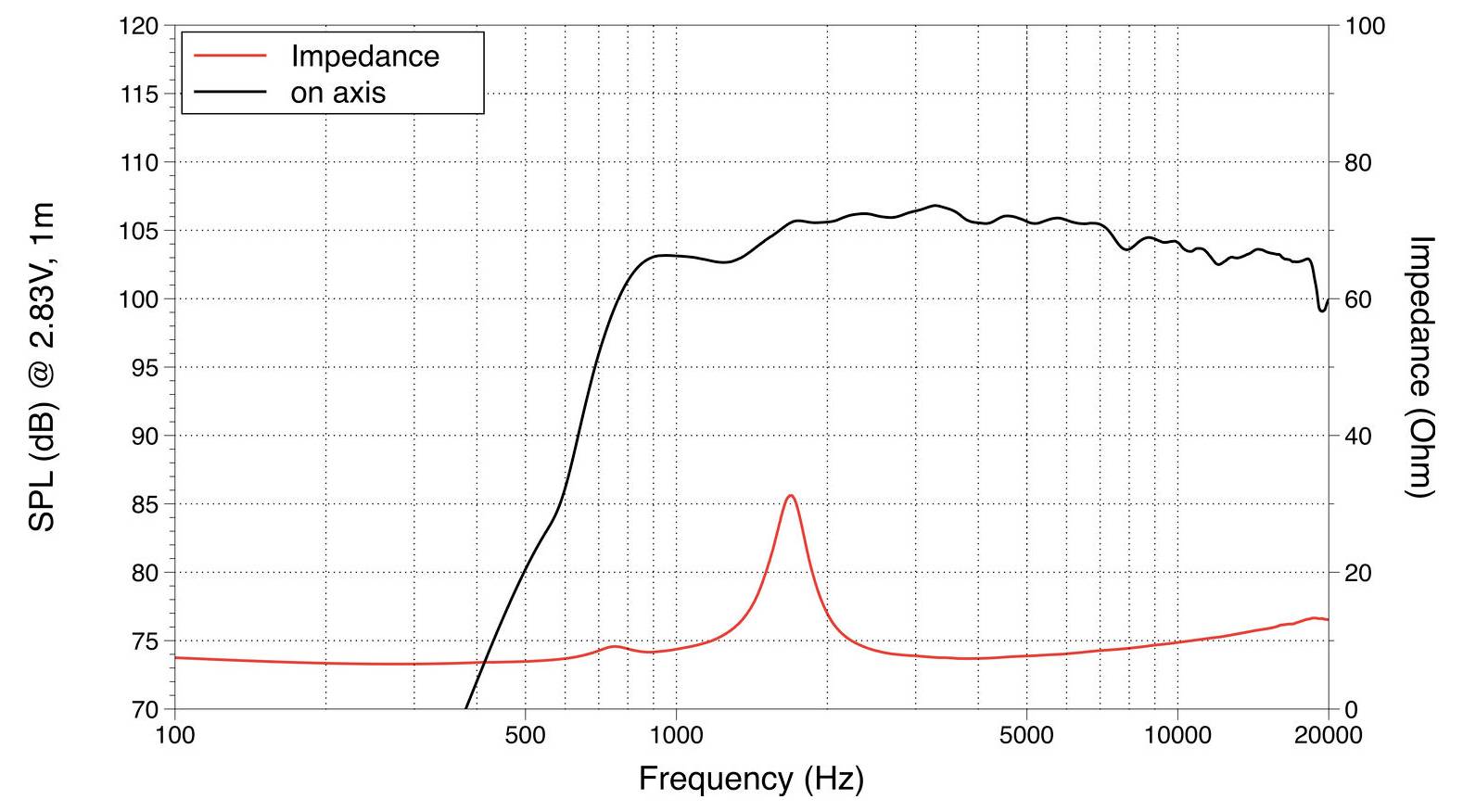

'Frequency response chart showing SPL in dB and impedance in Ohms over frequency range from 20 to 20,000 Hz. SPL rises to 95 dB, impedance peaks at 20 Ohms.'

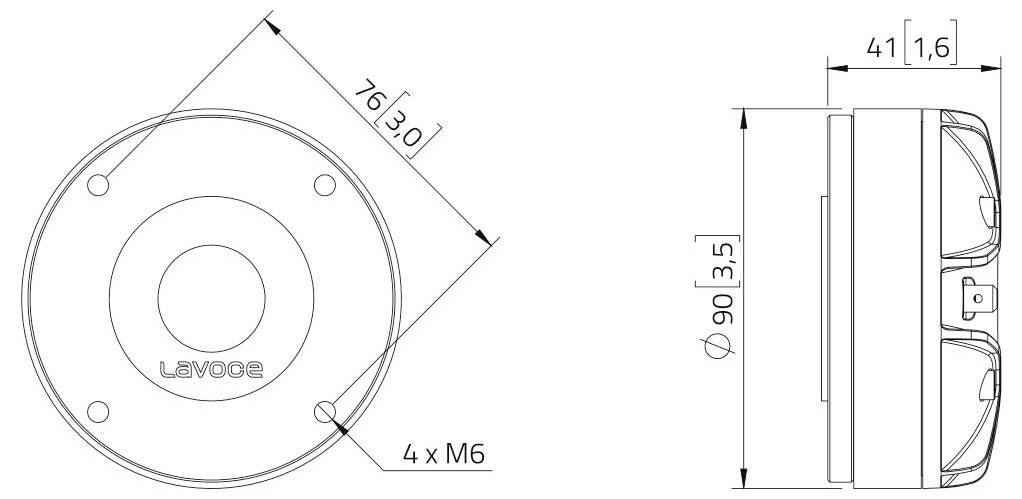

'LeVoice' round device technical drawing with dimensions: diameter 76mm, depth 41mm, and 90mm diameter top view. Includes 4 M6 bolt holes.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polyester; 1.4" moving coil compression driver tweeter
Rating 25 W AES
Sensitivity 106 dB

Product type: Tweeter driver

Max. load: 25 W

Min. frequency: 1500 Hz

Max. frequency: 20000 Hz

Frequency range: 1500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 0.94 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729669 Lavoce DF10.142LM Tweeter driver 8 Ω

Description

25 W AES, 8 ohm, 106 dB, 1500 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
