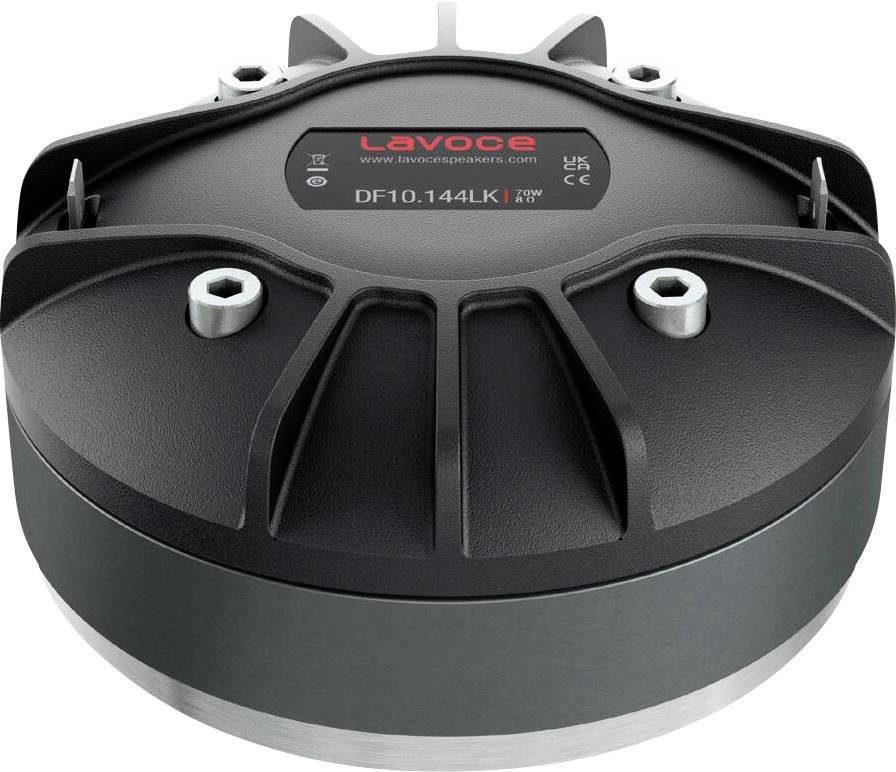

'LaVoce DF10.144LKi' speaker driver unit, featuring a sleek black design with metal screws and a visible label displaying technical details.

'LaVoce DF10.144LKi' speaker driver unit, featuring a sleek black design with metal screws and a visible label displaying technical details.

Graph showing speaker performance: Black line for SPL (dB) peaks at 105 at 2000 Hz; red line for Impedance (Ohm) peaks at 32 at 1000 Hz. Frequency range is 20 Hz to 20,000 Hz.

'LaVoce' branded circular speaker schematic. Front and side views with dimensions: 76 mm diameter front, 90 mm depth side, 4 mounting holes.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polymide; 1.4" voice coil compression driver tweeter
Rating 35 W AES
Sensitivity 106 dB

Product type: Tweeter driver

Max. load: 35 W

Min. frequency: 1000 Hz

Max. frequency: 20000 Hz

Frequency range: 1000 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 0.95 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729619 Lavoce DF10.144LK Tweeter driver 8 Ω

Description

35 W AES, 8 ohm, 106 dB, 1000 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
