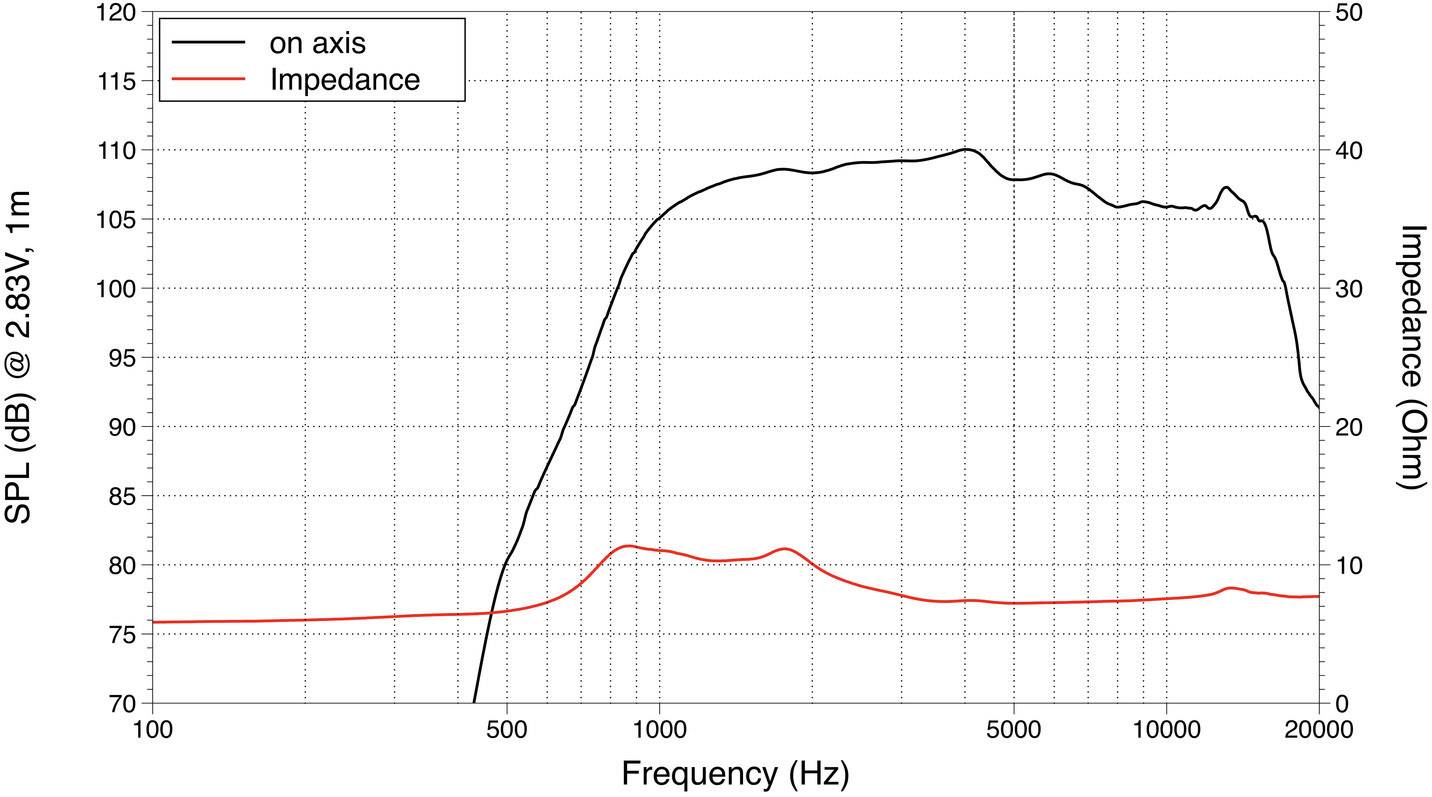

The diagram shows the frequency response and impedance of a speaker from 20 Hz to 20,000 Hz. Sound level (dB) and impedance (ohms) are plotted on the y-axes.

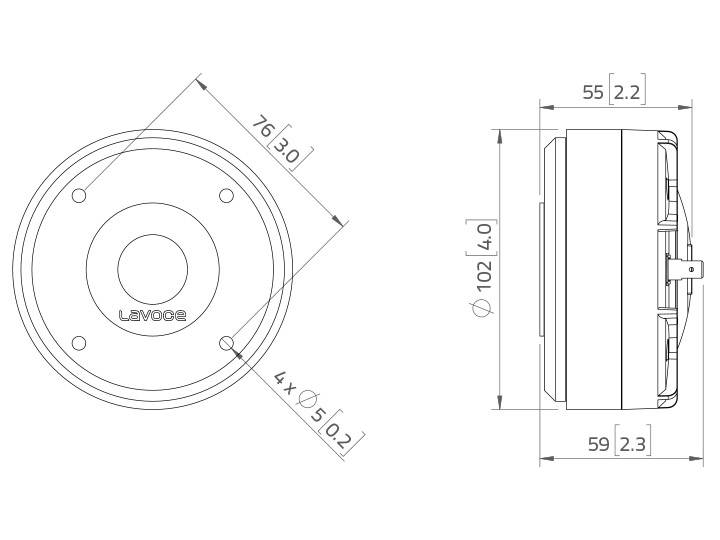

Technical drawing of a round sensor with dimensions: Diameter 102 mm, Height 59 mm. Front view and side view depicted.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

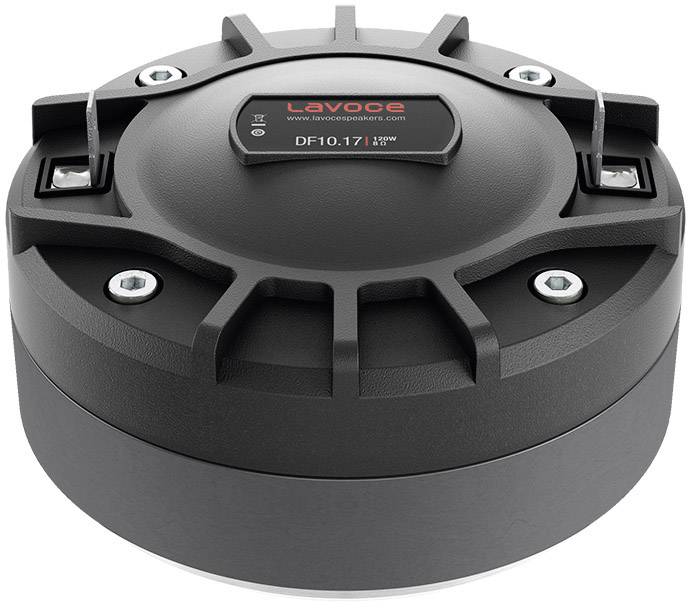

DF 10.17 1" compression driver, ferrite

60 W AES
8 Ohm, 108 dB, 1200 18000 Hz
Experienced, italian development team with outstanding know-how

Technical specifications

Nominal load capacity: 60 W AES 120 W impedance: 8 Ohm load program: Weight: 1.57 kg sensitivity: 108 dB Frequency range: 1200 - 18000 Hz loudspeaker control: 8 Ohm

Product type: Tweeter driver

RMS capacity: 60 W

Max. load: 120 W

Min. frequency: 1200 Hz

Max. frequency: 18000 Hz

Frequency range: 1200 Hz - 18000 Hz

Impedance: 8 Ω

Weight: 1.57 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1875907 Lavoce DF10.17 1 Tweeter driver RMS capacity=60 W 8 Ω

Description

DF 10.17 1" compression driver, ferrite.

This text is machine translated.

Features

Lived innovation climate
Outstanding, elegant Italian Design
The highest standards and excellent test tools
Modern and efficient production equipment with a high degree of automation
Excellent quality system
Efficient logistics
ISO 9001 certification.
