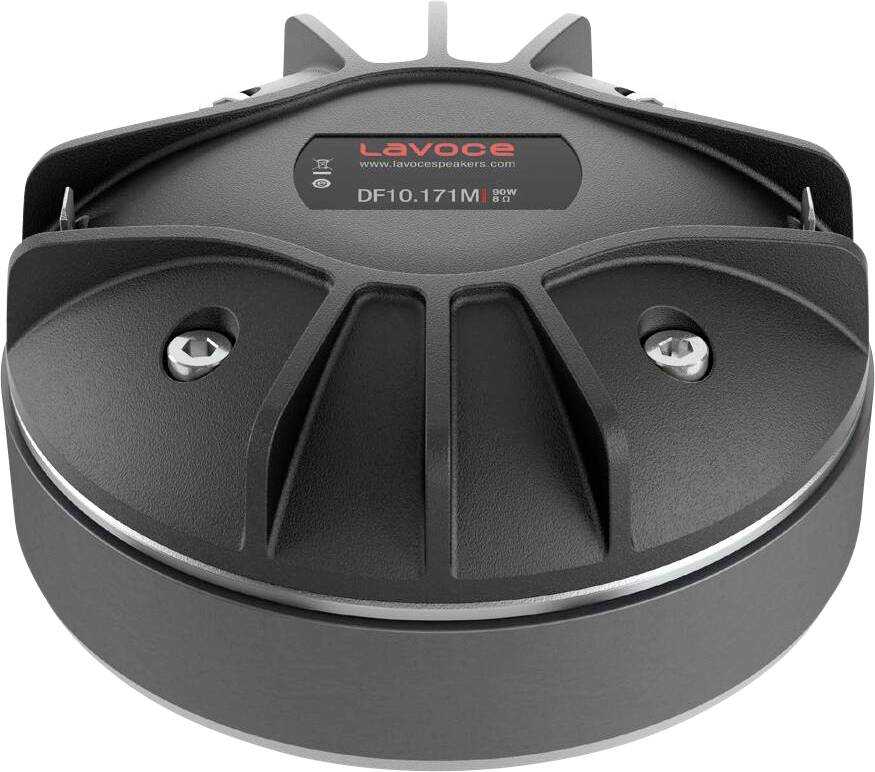

'LaVoce DF10.171M' speaker driver, black, featuring a matte finish and two visible screws on its surface.

'LaVoce DF10.171M' speaker driver, black, featuring a matte finish and two visible screws on its surface.

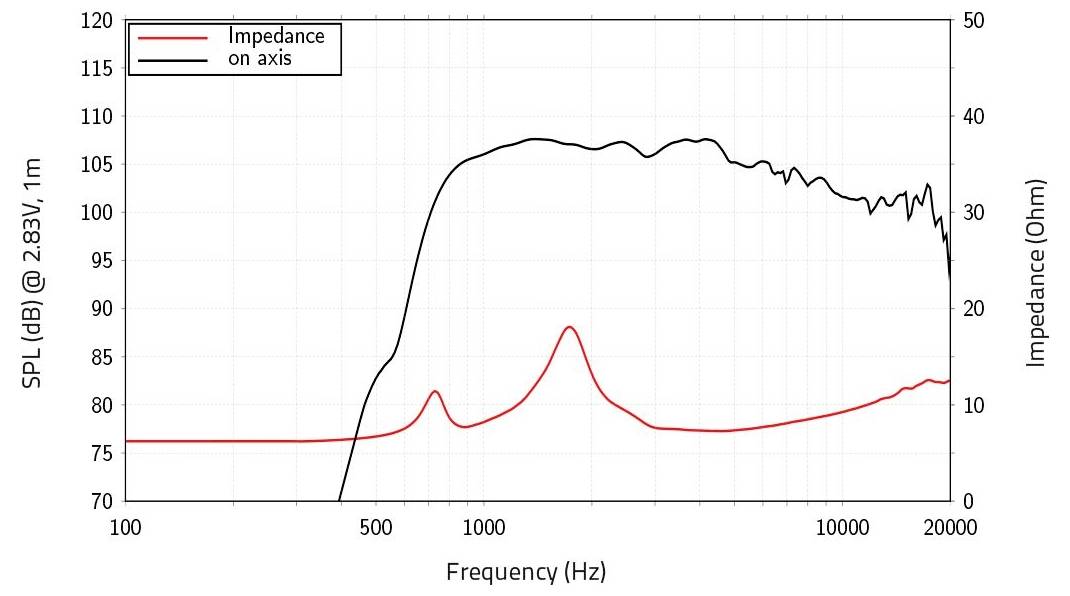

Graph showing speaker response: Black line is SPL (dB) vs Frequency (Hz), red line is Impedance (Ohm) vs Frequency. SPL peaks at 1000 Hz.

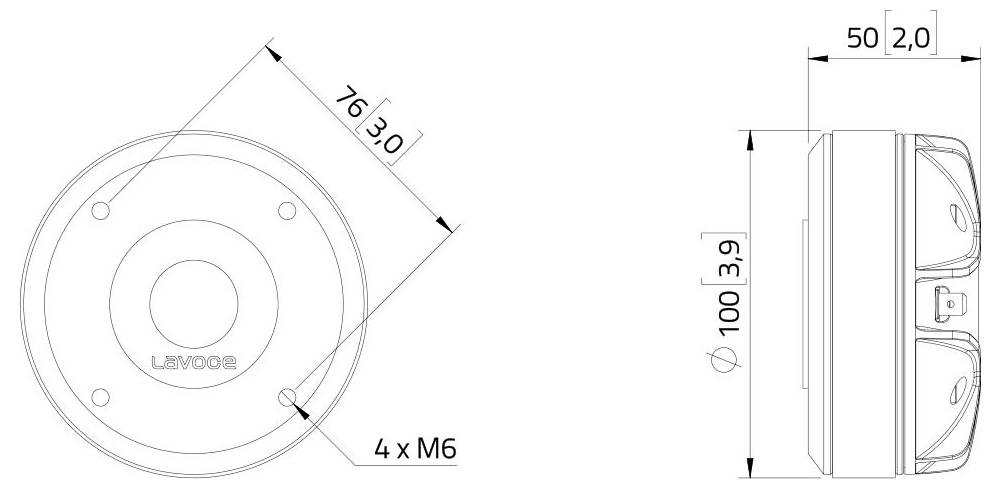

Technical drawing of a circular component with 'Levodr' label, showing top and side views. Dimensions: 76x50mm, 4xM6 screws.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polyester; 1.7" moving coil compression driver tweeter
Rating 45 W AES
Sensitivity 106.5 dB

Product type: Tweeter driver

Max. load: 45 W

Min. frequency: 1200 Hz

Max. frequency: 20000 Hz

Frequency range: 1200 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 1.41 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729615 Lavoce DF10.171M Tweeter driver 8 Ω

Description

45 W AES, 8 ohm, 106.5 dB, 1200 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
