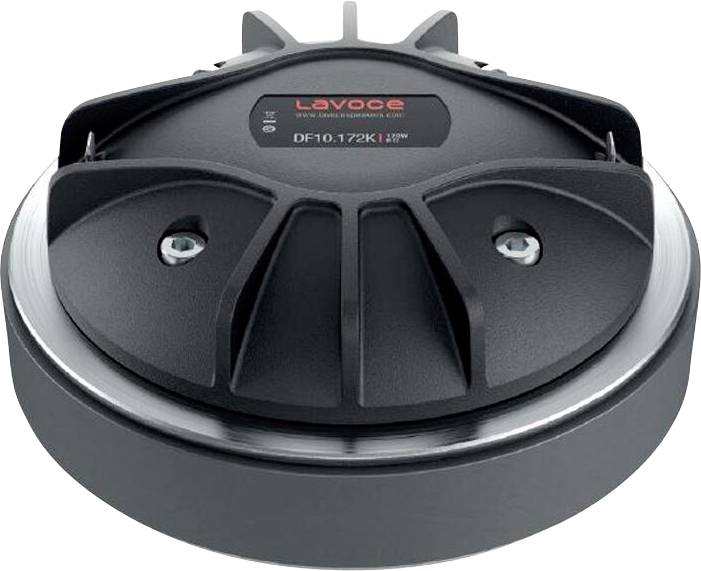

'A black Lavoco DF10.172K speaker driver with a circular design and visible bolts, featuring branding text on the front.'

'A black Lavoco DF10.172K speaker driver with a circular design and visible bolts, featuring branding text on the front.'

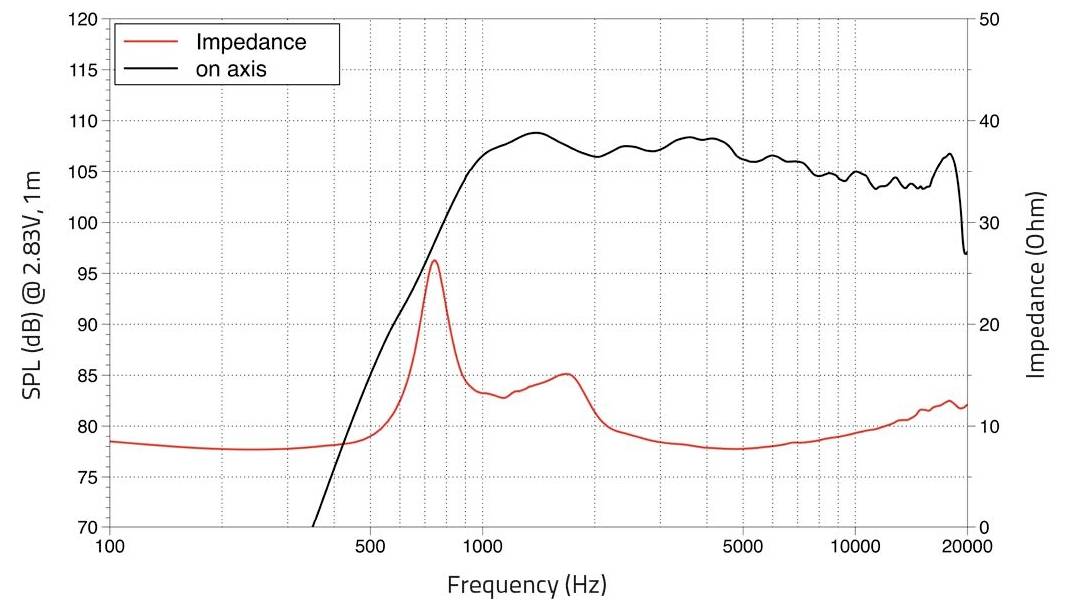

'Frequency response and impedance graph: Black line shows sound pressure level (dB) against frequency (Hz); red line shows impedance (Ohm).'

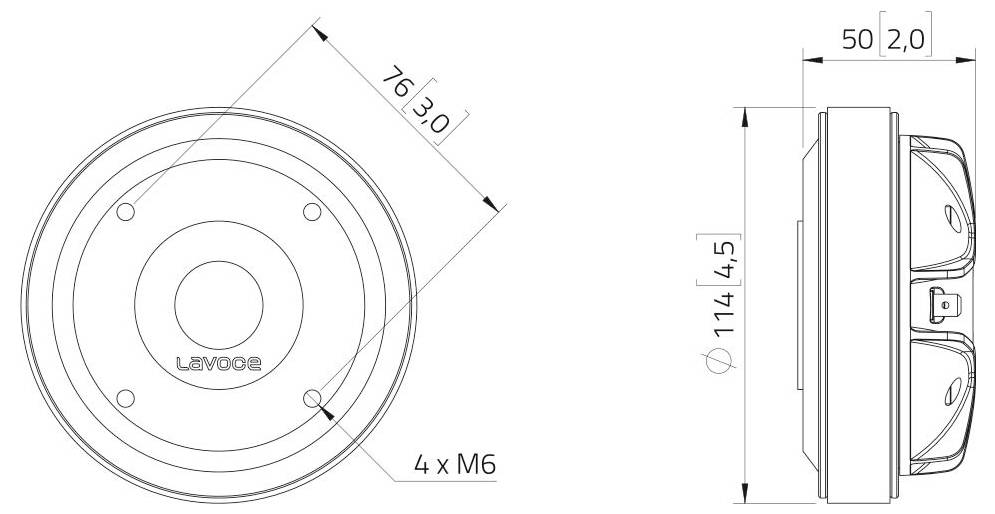

Technical diagram showing dimensions of a circular object. Front view diameter: 76mm. Side view height: 50mm. Includes 4 x M6 bolt holes.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polymide; 1.7" voice coil compression driver tweeter
Rating 60 W AES
Sensitivity 108.5 dB

Product type: Tweeter driver

Max. load: 60 W

Min. frequency: 1000 Hz

Max. frequency: 20000 Hz

Frequency range: 1000 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 1.70 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729672 Lavoce DF10.172K Tweeter driver 8 Ω

Description

60 W AES, 8 ohm, 108.5 dB, 1000 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
