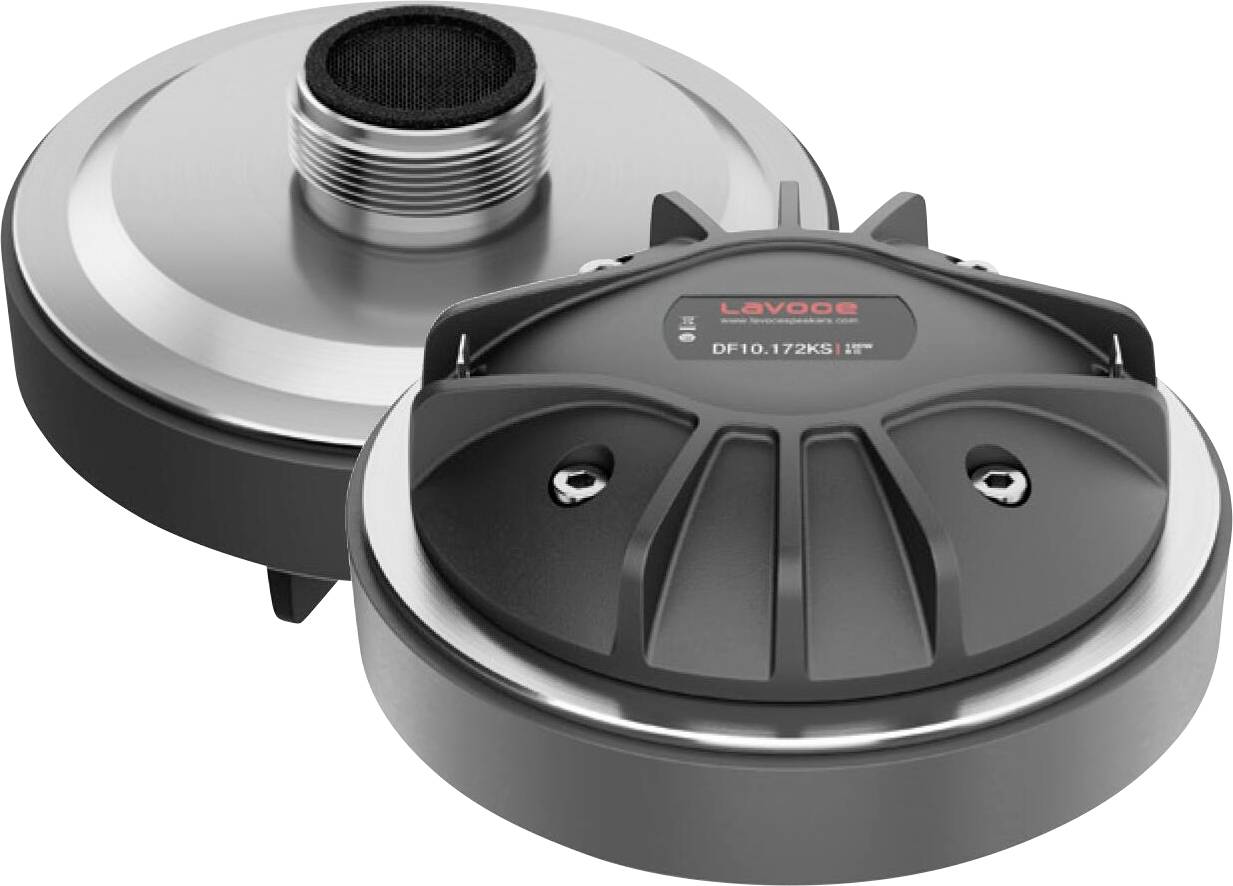

Two black and silver speaker components with a label reading 'LaVoce DF10.172K3'. The speakers show fine grooves and mounting points.

Two black and silver speaker components with a label reading 'LaVoce DF10.172K3'. The speakers show fine grooves and mounting points.

Graph showing speaker performance: Black line plots impedance (Ohm) vs frequency (Hz); red line plots SPL (dB) @ 2.83V, 1m vs frequency.

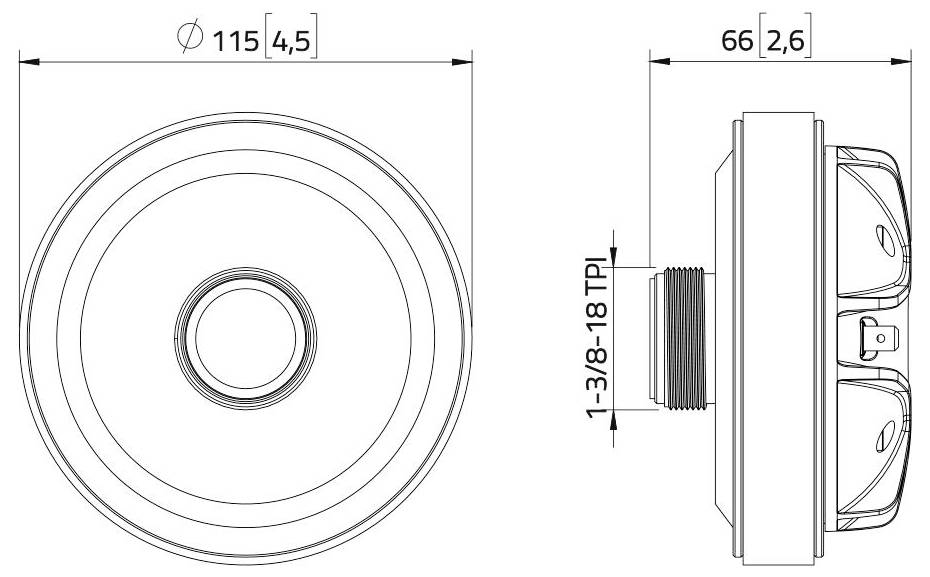

Technical drawing of a round sensor with dimensions: diameter 115mm, depth 66mm, and threaded connection sized 1-3/8-18 TPI.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polymide; 1.7" voice coil compression driver tweeter
Rating 60 W AES
Sensitivity 108.5 dB

Product type: Tweeter driver

Max. load: 60 W

Min. frequency: 1000 Hz

Max. frequency: 20000 Hz

Frequency range: 1000 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 1.76 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729616 Lavoce DF10.172KS Tweeter driver 8 Ω

Description

60 W AES, 8 ohm, 108.5 dB, 1000 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
