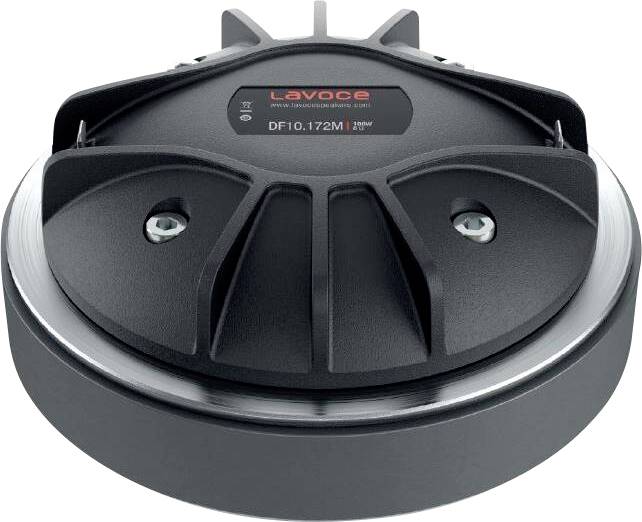

Loudspeaker driver labeled 'LaVoce DF10.172M 250W', displaying a circular, metallic design with a central cone and mounting components.

Loudspeaker driver labeled 'LaVoce DF10.172M 250W', displaying a circular, metallic design with a central cone and mounting components.

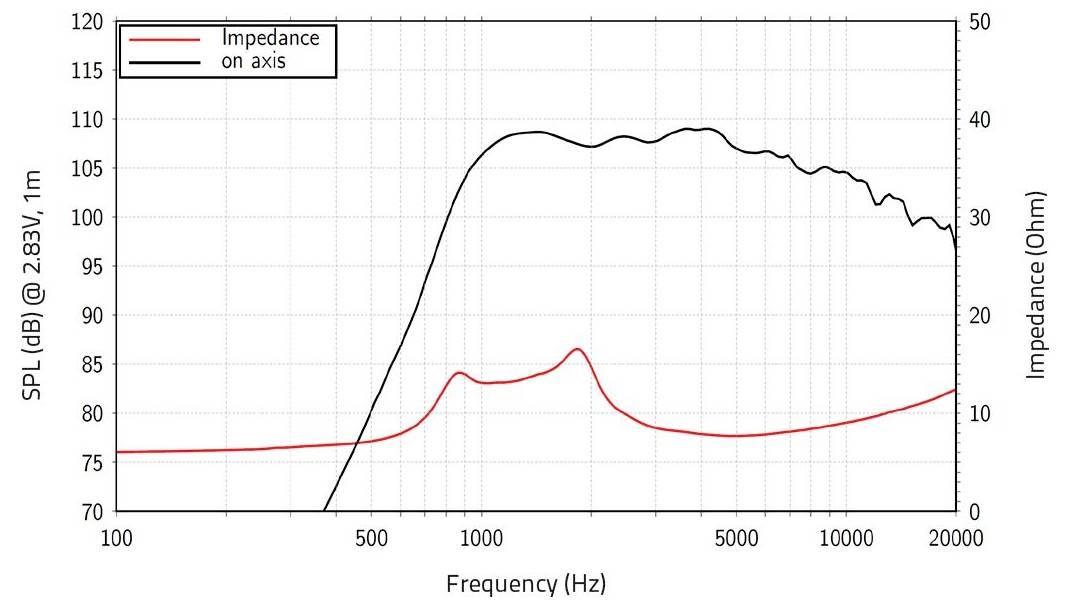

Graph showing speaker performance. Black line: SPL (dB) vs. Frequency (Hz) from 20 to 20,000; peaks around 3,000 Hz. Red line: Impedance (Ohm).

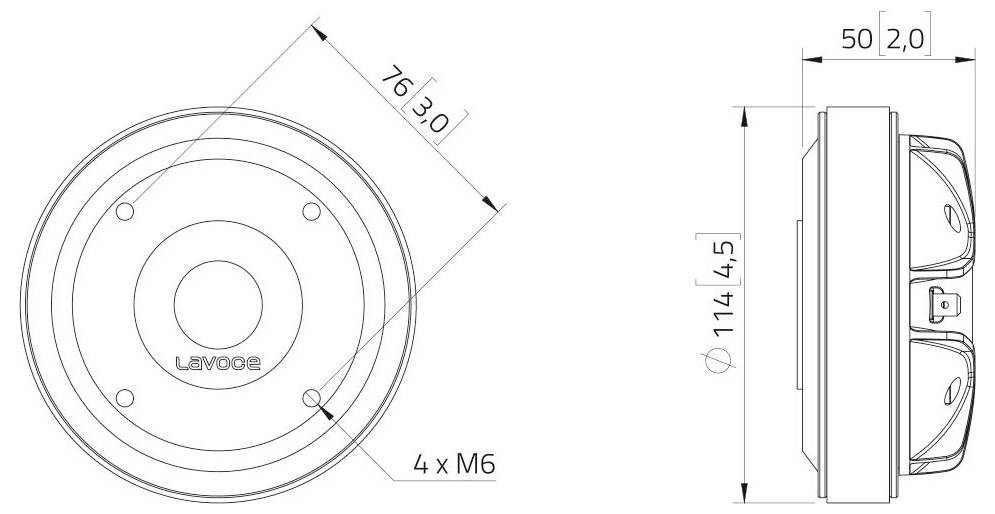

Technical drawing of a round device with dimensions: diameter 114 mm, height 50 mm. Includes details for mounting with 4 M6 screws.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with ferrite magnet; diaphragm material: Polyester; 1.7" moving coil compression driver tweeter
Rating 50 W AES
Sensitivity 108 dB

Product type: Tweeter driver

Max. load: 50 W

Min. frequency: 1000 Hz

Max. frequency: 20000 Hz

Frequency range: 1000 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 1.69 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729671 Lavoce DF10.172M Tweeter driver 8 Ω

Description

50 W AES, 8 ohm, 108 dB, 1000 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.
