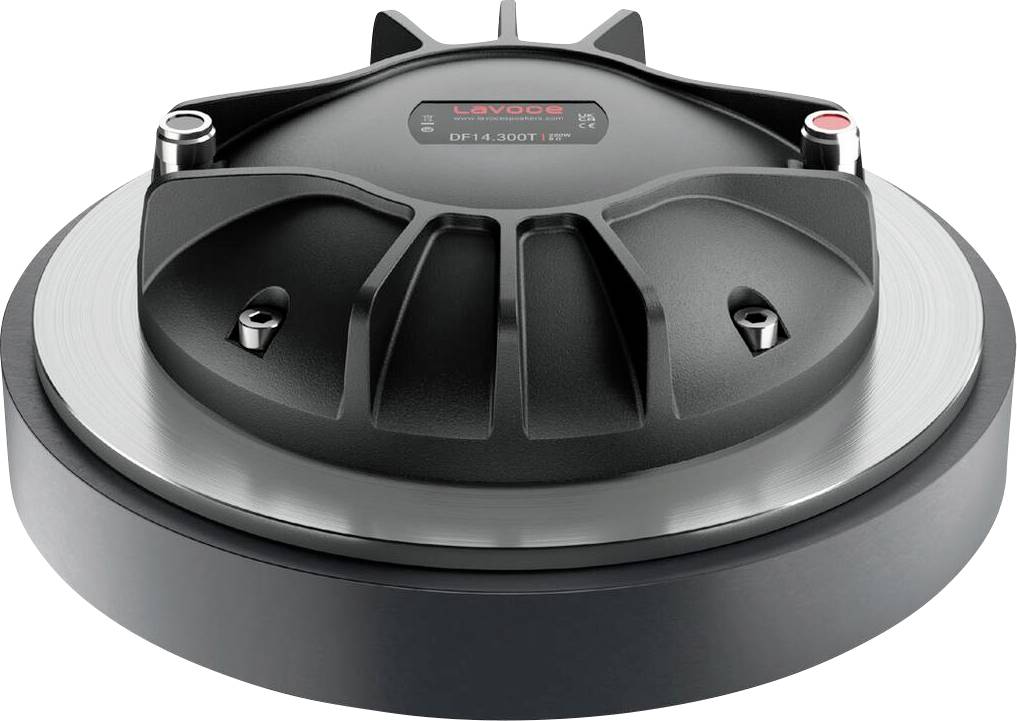

A round metal device with a black top, featuring a label 'Lavos DFX 4-1300T' in the center and two connectors on opposite sides.

A round metal device with a black top, featuring a label 'Lavos DFX 4-1300T' in the center and two connectors on opposite sides.

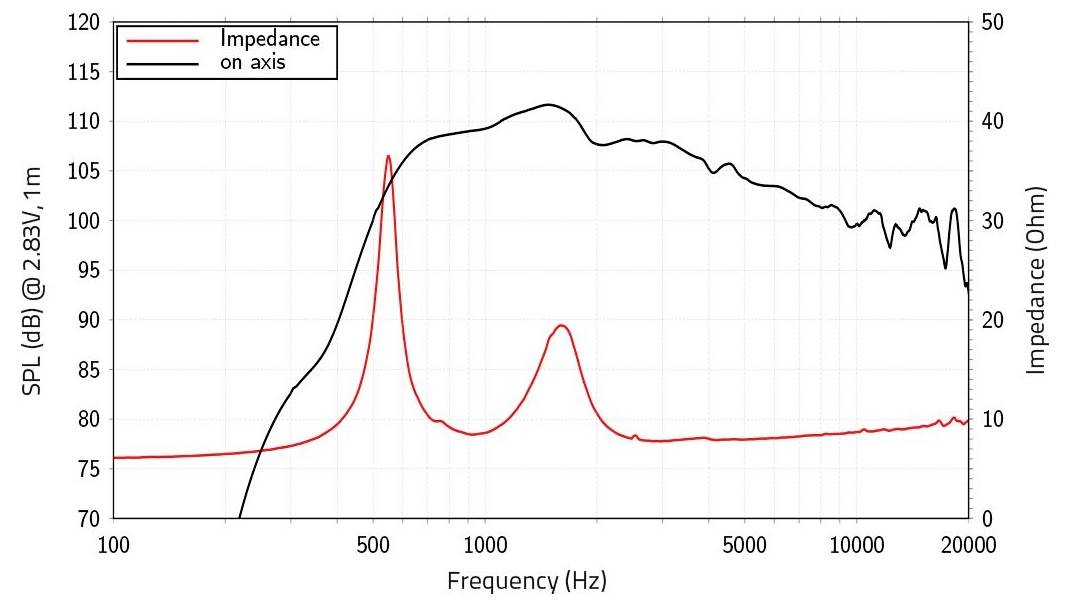

'Graph showing speaker's SPL and impedance from 20Hz to 20kHz. SPL peaks around 500Hz while impedance peaks near 50Hz and 1500Hz.'

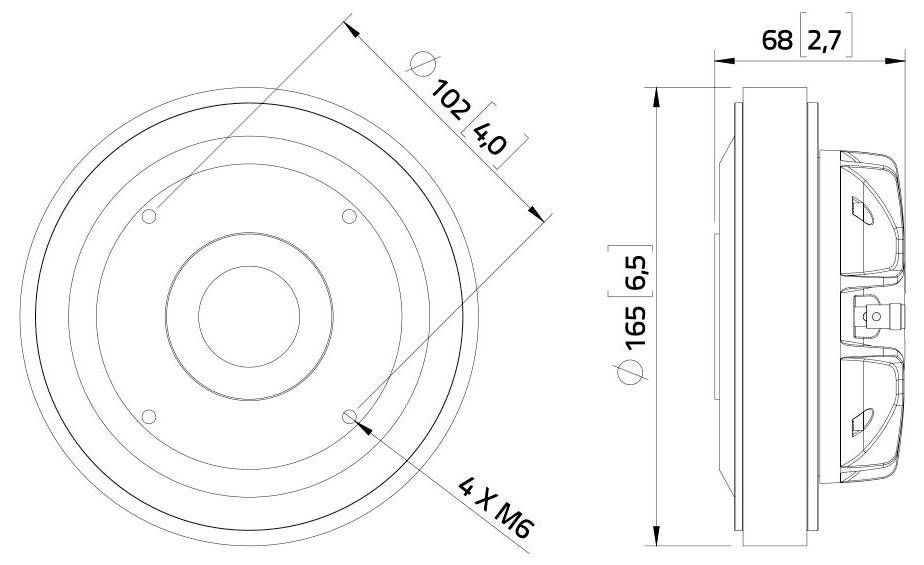

'Technical drawing of a circular speaker housing with dimensions labeled: 165 mm diameter, 68 mm depth, and mounting holes.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1.4" compression driver Tweeter with ferrite magnet; diaphragm material: Titanium; 3" voice coil compression driver tweeter
Rating 110 W AES
Sensitivity 107.5 dB

Product type: Tweeter driver

RMS capacity: 110 W

Max. load: 110 W

Min. frequency: 500 Hz

Max. frequency: 20000 Hz

Frequency range: 500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 4.05 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729621 Lavoce DF14.300T Tweeter driver RMS capacity=110 W 8 Ω

Description

110 W AES, 8 ohm, 107.5 dB, 500 - 20000 Hz

This text is machine translated.

Scope of delivery

1 x speaker
