'Graph showing frequency response and impedance: SPL (dB) peaking near 95 at 2000 Hz; Impedance (Ohm) peaking above 20 at 50 Hz.'

Diagram showing dimensions of a circular speaker mount: 165 mm diameter, 102 mm hole spacing, 6.5 mm depth, and 4 mount points.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

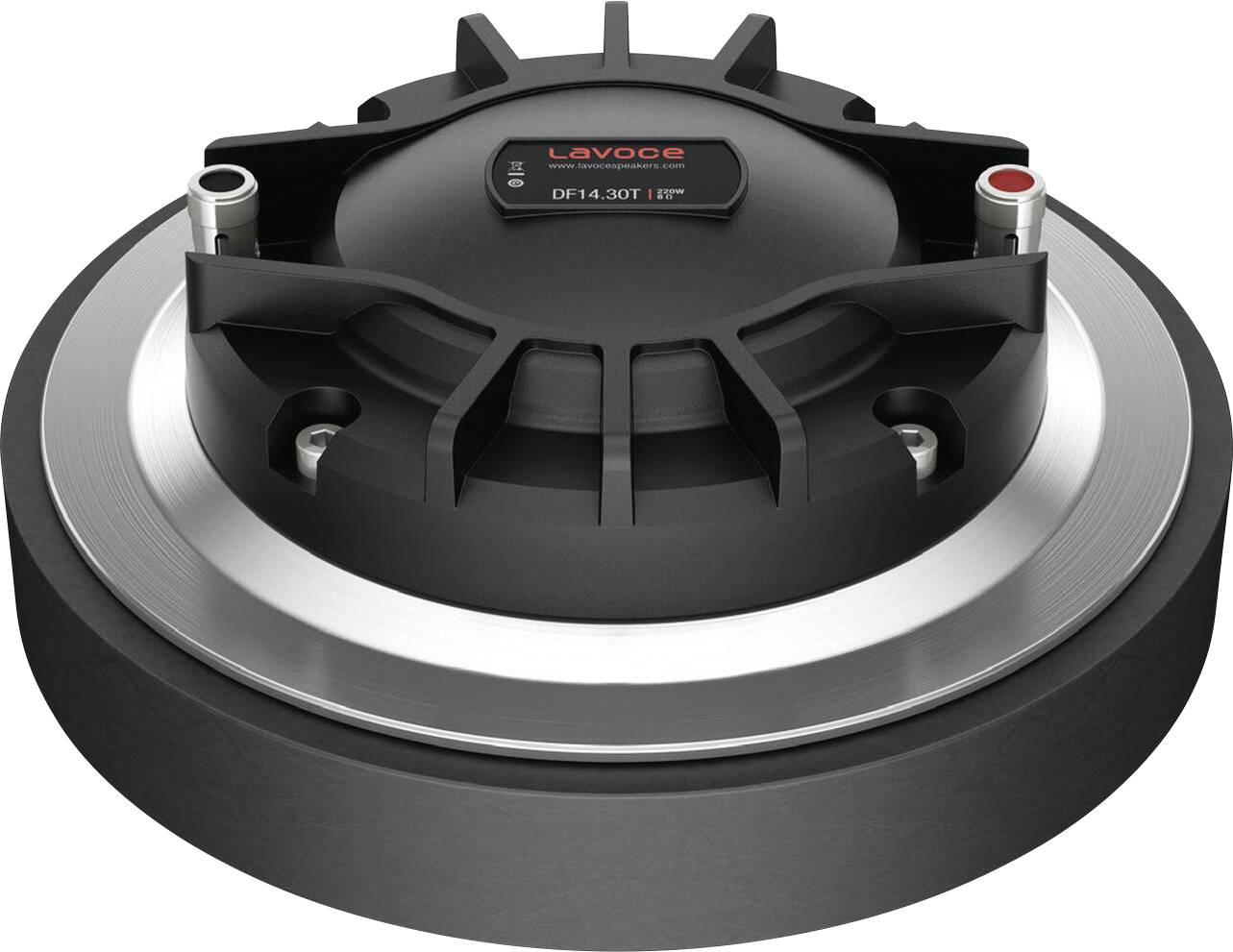

Loudspeaker: 1.4" compression driver Tweeter with ferrite magnet; diaphragm material: Titanium; 3" voice coil compression driver tweeter
Rating 110 W AES
Sensitivity 107.5 dB

Product type: Tweeter driver

Max. load: 110 W

Min. frequency: 500 Hz

Max. frequency: 18000 Hz

Frequency range: 500 Hz - 18000 Hz

Impedance: 8 Ω

Weight: 4.19 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729611 Lavoce DF14.30T Tweeter driver 8 Ω

Description

110 W AES, 8 ohm, 107.5 dB, 500 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
