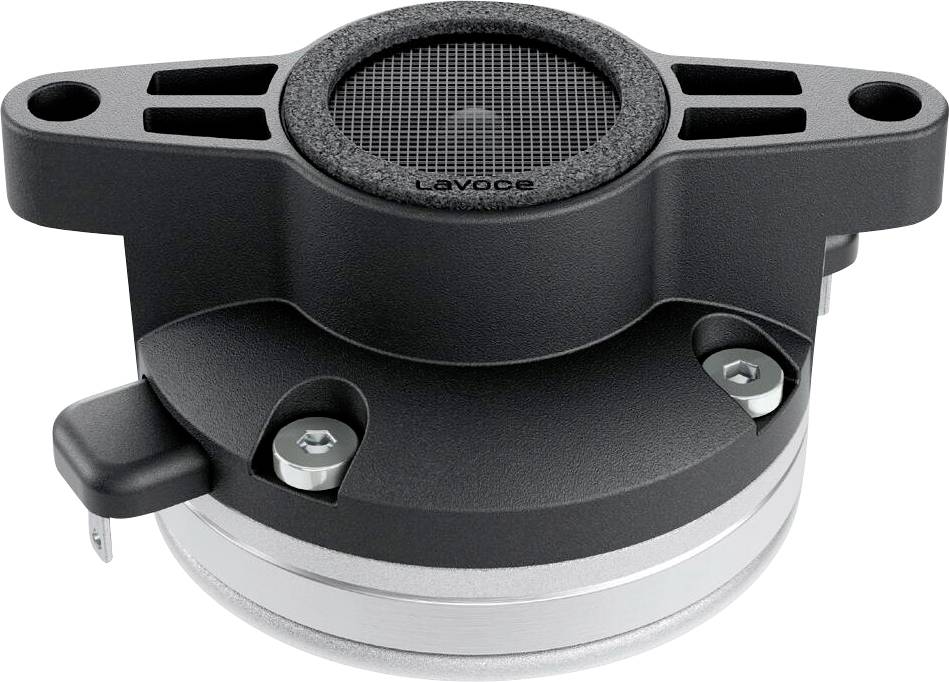

Close-up image of a LavOce audio speaker driver with a circular mesh cover, two mounting holes, and a compact design.

Close-up image of a LavOce audio speaker driver with a circular mesh cover, two mounting holes, and a compact design.

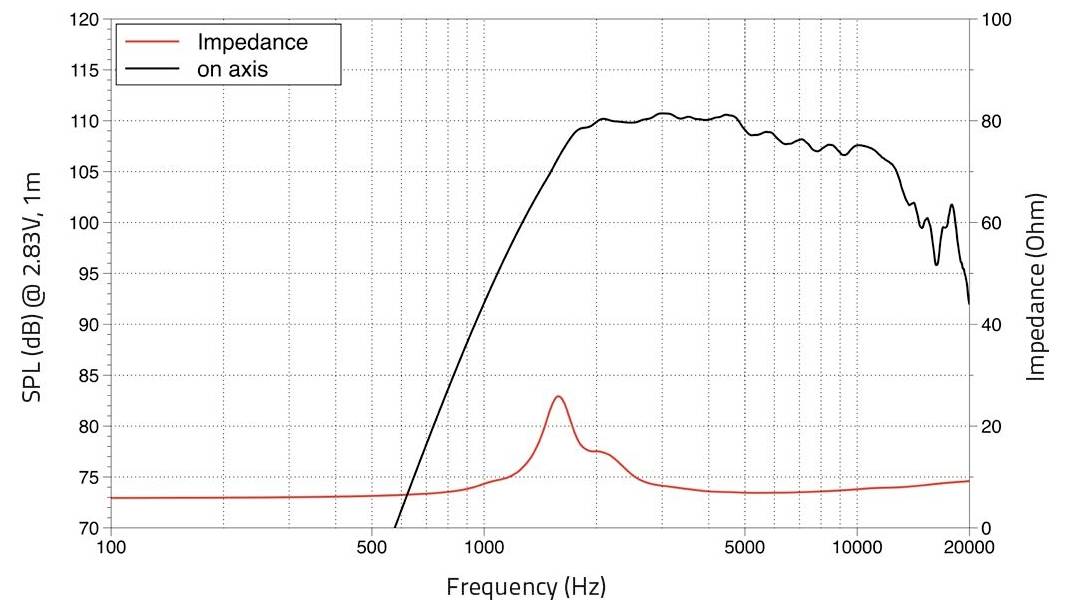

'Frequency response chart showing sound pressure level (dB) and impedance (Ohm) from 20Hz to 20kHz. Peak at 4kHz and dip at 1kHz.'

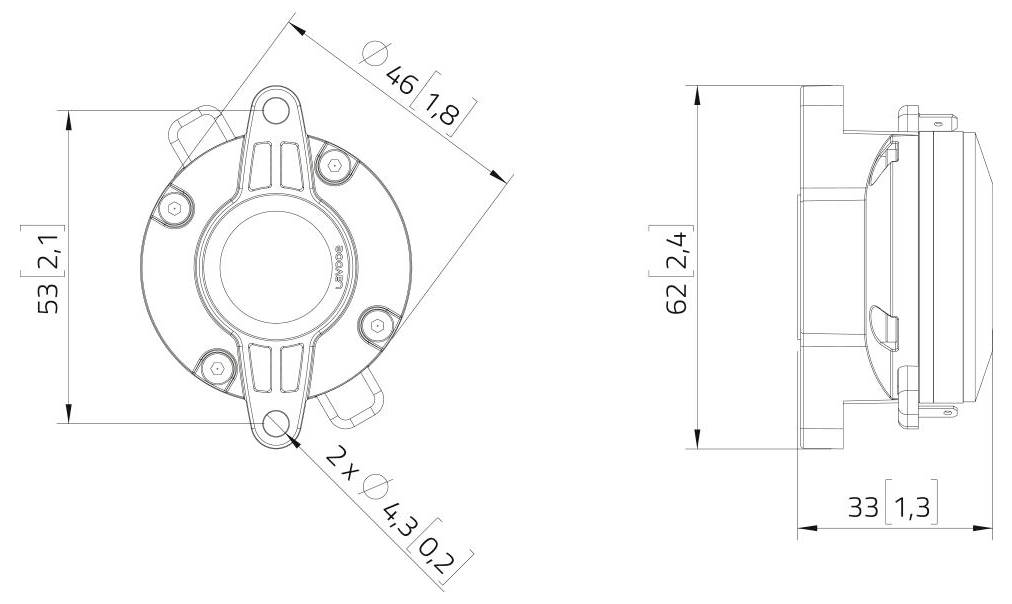

Detailed technical drawing shows dimensions and views of a mechanical part, including diameters, lengths, and widths in millimeters.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 0.75" compression driver Tweeter with neodymium magnet; junction material: Polyester; 1" moving coil compression driver tweeter
Rating 10 W AES
Sensitivity 109 dB

Product type: Tweeter driver

Max. load: 10 W

Min. frequency: 2000 Hz

Max. frequency: 18000 Hz

Frequency range: 2000 Hz - 18000 Hz

Impedance: 8 Ω

Weight: 0.15 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729626 Lavoce DN07.10LM Tweeter driver 8 Ω

Description

10 W AES, 8 ohm, 109 dB, 2000 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
