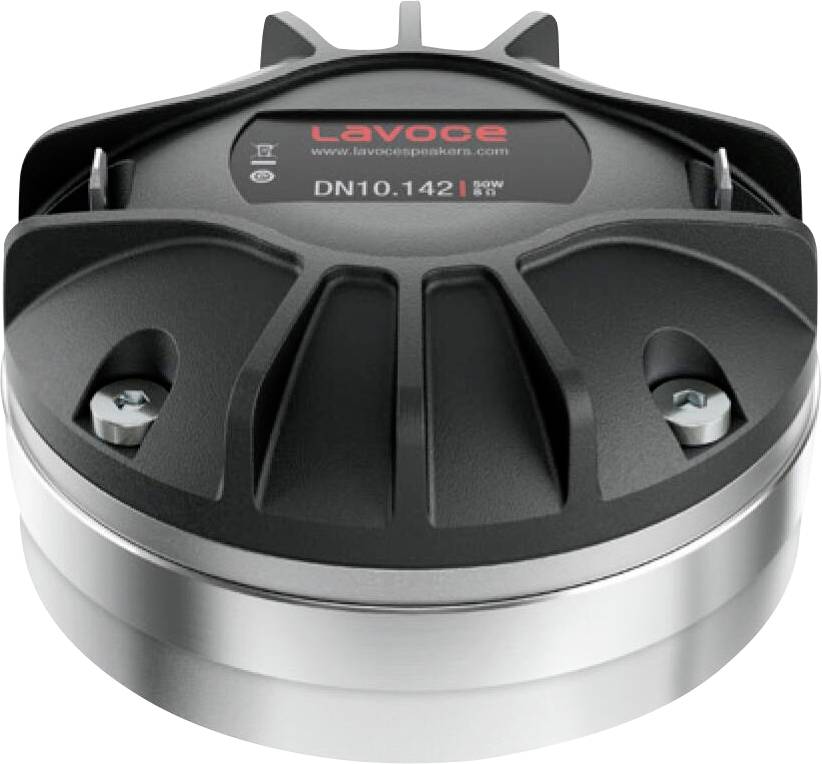

'LaVoce DN10.142' compression driver, 100W, 8Ω, with a metal and plastic exterior, designed for high-quality audio output in speaker systems.

'LaVoce DN10.142' compression driver, 100W, 8Ω, with a metal and plastic exterior, designed for high-quality audio output in speaker systems.

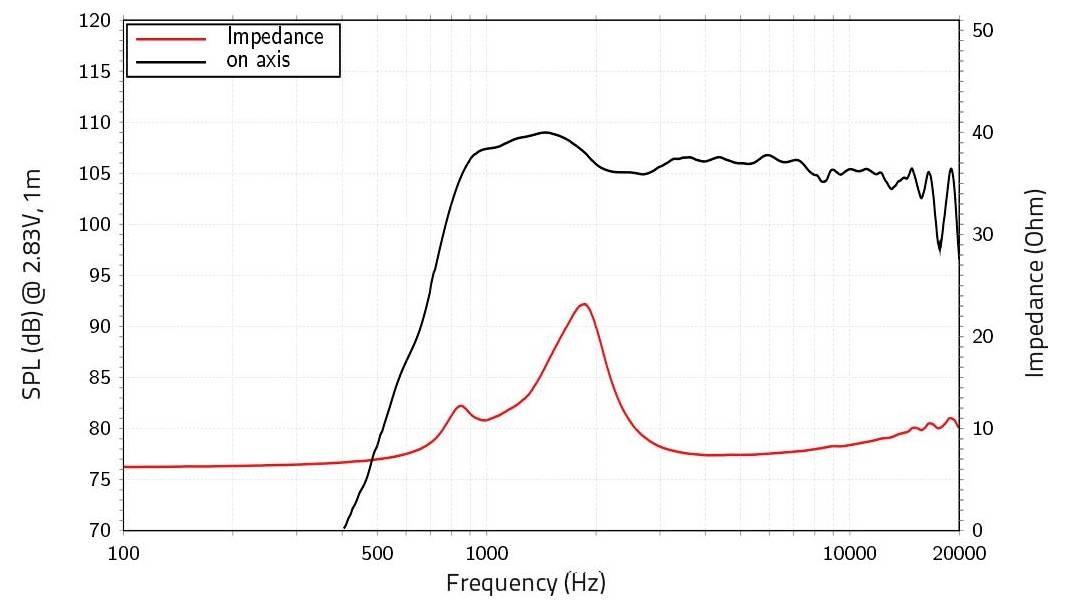

Graph showing speaker performance: Black line depicts sound pressure level peaking at 100 dB around 1 kHz. Red line shows impedance, peaking near 120 Hz.

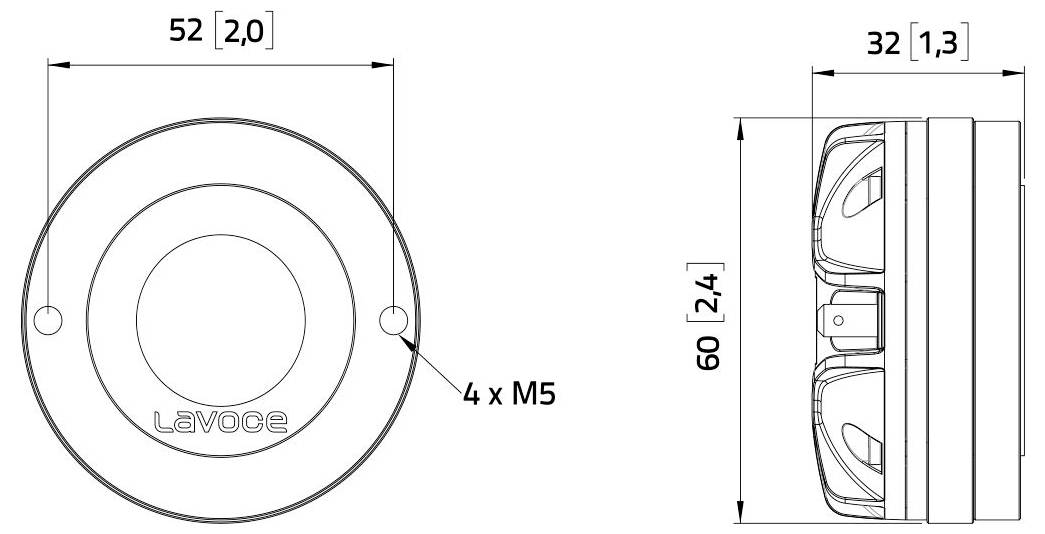

Technical drawing of a circular device with mounting points. Front view: labeled '4 x M5.' Side view: dimensions 32mm depth, 60mm height.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with neodymium magnet; junction material: PEEK (H.T. Polymer); 1.4" voice coil compression driver tweeter
Rating 25 W AES
Sensitivity 107 dB

Product type: Tweeter driver

Max. load: 25 W

Min. frequency: 1000 Hz

Max. frequency: 18000 Hz

Frequency range: 1000 Hz - 18000 Hz

Impedance: 8 Ω

Weight: 0.32 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729637 Lavoce DN10.142 Tweeter driver 8 Ω

Description

25 W AES, 8 ohm, 107 dB, 1000 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
