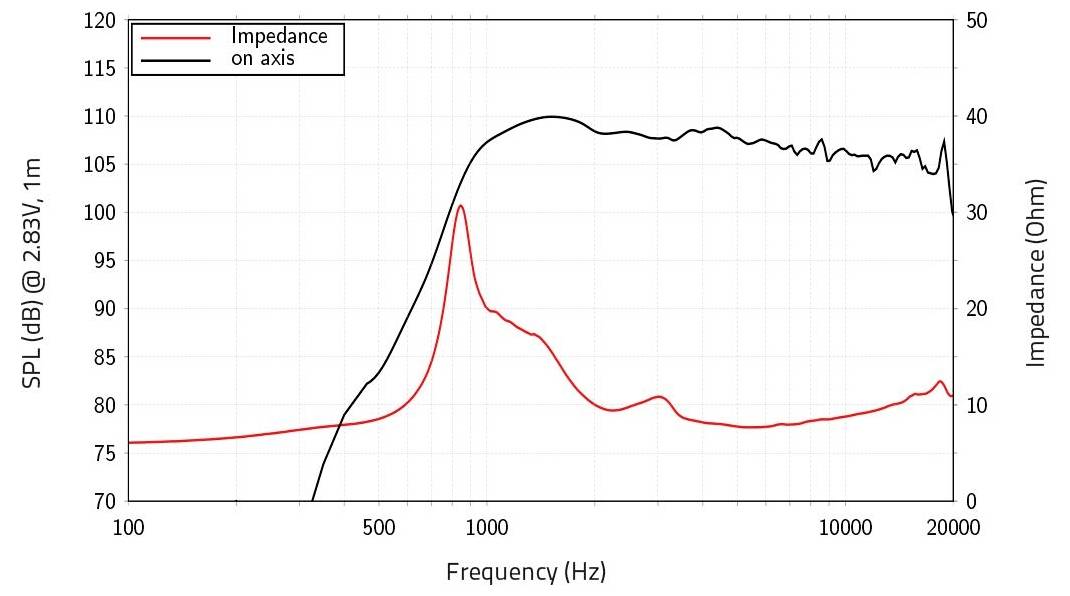

'Graph showing SPL (dB) and Impedance (Ohm) vs Frequency (Hz). SPL peaks at 500 Hz and decreases; impedance peaks around 800 Hz.'

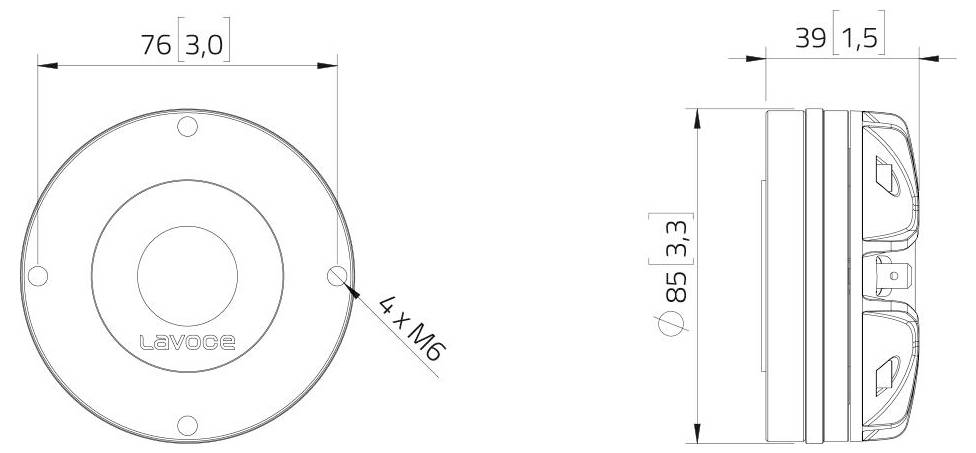

Mechanical diagram showing top and side views of a circular component with dimensions labeled as 76 and 39 units in one direction, 85 units in the other, and '4 x M6' indicating bolt holes.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with neodymium magnet; junction material: PEEK (H.T. Polymer); 1.7" voice coil compression driver tweeter
Rating 55 W AES
Sensitivity 110 dB

Product type: Tweeter driver

Max. load: 55 W

Min. frequency: 1200 Hz

Max. frequency: 18000 Hz

Frequency range: 1200 Hz - 18000 Hz

Impedance: 8 Ω

Weight: 0.87 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729638 Lavoce DN10.172K Tweeter driver 8 Ω

Description

55 W AES, 8 ohm, 110 dB, 1200 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
