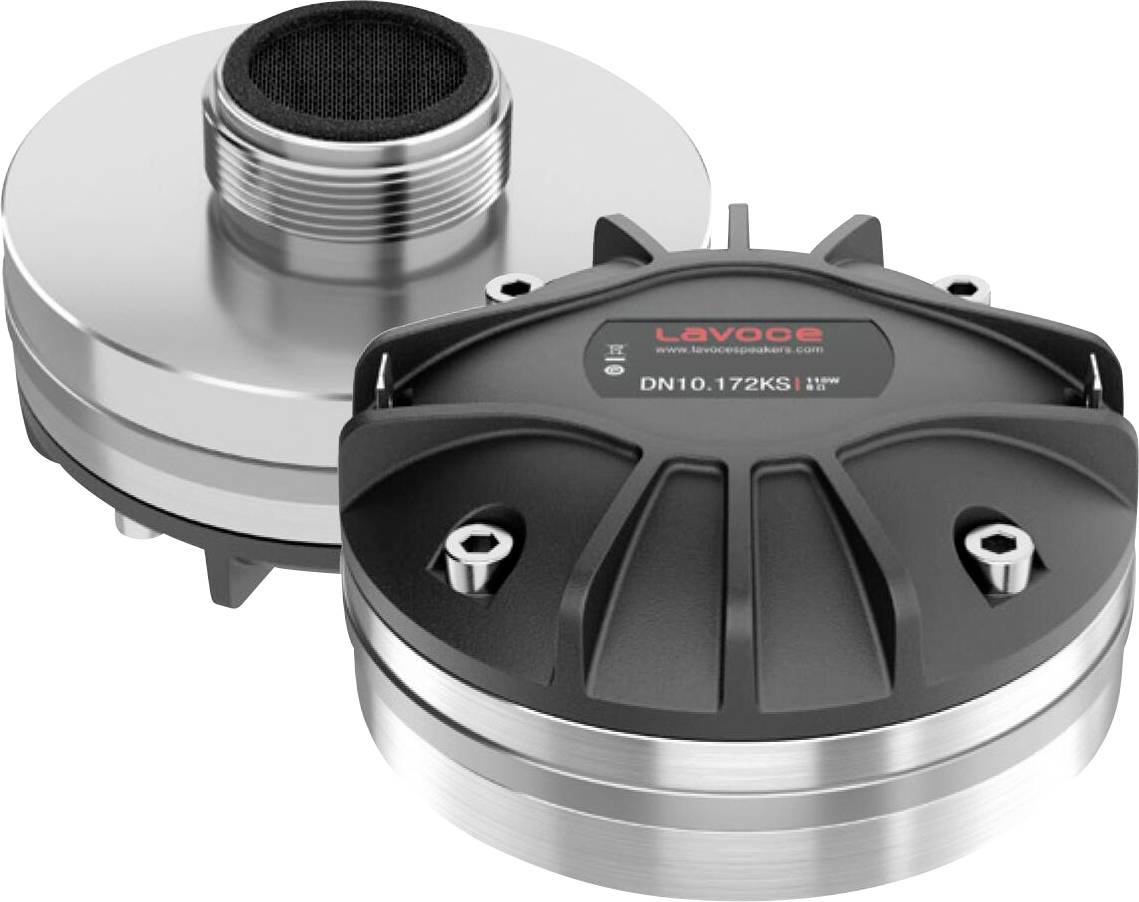

Two circular, industrial steel and black components are shown, featuring a textured metal finish and labeled 'Lavoe' on the top.

Two circular, industrial steel and black components are shown, featuring a textured metal finish and labeled 'Lavoe' on the top.

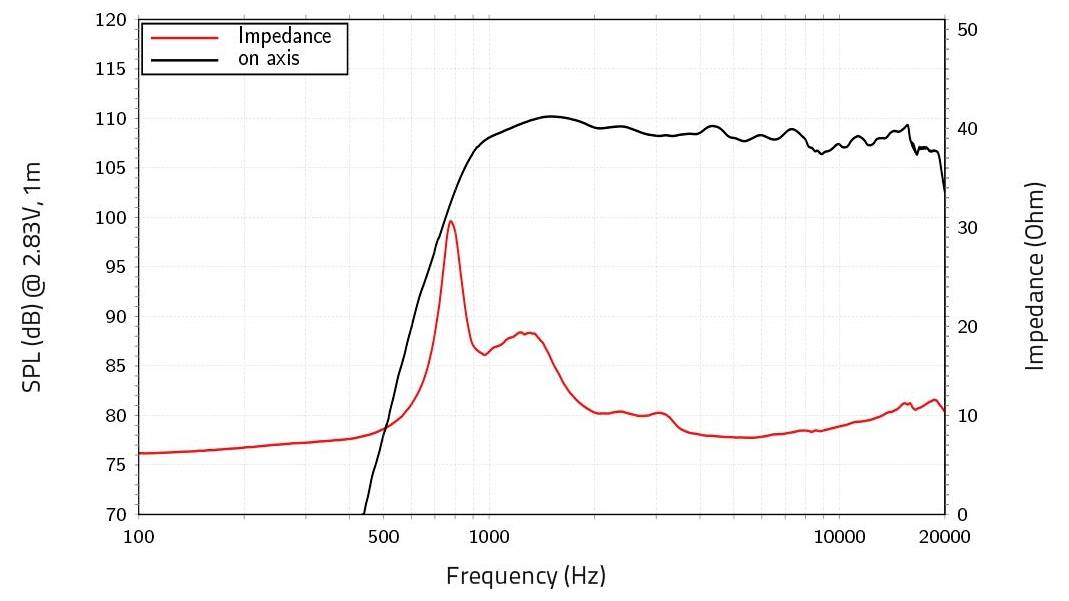

'Graph showing SPL and impedance vs frequency. SPL starts at 80dB and peaks at 110dB, impedance at 5 Ohm, peaks at 40 Ohm around 1000Hz.'

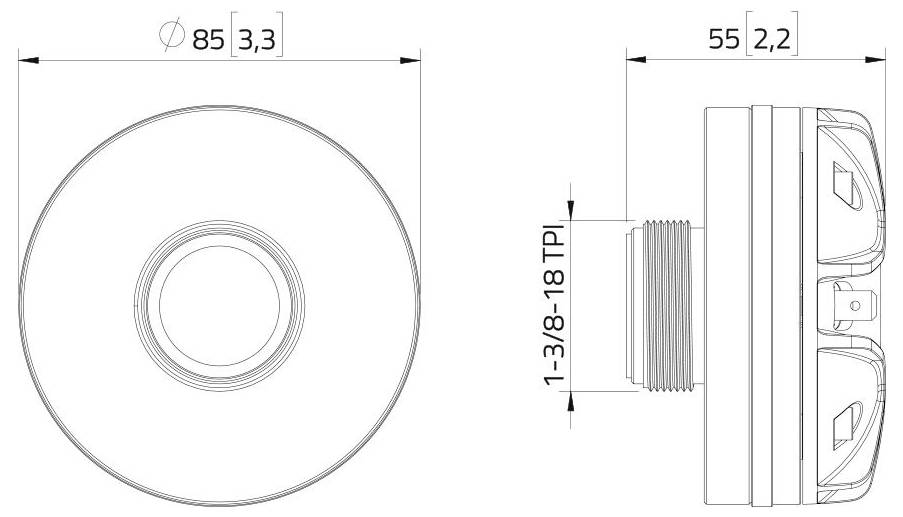

'Technical drawing of a cylindrical component: diameter 85 mm, height 55 mm with threading labeled 1-3/8-18 TPI.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with neodymium magnet; junction material: Polymide; 1.7" moving coil compression driver tweeter
RMS. Power 55 W
Sensitivity 110 dB

Product type: Tweeter driver

RMS capacity: 55 W

Min. frequency: 1200 Hz

Max. frequency: 20000 Hz

Frequency range: 1200 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 0.94 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729628 Lavoce DN10.172KS Tweeter driver RMS capacity=55 W 8 Ω

Description

55 W RMS, 8 ohm, 110 dB, 1200 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
