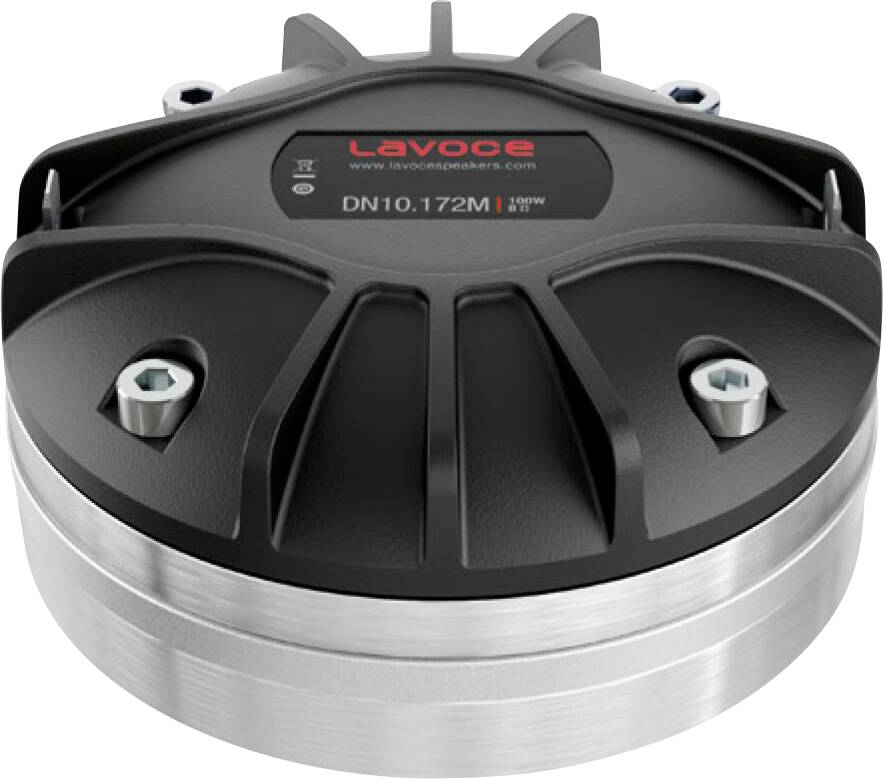

A circular black speaker driver with a metallic edge, showing the label 'Lavoce DN10.172M'.

A circular black speaker driver with a metallic edge, showing the label 'Lavoce DN10.172M'.

Line graph showing 'SPL (dB) @ 2.83V, 1m' versus 'Frequency (Hz)'. Black line represents impedance; red line shows on-axis frequency response.

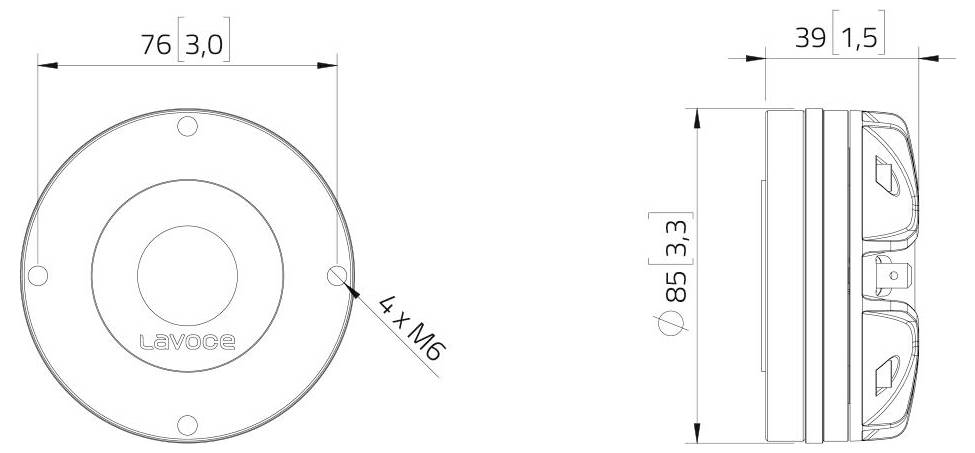

Technical drawing of a circular object with dimensions: diameter 76 mm, height 85 mm, marked 'Levage', side view showing 39 mm width and 4 M6 bolts.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1" compression driver Tweeter with neodymium magnet; junction material: Polyester; 1.7" moving coil compression driver tweeter
Rating 50 W AES
Sensitivity 109 dB

Product type: Tweeter driver

Max. load: 50 W

Min. frequency: 1200 Hz

Max. frequency: 20000 Hz

Frequency range: 1200 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 0.88 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729629 Lavoce DN10.172M Tweeter driver 8 Ω

Description

50 W AES, 8 ohm, 109 dB, 1200 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
