A circular speaker component labeled 'LaVoce DN14.25T 250W' with a black textured surface and metal connectors on the sides.

A circular speaker component labeled 'LaVoce DN14.25T 250W' with a black textured surface and metal connectors on the sides.

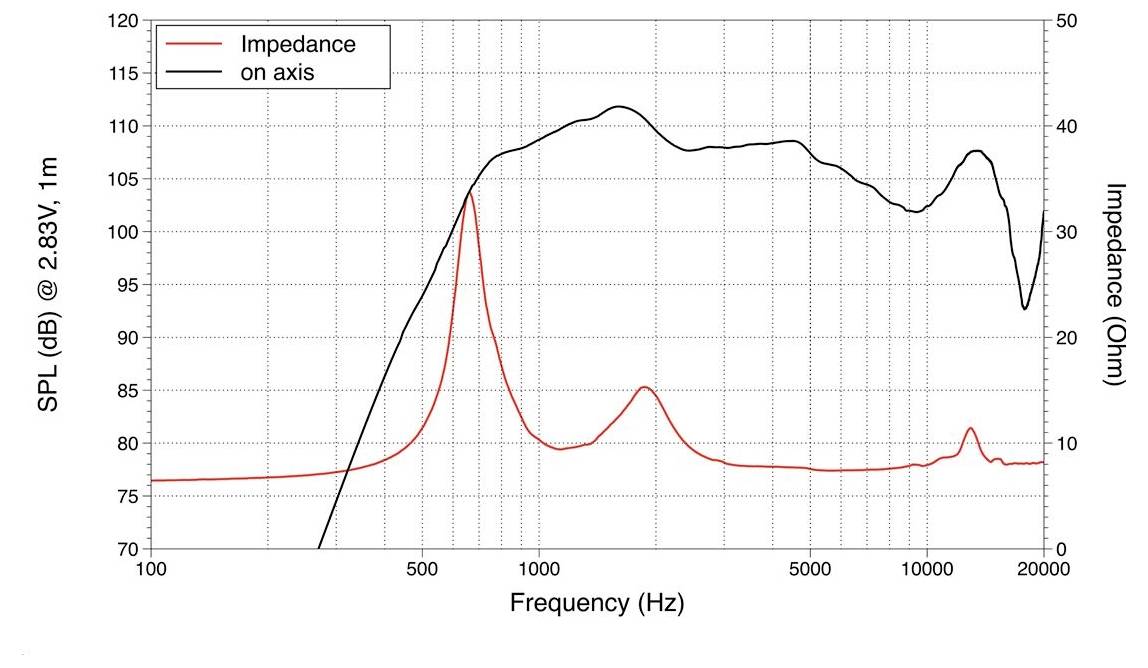

Graph comparing 'SPL (dB) @ 2.83V, 1m' against 'Frequency (Hz)'. Shows trends for impedance in red and response on axis in black.

'Technical drawing of LSV002 rotor brake with dimensions: diameter 102mm, height 46mm, and depth 47mm. Four M6 mounting holes.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1.4" compression driver Tweeter with neodymium magnet; junction material: Titanium; 2.5" moving coil compression driver tweeter
Rating 80 W AES
Sensitivity 108 dB

Product type: Tweeter driver

Max. load: 80 W

Min. frequency: 1000 Hz

Max. frequency: 18000 Hz

Frequency range: 1000 Hz - 18000 Hz

Impedance: 16 Ω

Weight: 1.27 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729673 Lavoce DN14.25T-16 Tweeter driver 16 Ω

Description

80 W AES, 16 ohm, 108 dB, 1000 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
