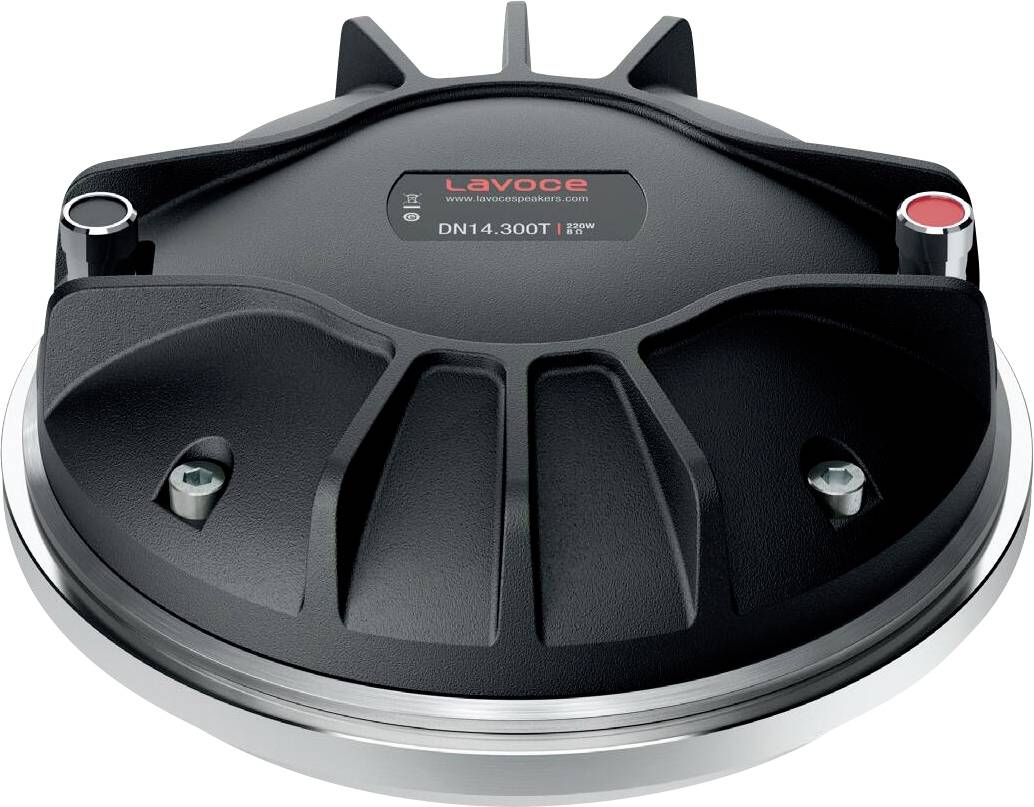

'A Lavoce speaker component with a black, round design, visible mounting screws, and a red connector.'

'A Lavoce speaker component with a black, round design, visible mounting screws, and a red connector.'

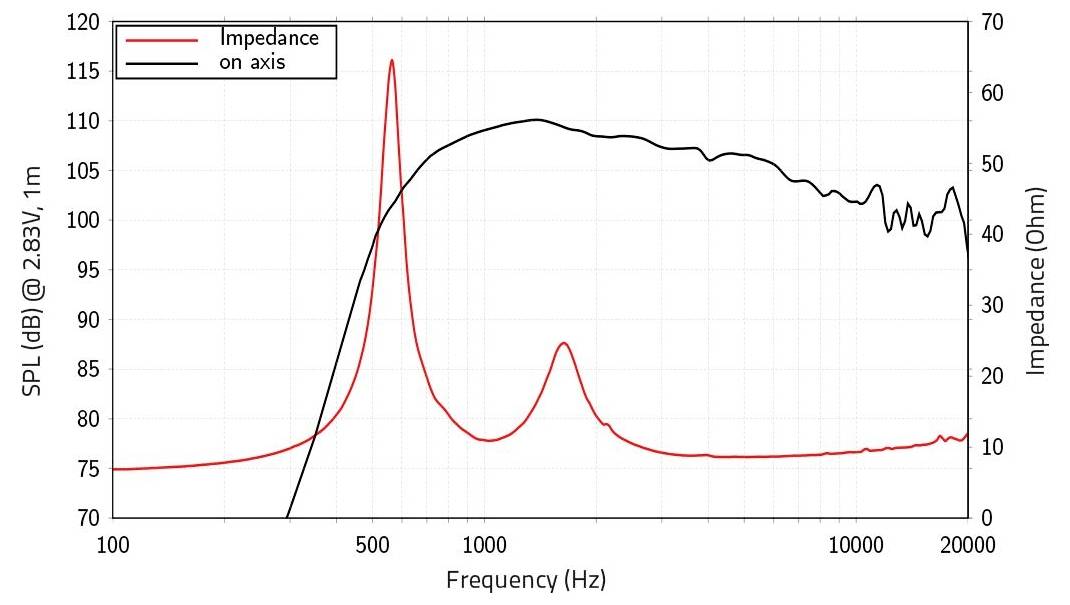

Graph showing SPL and impedance vs. frequency (Hz). SPL (red line) peaks at 500 Hz, then dips. Impedance (black line) starts high and gradually decreases.

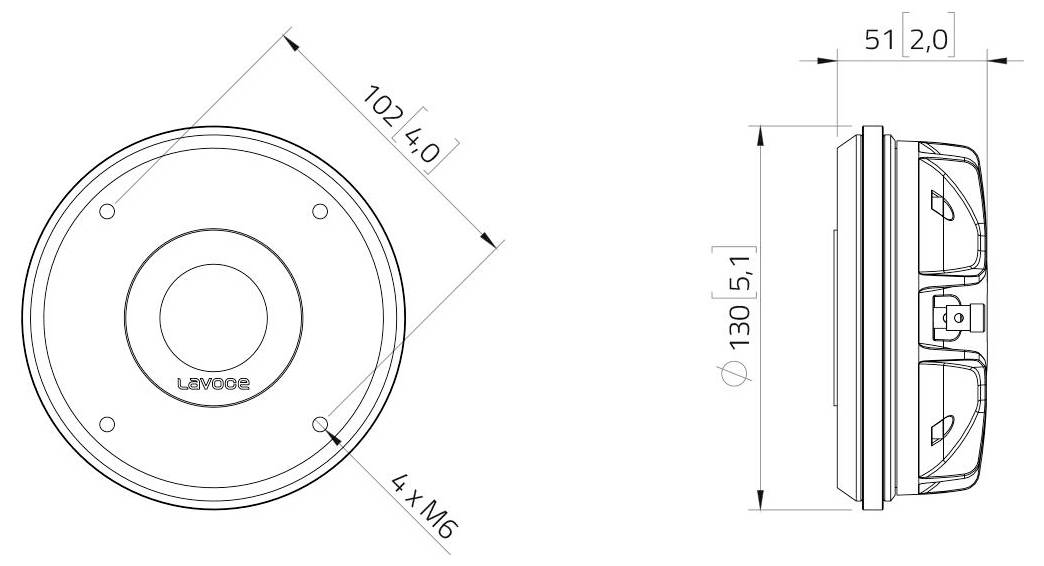

'Circular device technical drawing with front and side views, including dimensions: diameter 130mm, depth 51.2mm, marked 4xM6 screws.'

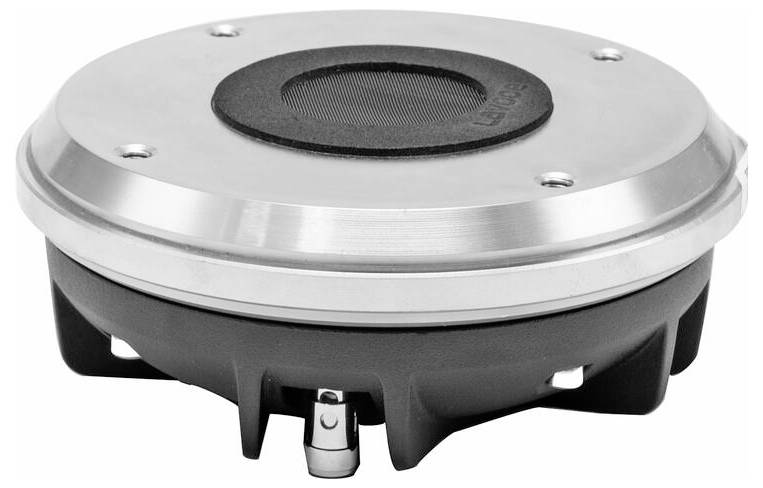

A round, metallic audio driver with a black central diaphragm, used in loudspeakers. It has four mounting holes and a sleek design.

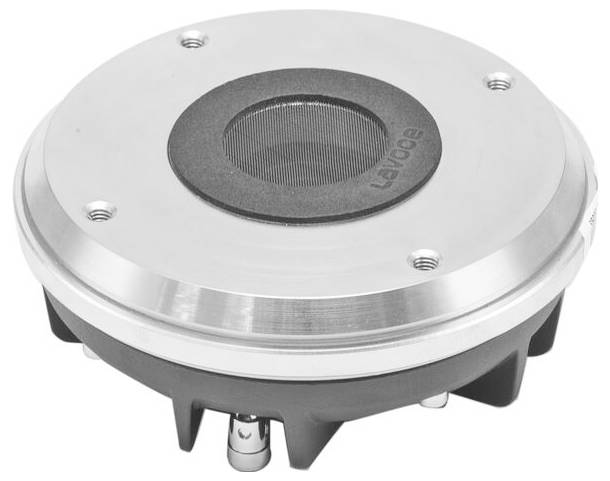

A round metal audio component with a mesh-covered black center, used in speaker systems for sound output.

1/5

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1.4" compression driver Tweeter with neodymium magnet; junction material: Titanium; 3" moving coil compression driver tweeter
Rating 110 W AES
Sensitivity 109 dB

Product type: Tweeter driver

Max. load: 110 W

Min. frequency: 500 Hz

Max. frequency: 20000 Hz

Frequency range: 500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 1.42 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729627 Lavoce DN14.300T Tweeter driver 8 Ω

Description

110 W AES, 8 ohm, 109 dB, 500 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
