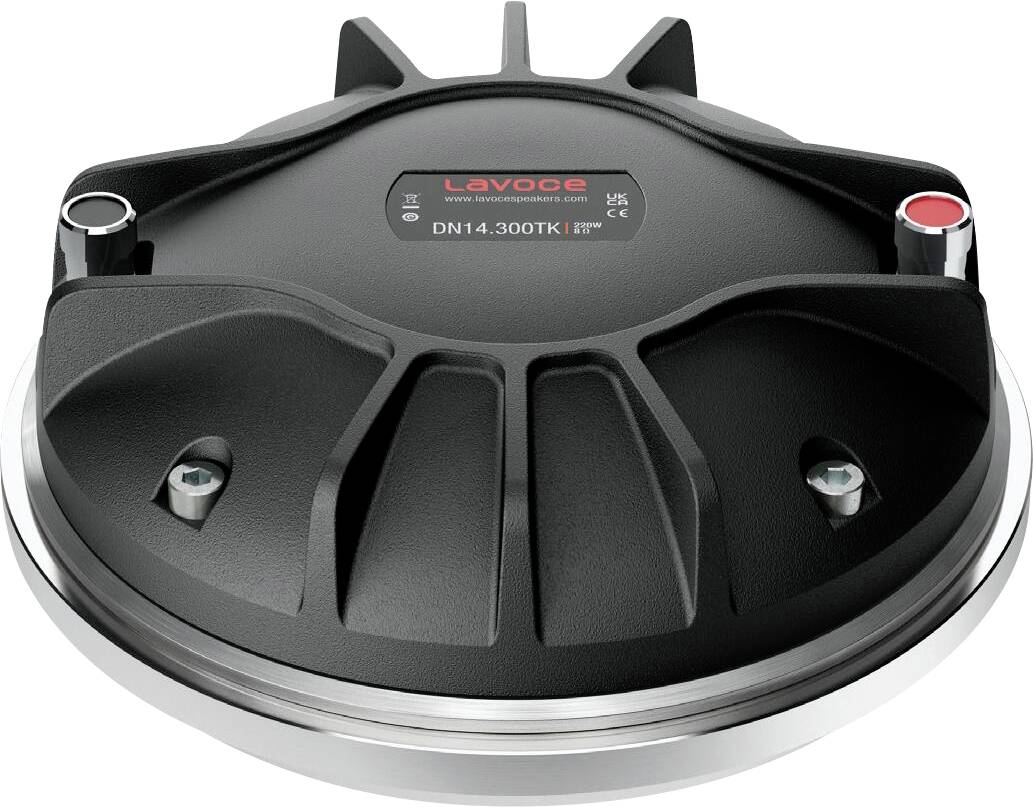

The image shows a black 'Lavoce' branded speaker driver, model DN14.300TK, with connectors on the top.

The image shows a black 'Lavoce' branded speaker driver, model DN14.300TK, with connectors on the top.

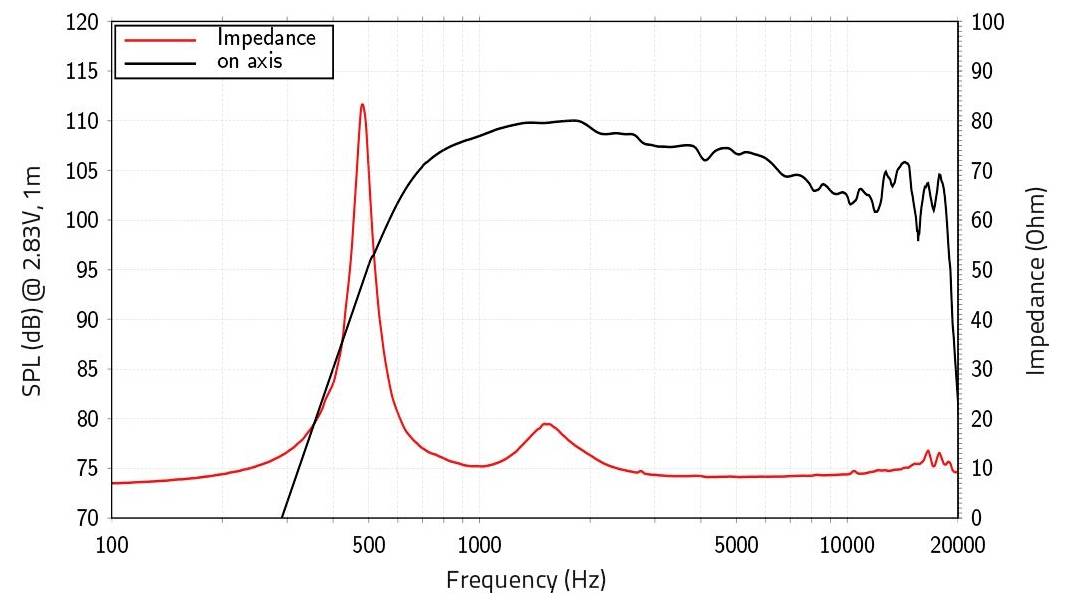

Graph showing 'SPL (dB) @ 2.83V, 1m' against 'Frequency (Hz).' Red line indicates impedance, black shows on-axis response. Key peaks: ~350 Hz, ~20 kHz.

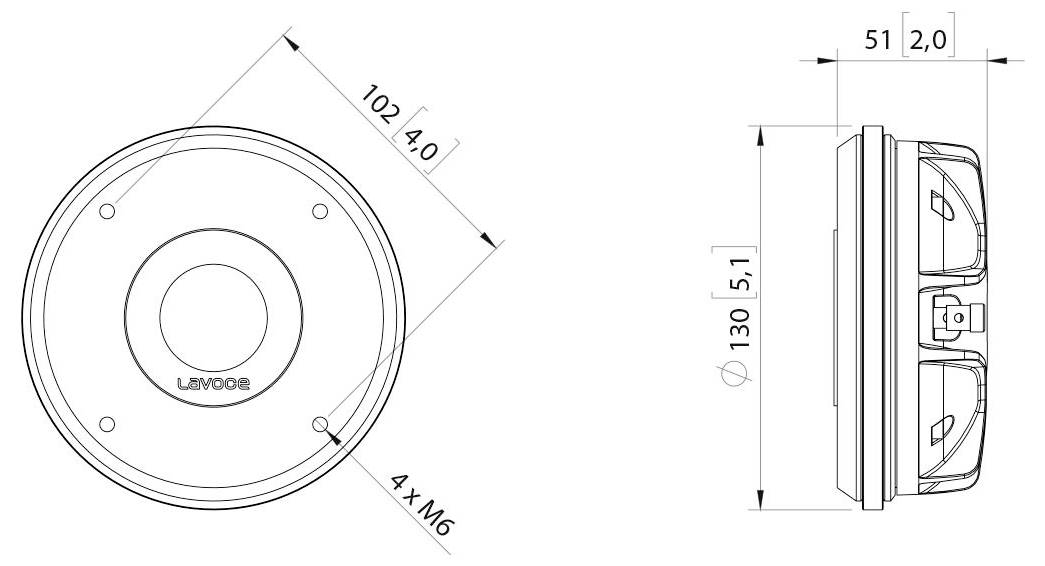

'Technical drawing of a circular device labeled LUMOOS, with dimensions: 102 mm diameter, 130 mm side width, 51 mm thickness, and 4x M6 screw holes.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1.4" compression driver Tweeter with neodymium magnet; junction material: Titanium; 3" moving coil compression driver tweeter
Rating 110 W AES
Sensitivity 109 dB

Product type: Tweeter driver

Max. load: 110 W

Min. frequency: 500 Hz

Max. frequency: 20000 Hz

Frequency range: 500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 2.00 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729641 Lavoce DN14.300TK Tweeter driver 8 Ω

Description

110 W AES, 8 ohm, 109 dB, 500 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
