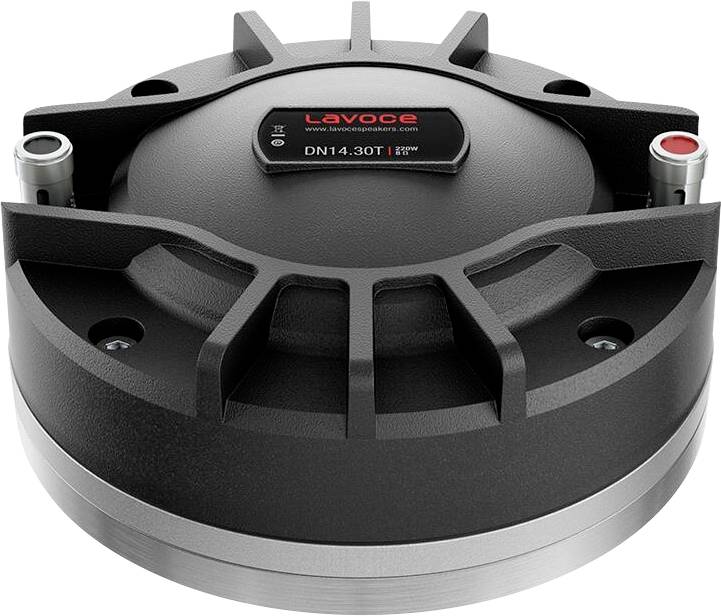

A black and silver speaker driver with a top label displaying 'Lavoce DN14.30T'. The structure has fin-like protrusions and red connectors.

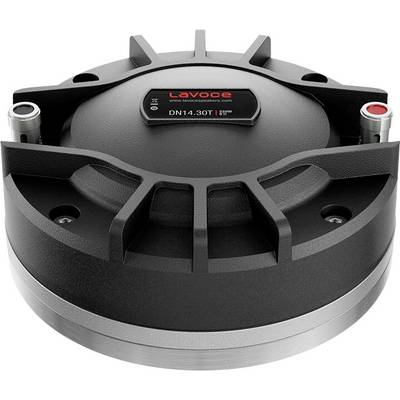

A black and silver speaker driver with a top label displaying 'Lavoce DN14.30T'. The structure has fin-like protrusions and red connectors.

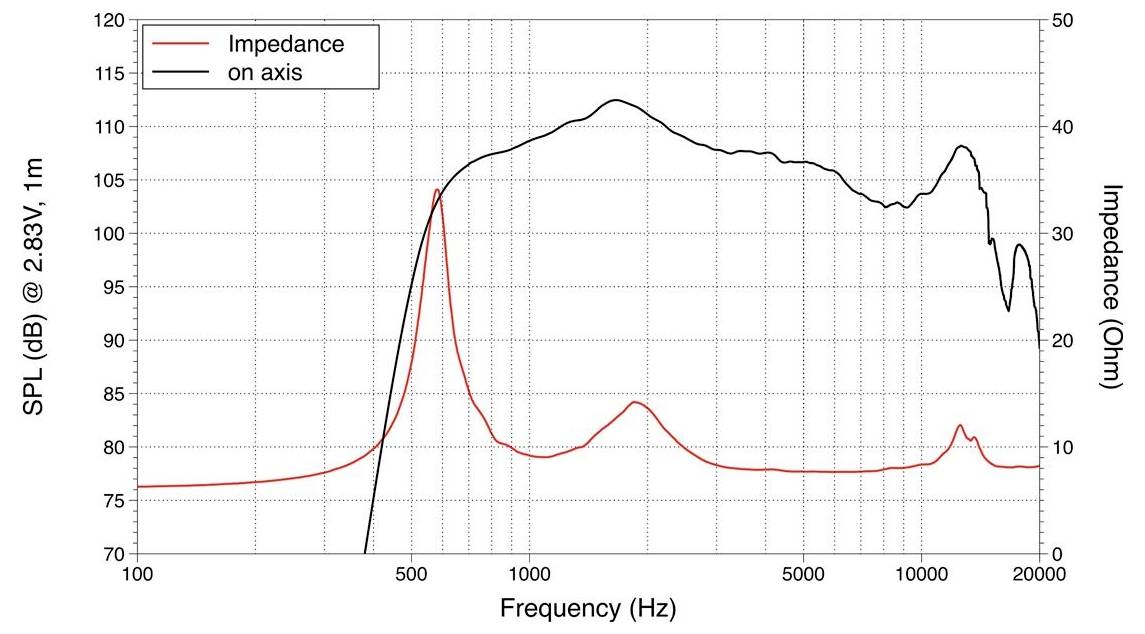

Graph showing speaker response: Black line represents on-axis sound pressure level (SPL) in dB, and red line shows impedance in Ohms across frequencies (Hz). Peak SPL near 1kHz; impedance peaks around 100Hz.

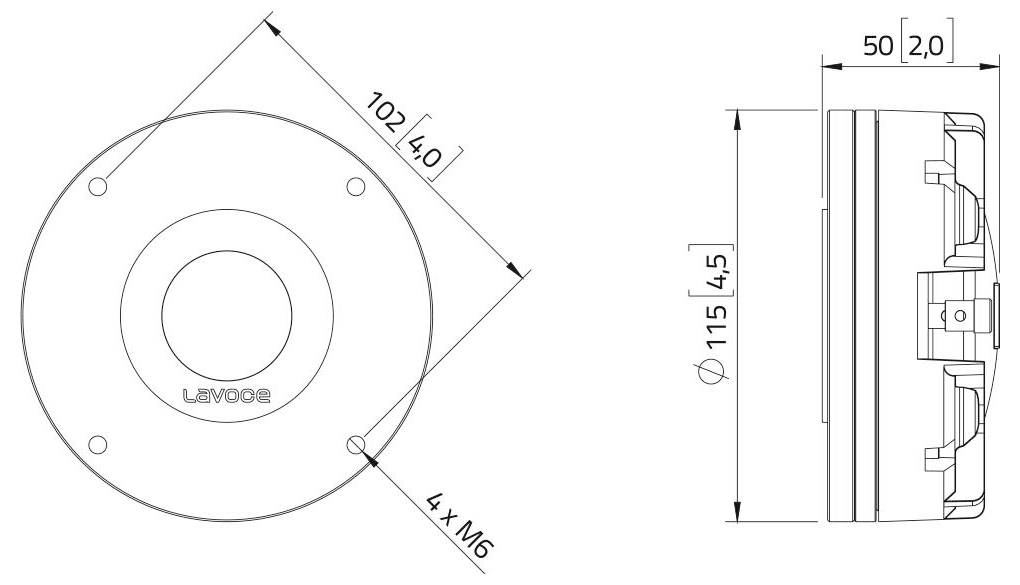

'Technical drawing of a round device mount, dimensions 102mm diameter, 50mm depth. Includes four M6 screw holes, detailed side view.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1.4" compression driver Tweeter with neodymium magnet; junction material: Titanium; 3" moving coil compression driver tweeter
Rating 110 W AES
Sensitivity 108 dB

Product type: Tweeter driver

Max. load: 110 W

Min. frequency: 500 Hz

Max. frequency: 18000 Hz

Frequency range: 500 Hz - 18000 Hz

Impedance: 16 Ω

Weight: 1.42 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729674 Lavoce DN14.30T-16 Tweeter driver 16 Ω

Description

110 W AES, 16 ohm, 108 dB, 500 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
