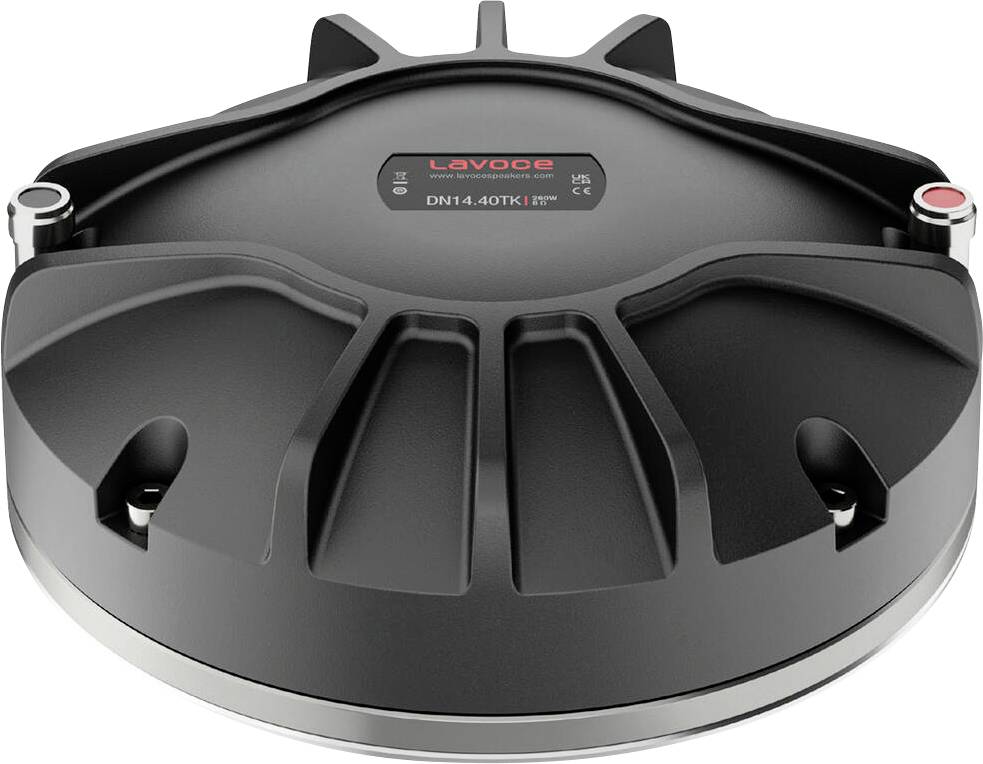

A black Lavoe speaker component with 'DN14.40TK' label on top, featuring a robust and sleek design with multiple ridges and connectors.

A black Lavoe speaker component with 'DN14.40TK' label on top, featuring a robust and sleek design with multiple ridges and connectors.

Graph showing speaker frequency response and impedance. Black line: SPL in dB, peak near 100 dB at 500 Hz. Red line: Impedance, peaks near 40 Ohm at 100 Hz.

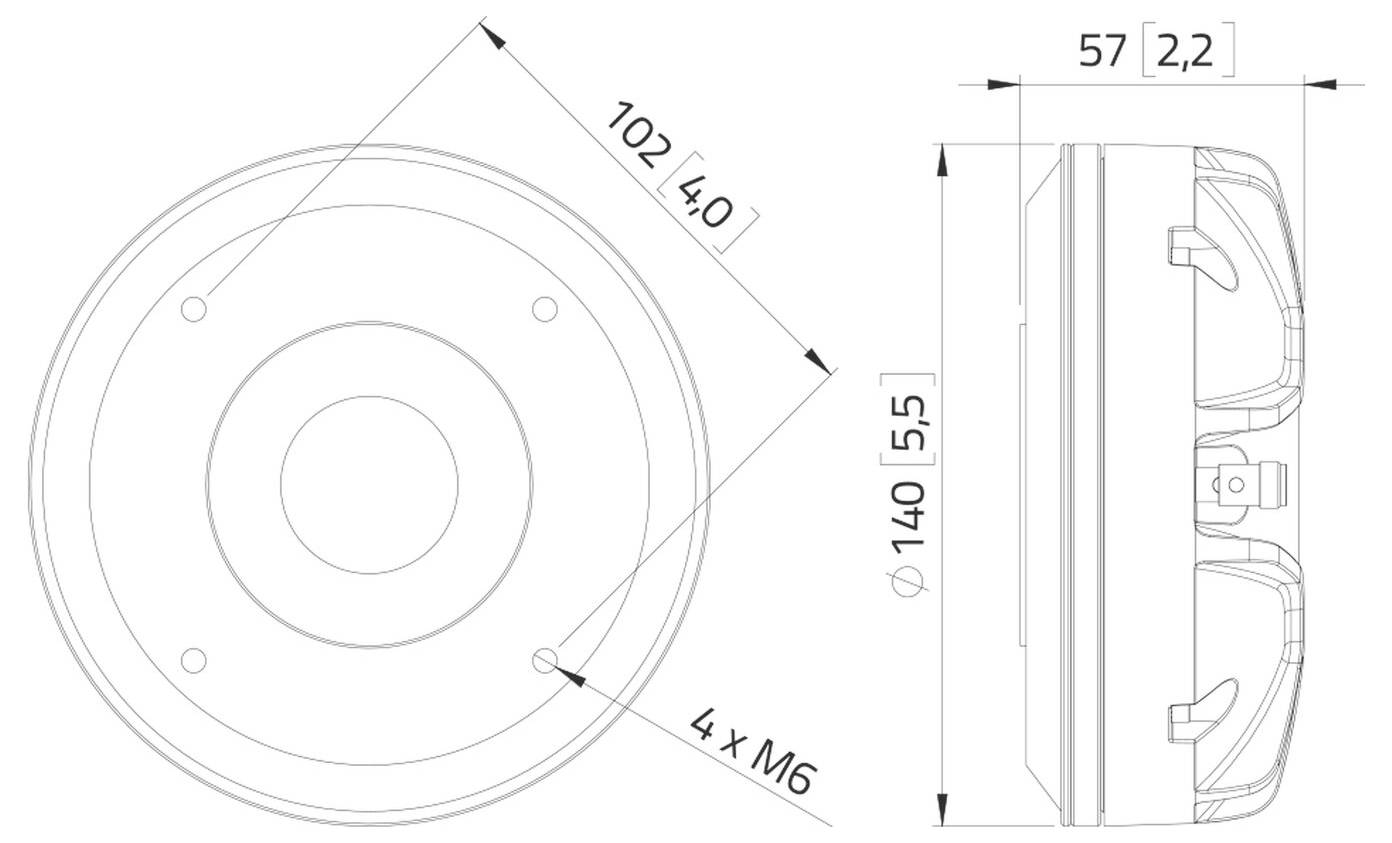

Diagram of a circular device with dimensions: diameter 140 mm, thickness 57 mm. Mounts with four M6 screws. Top and side views shown.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 1.4" compression driver Tweeter with neodymium magnet; junction material: Titanium; 4" moving coil compression driver tweeter
Rating 130 W AES
Sensitivity 109 dB

Product type: Tweeter driver

Max. load: 130 W

Min. frequency: 500 Hz

Max. frequency: 20000 Hz

Frequency range: 500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 2.05 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729642 Lavoce DN14.40TK Tweeter driver 8 Ω

Description

You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
