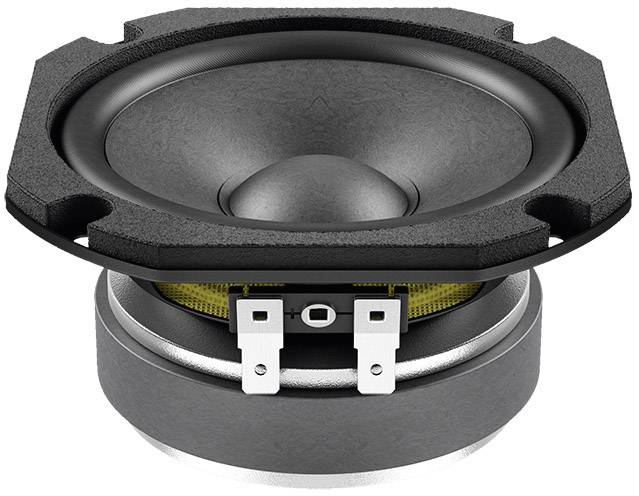

A round loudspeaker with a black frame and membrane, positioned centrally, shows the front view of a typical hi-fi audio device.

A round loudspeaker with a black frame and membrane, positioned centrally, shows the front view of a typical hi-fi audio device.

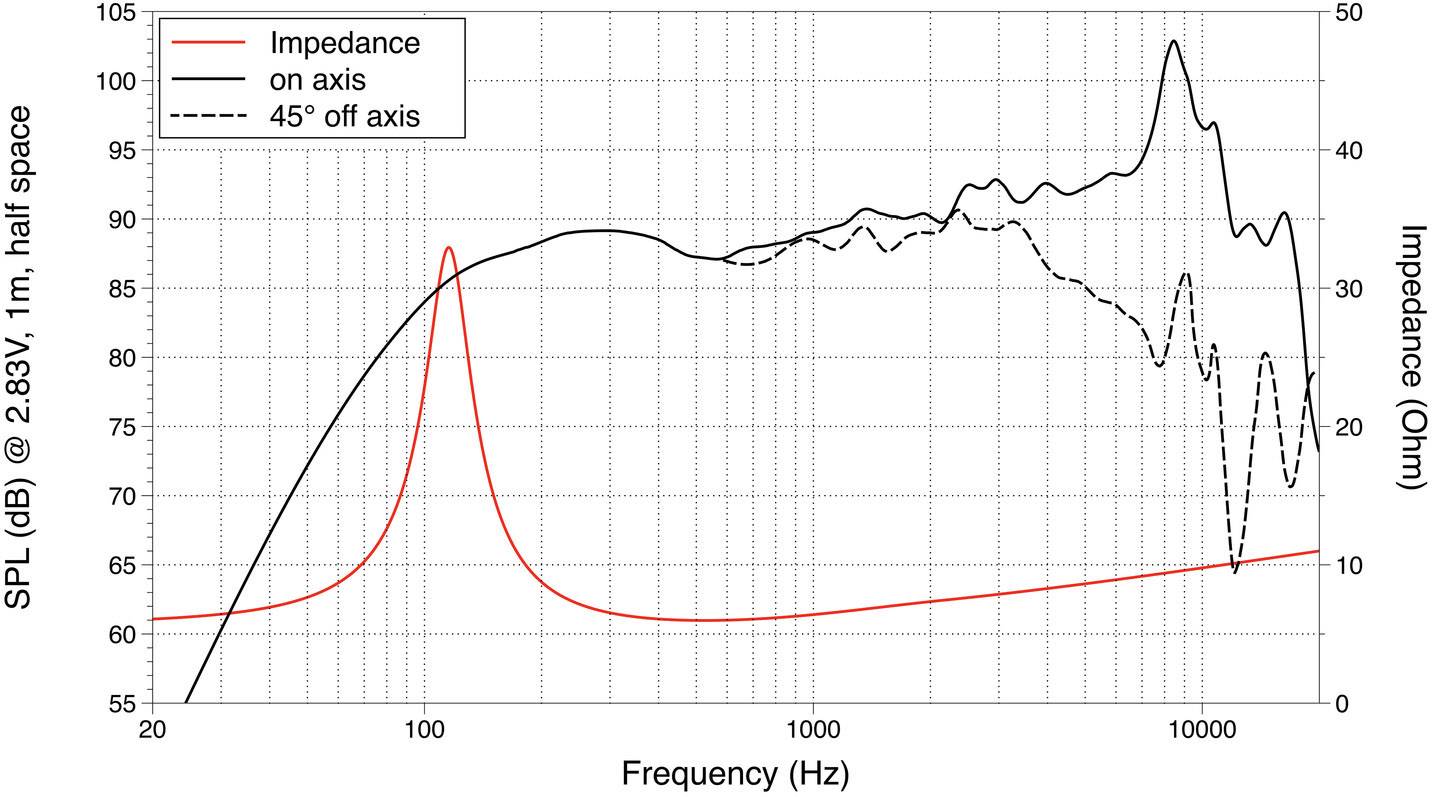

'Diagram shows frequency response and impedance of the loudspeaker. Frequency (Hz) is plotted on the x-axis and sound pressure level (dB) as well as impedance (Ohm) on the y-axis. Two curves illustrate the level at different axis positions.'

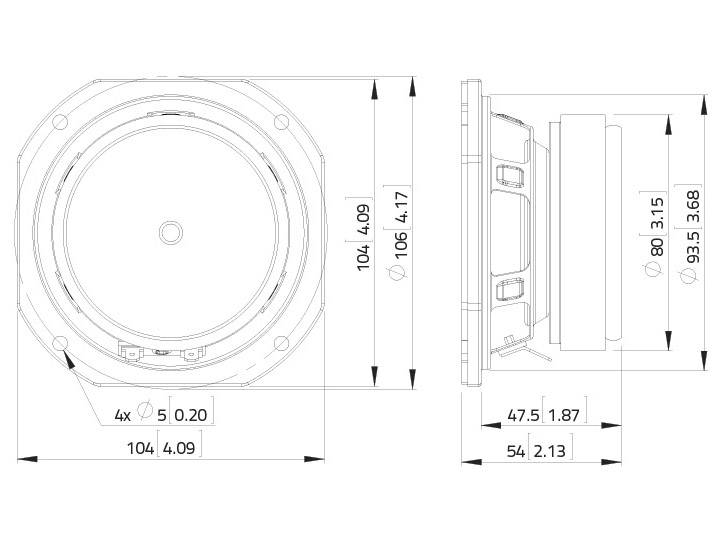

Technical drawing of a speaker with dimensions in millimetres: diameter 104, height 47.5. Various views shown.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

FSF 041.00 4" broadband loudspeakers, ferrite, steel basket

40 W AES
8 ohm, 88 dB, 100-1 8000 Hz

Technical specifications

Type: 10 cm woofer (4") nominal load capacity: 40 W 80 W Impedance: 8 Ohm load program AES sensitivity: 88 dB coil diameter: 2.5 cm (1") Chassis Material: Steel Magnet material: ferrite weight: 0.6 kg frequency range: 100 - 18000 Hz loudspeaker control: 8 Ohm

Product type: Wideband speaker

Speaker size (cm): 10 cm

Speaker size (inch): 4 inch

RMS capacity: 40 W

Max. load: 80 W

Max. frequency: 18000 Hz

Min. frequency: 100 Hz

Impedance: 8 Ω

Sound pressure: 88 dB

Weight: 600 g

Frequency range: 100 Hz - 18000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1875915 Lavoce FSF041.00 4 inch 10 cm Wideband speaker 40 W 8 Ω

Description

FSF 041.00 4" broadband loudspeakers, ferrite, Steel Basket.

This text is machine translated.

Features

Lived innovation climate
Outstanding, elegant Italian Design
The highest standards and excellent test tools
Modern and efficient production equipment with a high degree of automation
Excellent quality system
Efficient logistics
ISO 9001 certification.
