Buy Lavoce FSN021.02 2 inch Wideband speaker 25 W 8 Ω

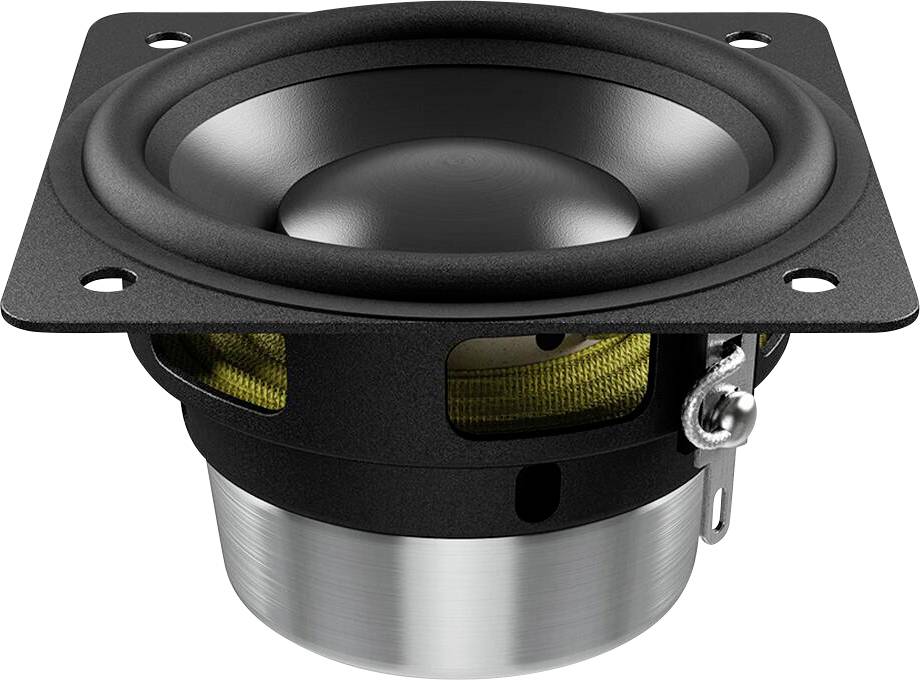

A square black speaker with a round cone, featuring a metal casing and visible yellow coil.

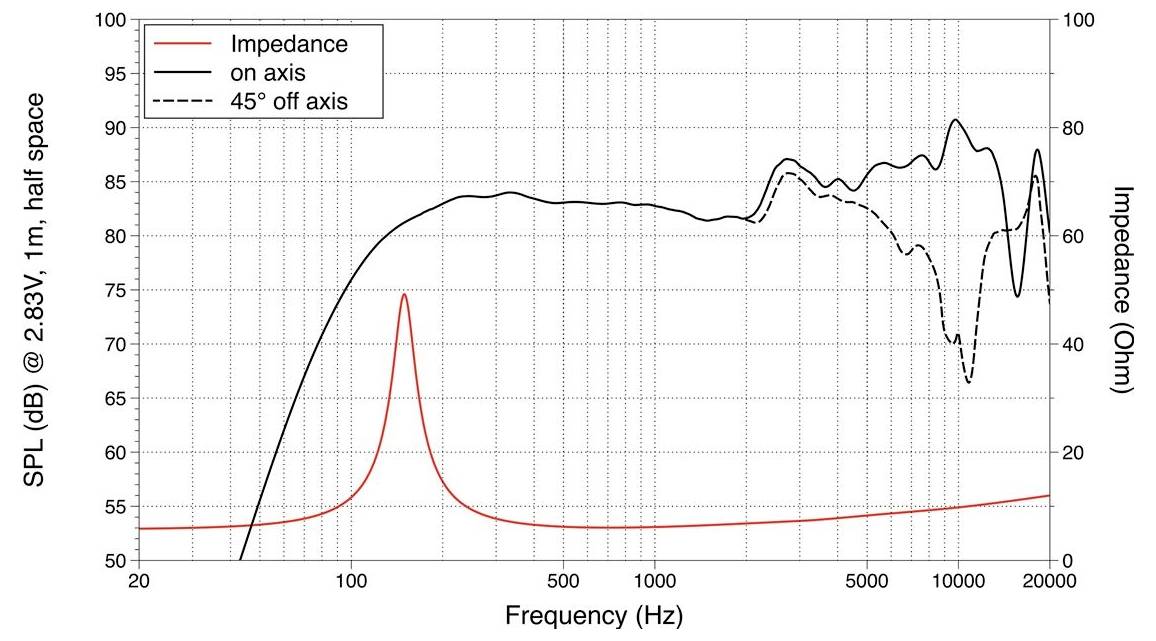

Line graph showing speaker frequency response. X-axis: Frequency (Hz), Y-axis: SPL (dB), and Impedance (Ohm). Labels: 'Impedance', 'on axis', '45° off axis'. Shows SPL peaks at various Hz.

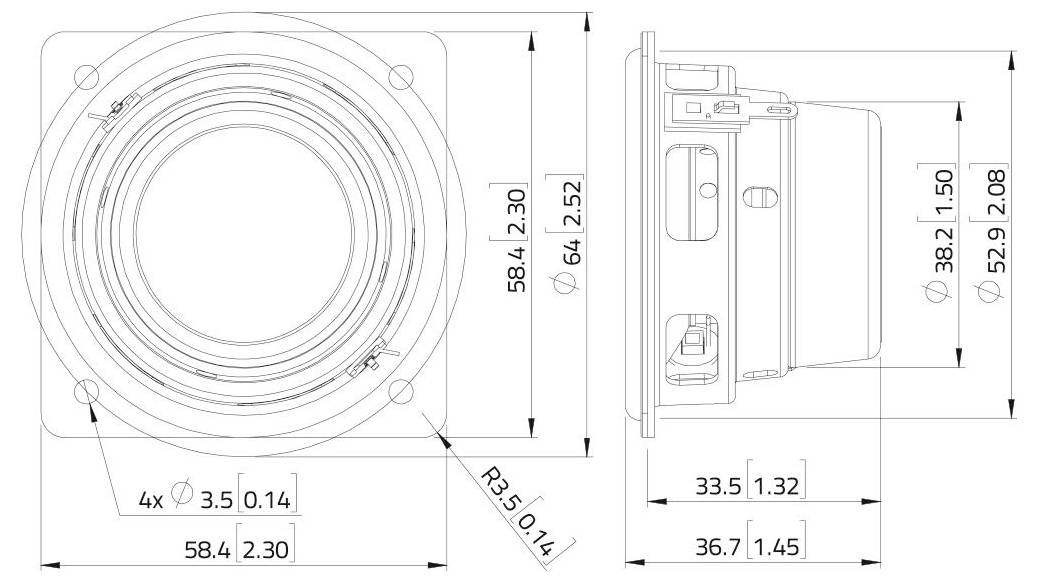

Technical drawing of a mechanical part with dimensions and annotations, viewed from top and side, showing circular and rectangular components.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Rating: Program: 50 W; Nominal: 25 W AES
Frequency range 140 20000 Hz
Sensitivity 83 dB
Impedance 8 Ohm
2" broadband loudspeaker with neodymium magnet
Basket material: Steel
1" voice coil full-range speaker

Product type: Wideband speaker

Speaker size (inch): 2 inch

RMS capacity: 25 W

Max. load: 50 W

Max. frequency: 20000 Hz

Min. frequency: 140 Hz

Impedance: 8 Ω

Sound pressure: 83 dB

Weight: 150 g

Frequency range: 140 Hz - 20000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729647 Lavoce FSN021.02 2 inch Wideband speaker 25 W 8 Ω

Description

25 W AES, 8 ohm, 83 dB, 140 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.
