Buy Lavoce FSN041.00-16 4 inch Wideband speaker 40 W 16 Ω

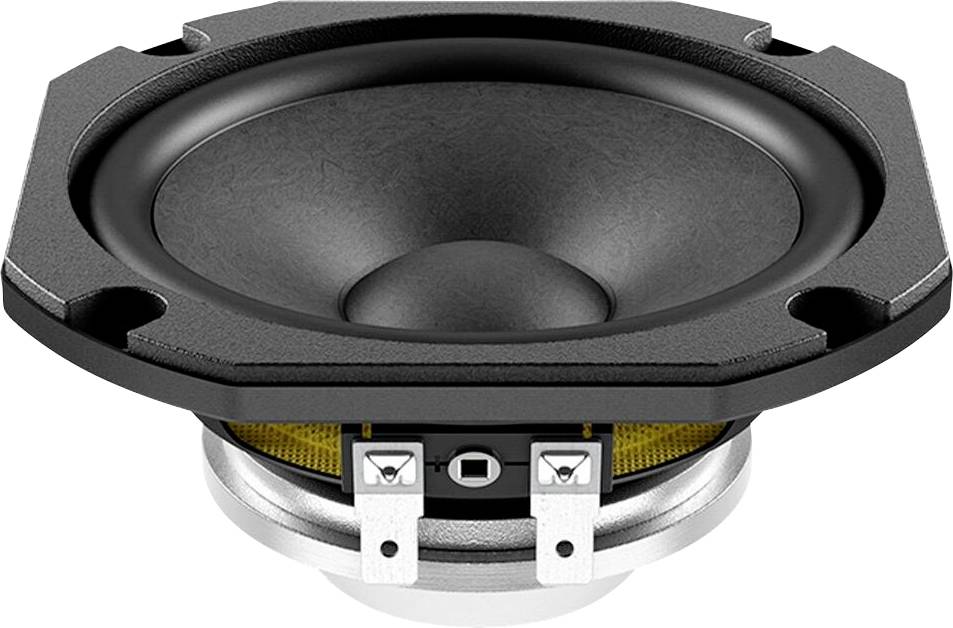

A close-up of a black speaker driver showing the cone, surround, and mounting frame. The metal terminals for connections are visible at the base.

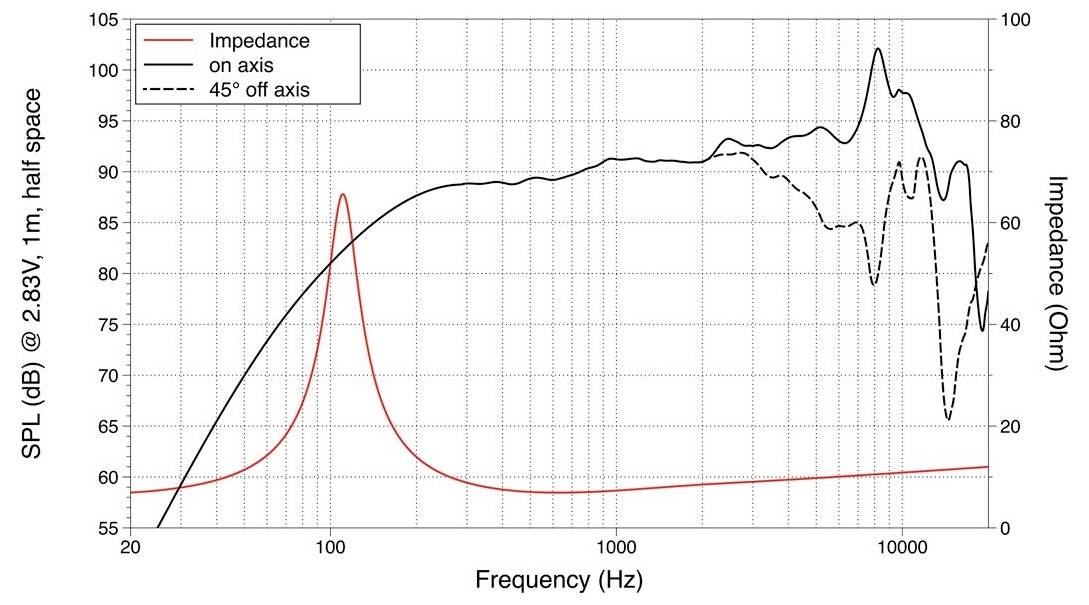

'Frequency response and impedance graph.' X-axis: Frequency (Hz), Y-axis left: SPL (dB), Y-axis right: Impedance (Ohm). Shows on-axis and 45-degree off-axis responses.

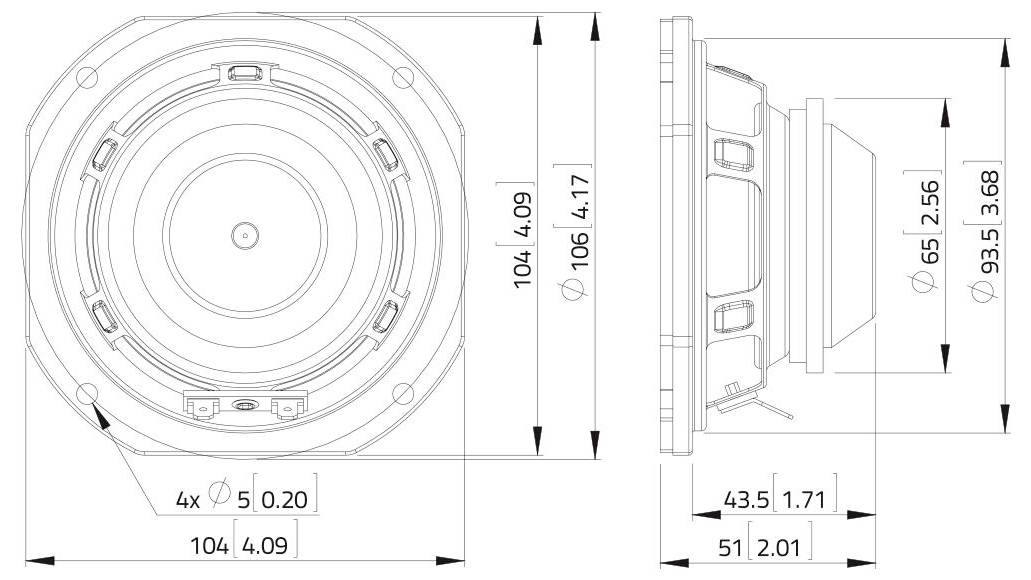

'Technical drawing of a circular speaker driver.' Right view shows depth and cone structure. Dimensions in millimeters and inches.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Rating: Program: 80 W; Nominal: 40 W AES
Frequency range 110 18000 Hz
Sensitivity 91 dB
Impedance 16 Ohm
4" broadband loudspeaker with neodymium magnet
Basket material: Steel
1" voice coil full-range speaker

Product type: Wideband speaker

Speaker size (inch): 4 inch

RMS capacity: 40 W

Max. load: 80 W

Max. frequency: 18000 Hz

Min. frequency: 110 Hz

Impedance: 16 Ω

Sound pressure: 91 dB

Weight: 400 g

Frequency range: 110 Hz - 18000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729651 Lavoce FSN041.00-16 4 inch Wideband speaker 40 W 16 Ω

Description

40 W AES, 16 ohm, 91 dB, 110 - 18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
