Buy Lavoce MAF061.50 6.5 inch Mid-range speaker 8 Ω

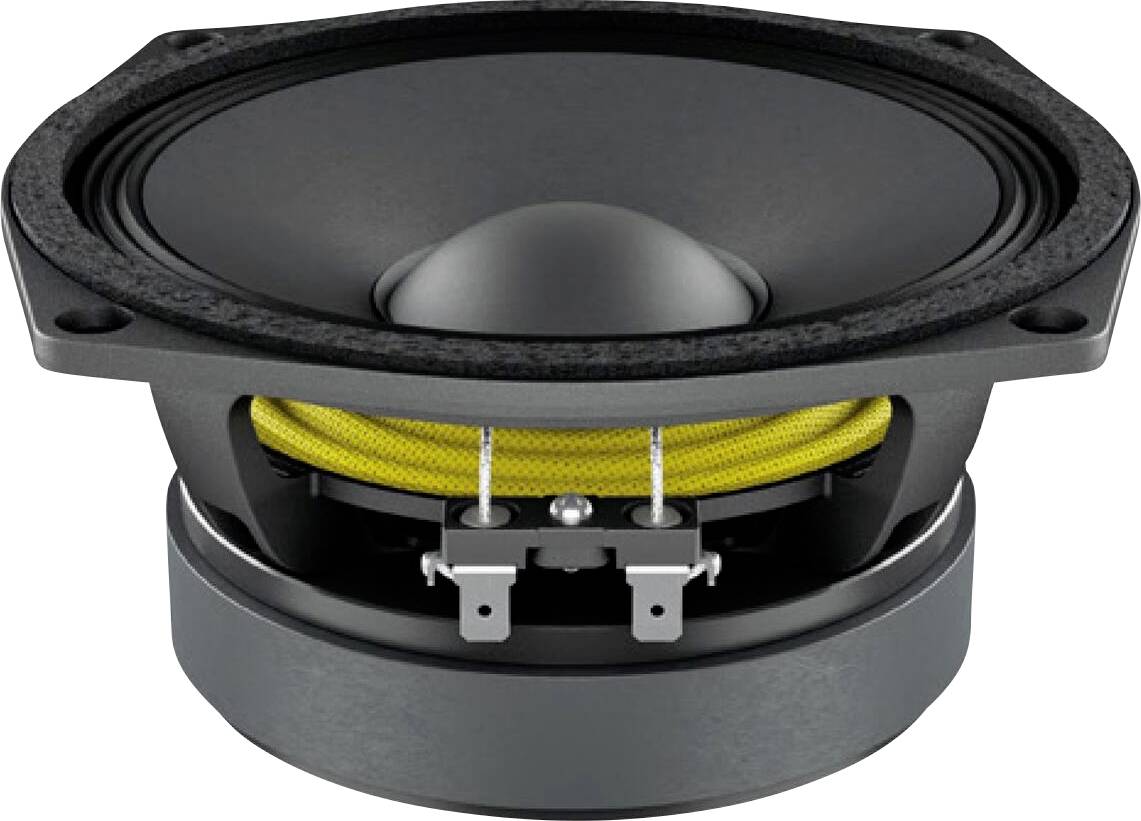

A black and gray speaker with a yellow coil, seen from an angle showing the front and side, used for audio output in sound systems.

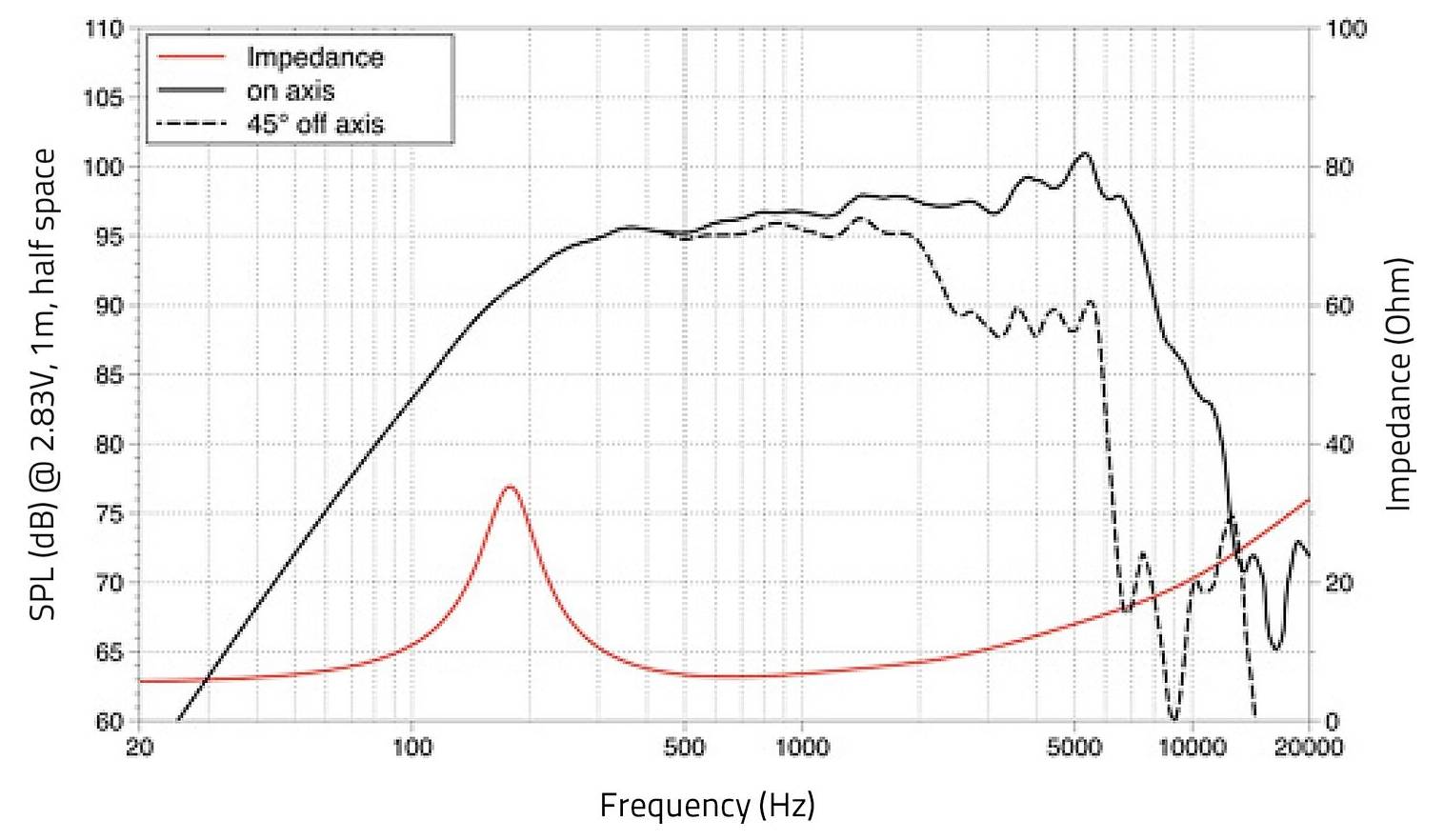

Graph showing speaker performance: SPL vs. Frequency. SPL lines ('on axis', '45° off axis') with peaks at 80-100dB. Impedance curve rises from 0-20 Ohm.

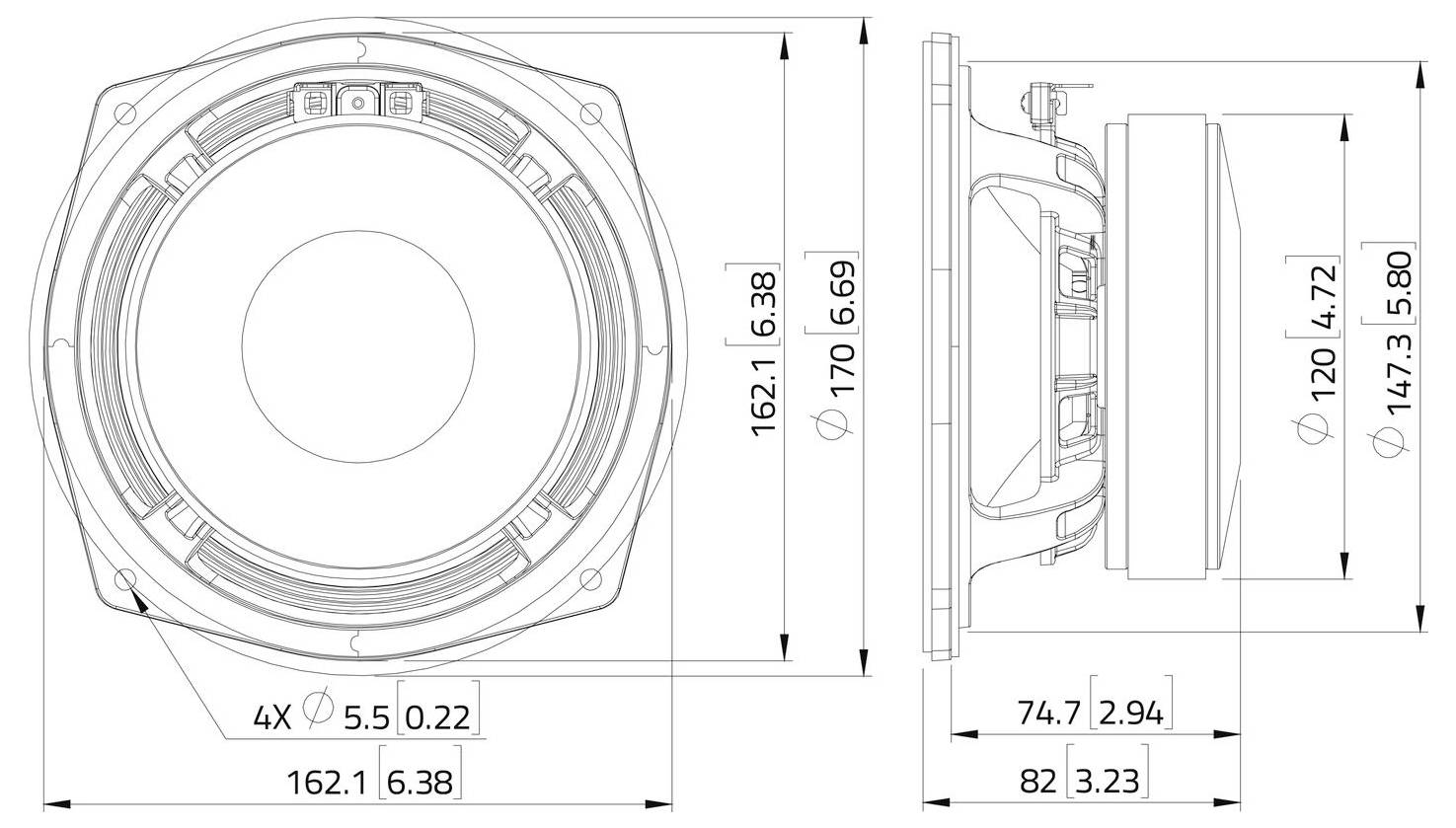

Technical diagram of a speaker with front and side views, showcasing dimensions: 162.1mm diameter, 74.7mm depth. Measurements indicated.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Rating: Program: 240 W; Nominal: 120 W AES
Frequency range 150 9000 Hz
Sensitivity 97 dB
Impedance 8 Ohm
6.5" mid-range speaker with ferrite magnet
Basket material: Aluminium
1.5" midrange voice coil

Product type: Mid-range speaker

Speaker size (inch): 6.5 inch

Max. load: 240 W

Min. frequency: 150 Hz

Max. frequency: 9000 Hz

Impedance: 8 Ω

Weight: 2190 g

Frequency range: 150 Hz - 9000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729575 Lavoce MAF061.50 6.5 inch Mid-range speaker 8 Ω

Description

120 W AES, 8 ohm, 97 dB, 150 - 9000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
