Buy Lavoce MAF082.00 8 inch Mid-range speaker 8 Ω

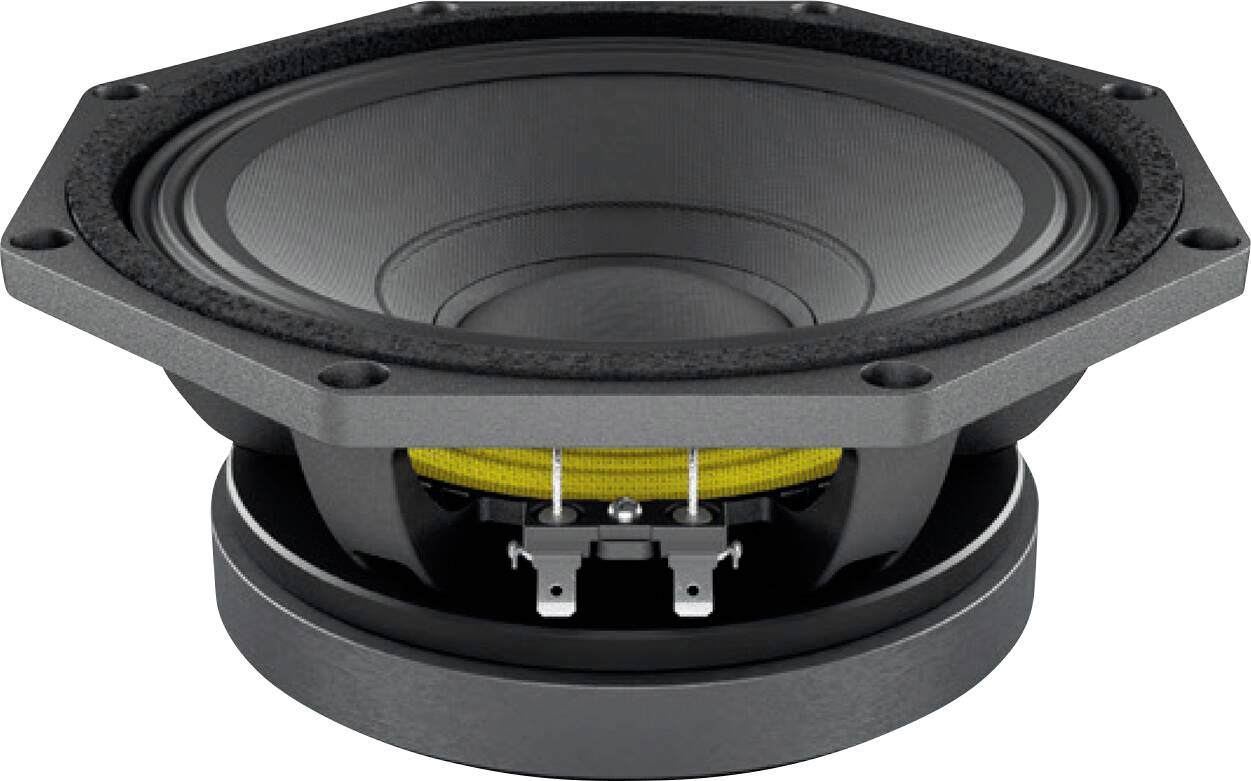

A close-up image of a black speaker driver with a hexagonal frame, reflecting its design and electronic connectors beneath.

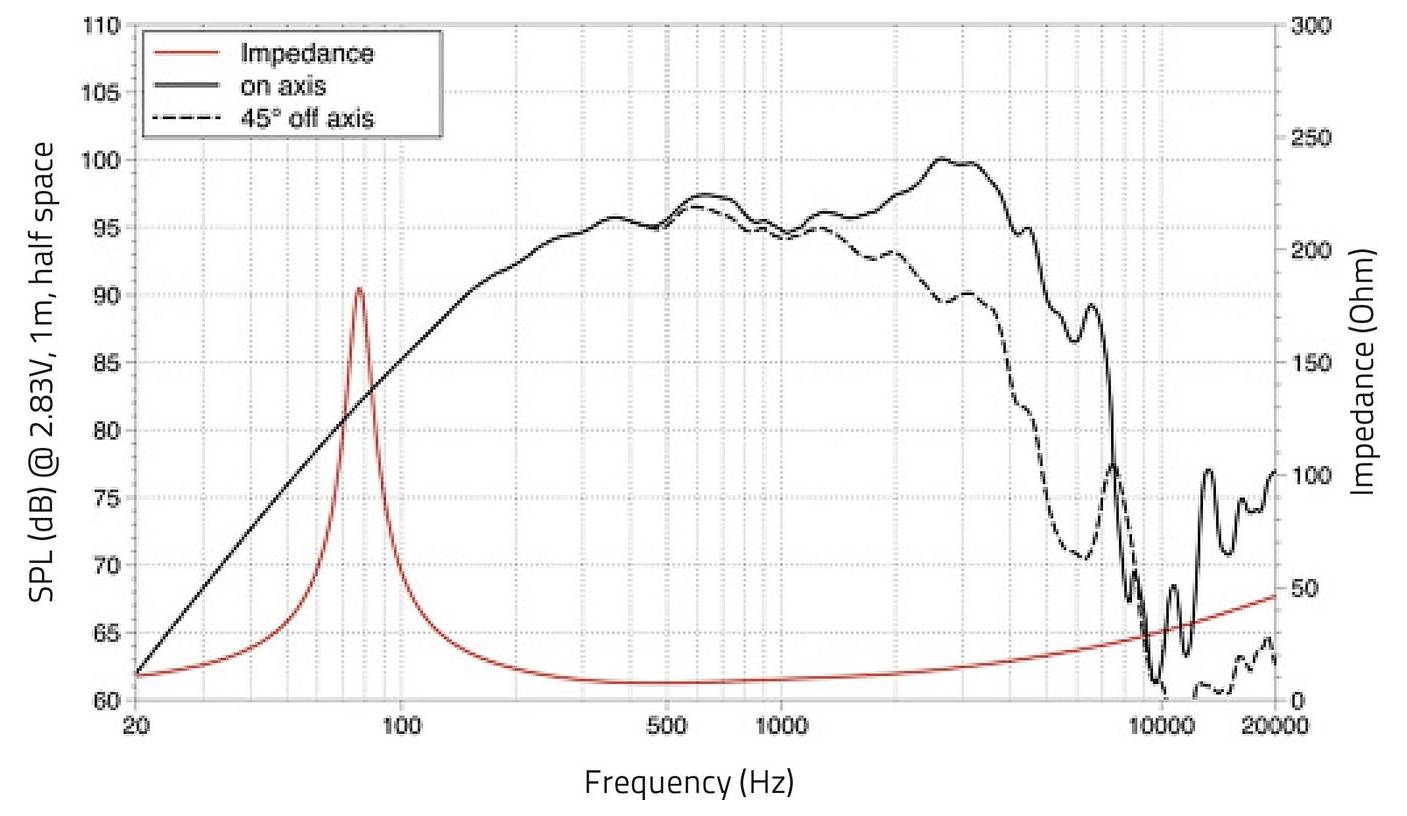

Graph showing SPL (dB) vs. Frequency (Hz) with curves for 'on axis' and '45° off axis'; Impedance (Ohm) is also plotted on a secondary axis.

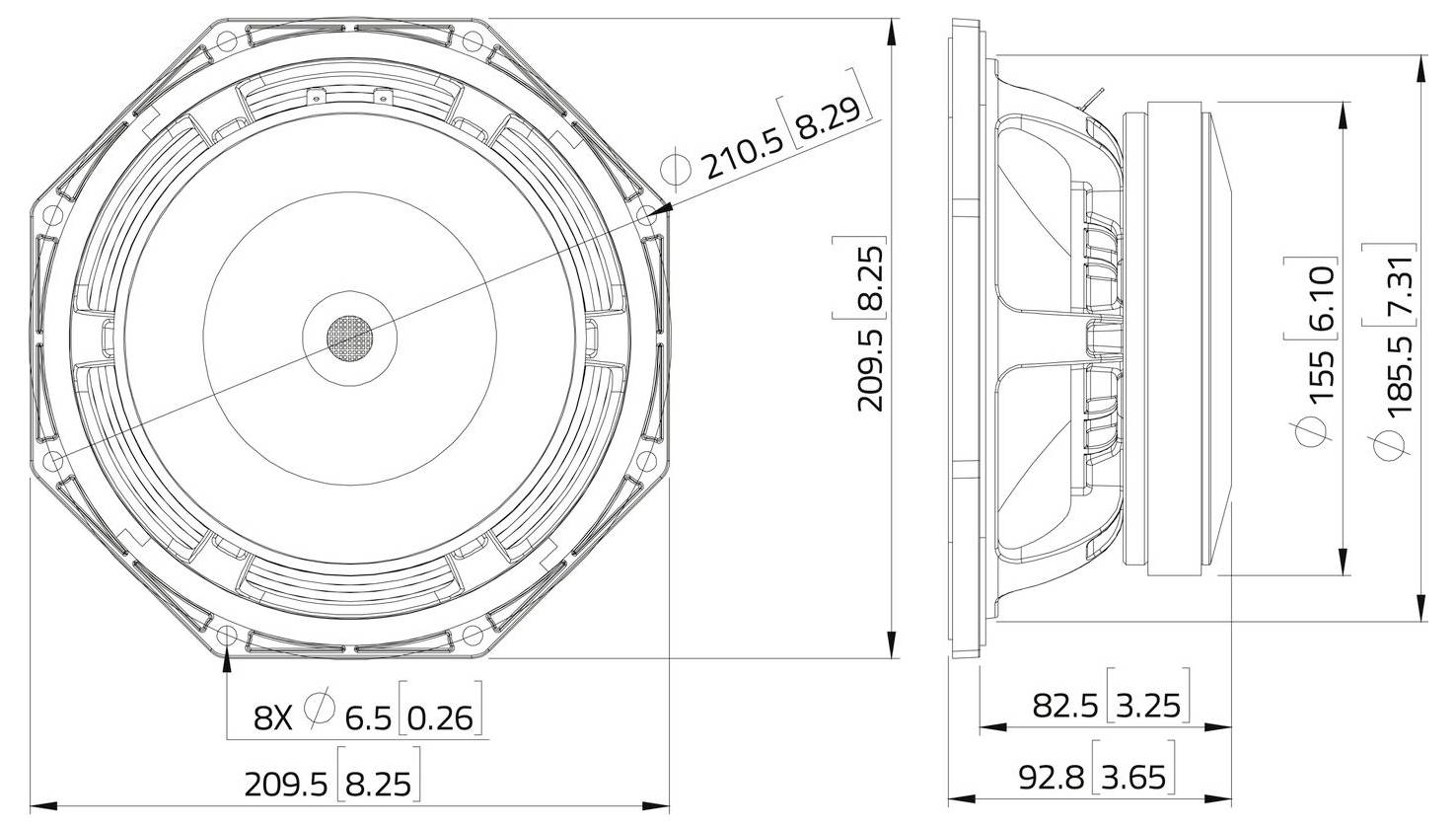

'Technical drawing of a speaker driver, front and side views, with measurements: diameter 210.5 mm, depth 185.5 mm, mounting holes.'

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Rating: Program: 400 W; Nominal: 200 W AES
Frequency range 90 5000 Hz
Sensitivity 98.5 dB
Impedance 8 Ohm
8" mid-range speaker with ferrite magnet
Basket material: Aluminium
2" midrange voice coil
Weight: 4.11

Product type: Mid-range speaker

Speaker size (inch): 8 inch

Max. load: 400 W

Min. frequency: 90 Hz

Max. frequency: 5000 Hz

Impedance: 8 Ω

Weight: 4110 g

Frequency range: 90 Hz - 5000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729574 Lavoce MAF082.00 8 inch Mid-range speaker 8 Ω

Description

200 W AES, 8 ohm, 98.5 dB, 90 - 5000 Hz. You can find more information on this product under "Downloads" in the data sheet.
