Buy Lavoce MAN062.00 6.5 inch Mid-range speaker 8 Ω

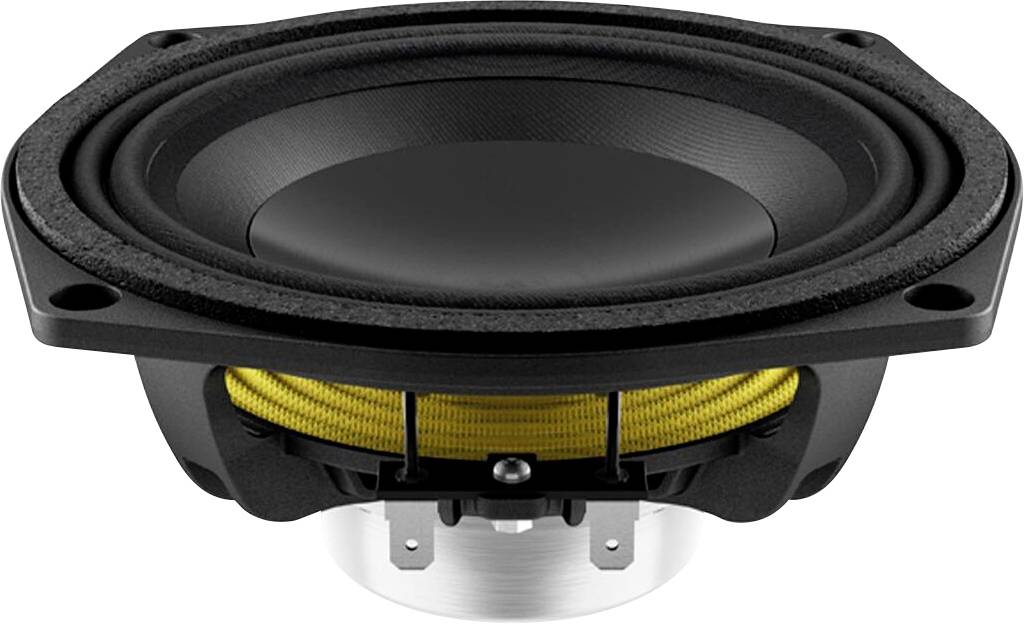

A close-up view of a black and yellow audio speaker, showcasing its cone and mounting structure, emphasizing sound equipment detail.

Graph showing speaker's sound pressure level (SPL) and impedance across frequency. Solid line: on-axis SPL, dashed line: 45° off-axis SPL, red line: impedance. SPL peaks around 1,500 Hz.

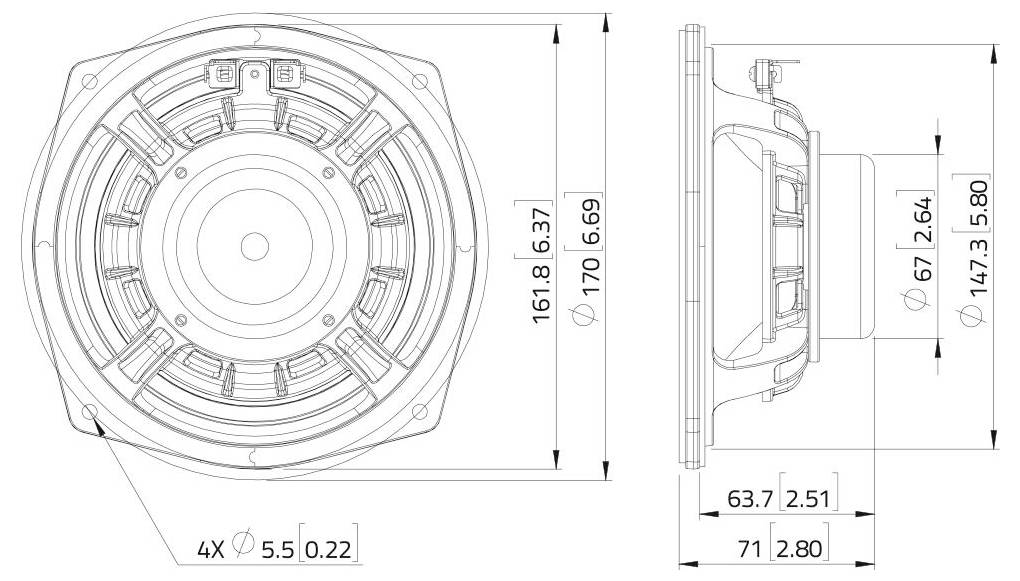

A technical diagram of a round speaker, showcasing front and side views with measurements in millimeters and inches.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Rating: Program: 500 W; Nominal: 250 W AES
Frequency range 100 4000 Hz
Sensitivity 98 dB
Impedance 8 Ohm
Loudspeaker: 6.5" mid-range driver with neodymium magnet
Basket material: Aluminium
2" midrange voice coil
Weight 0.91 kg

Product type: Mid-range speaker

Speaker size (inch): 6.5 inch

Max. load: 500 W

Min. frequency: 100 Hz

Max. frequency: 4000 Hz

Impedance: 8 Ω

Weight: 910 g

Frequency range: 100 Hz - 4000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729654 Lavoce MAN062.00 6.5 inch Mid-range speaker 8 Ω

Description

250 W AES, 8 ohm, 98 dB, 100 - 4000 Hz. You can find more information on this product under "Downloads" in the data sheet.
