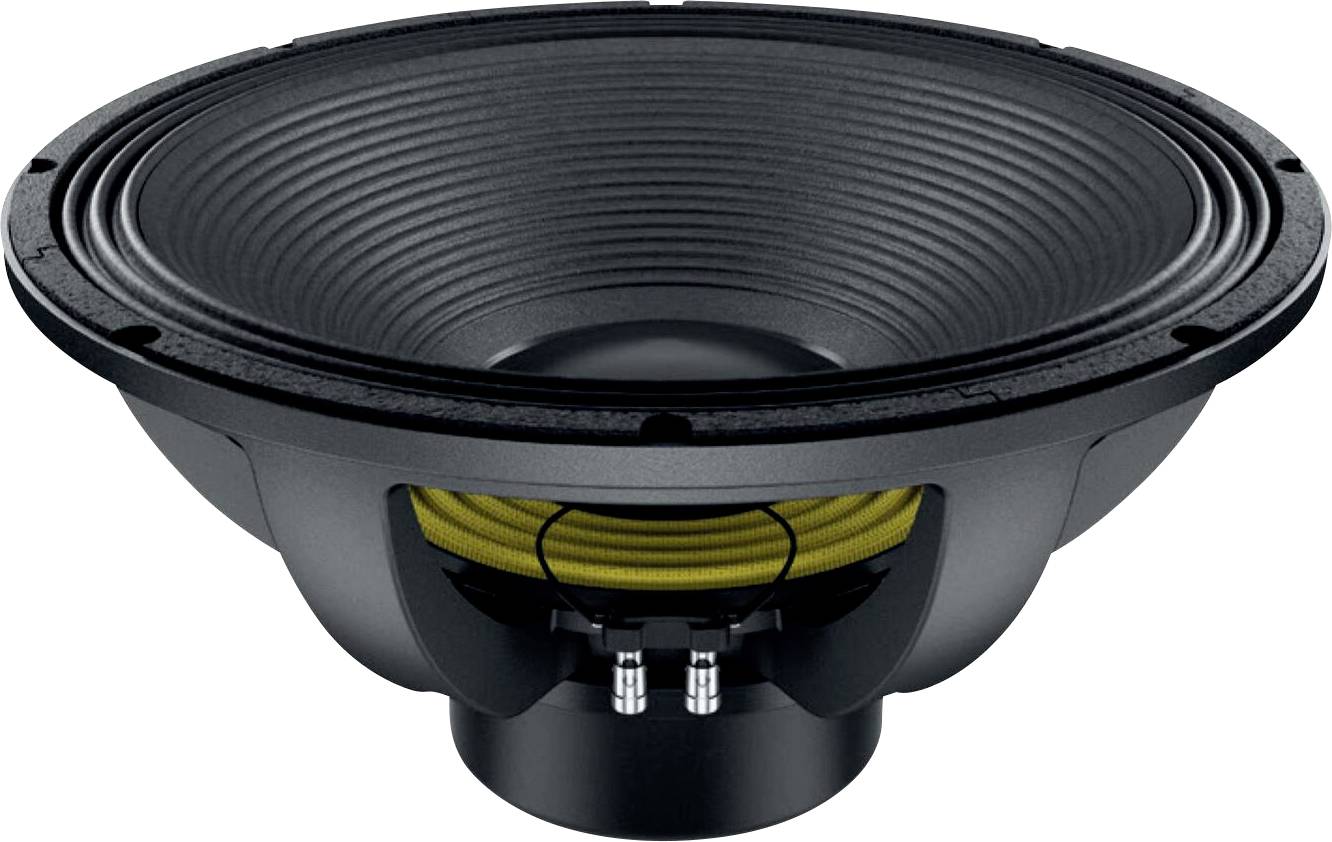

A large black and yellow speaker cone with visible coil and connectors, designed for producing deep bass sounds in audio systems.

A large black and yellow speaker cone with visible coil and connectors, designed for producing deep bass sounds in audio systems.

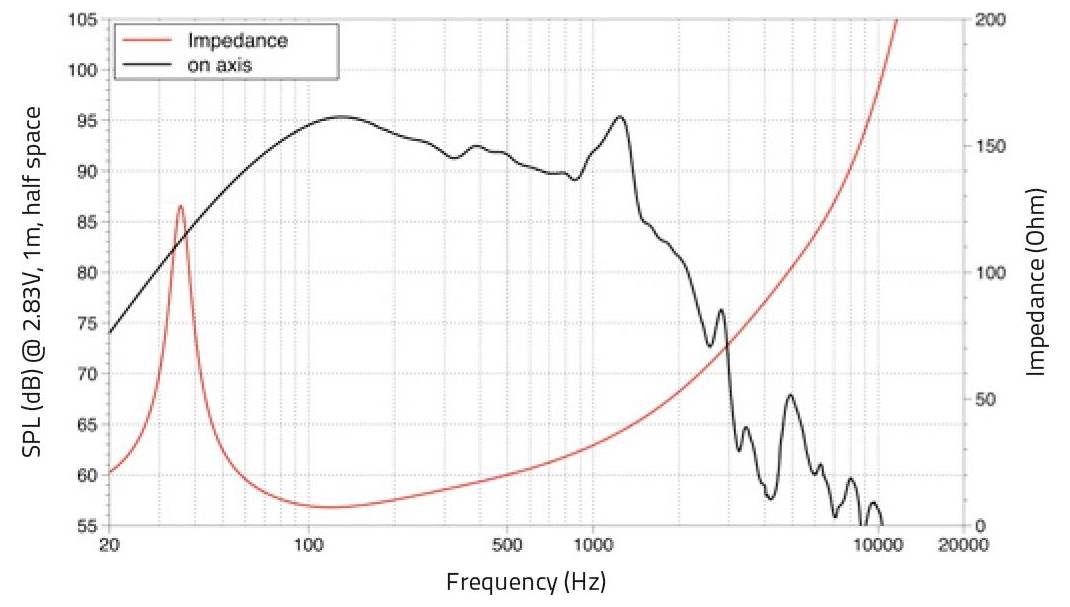

'Graph showing speaker's SPL and impedance. SPL peaks at 90 dB around 200 Hz, impedance rises past 10 ohms after 100 Hz.'

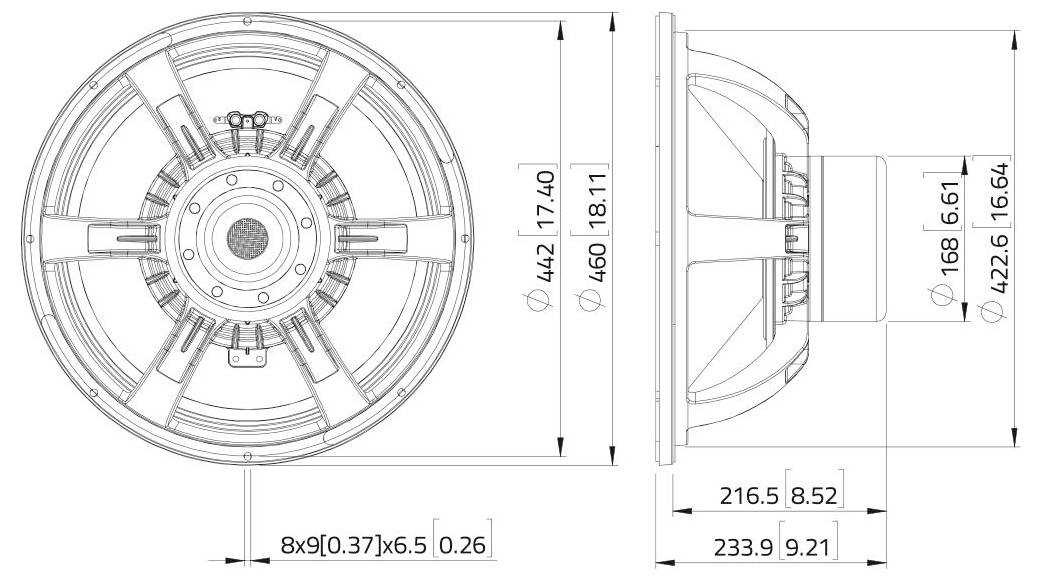

Technical drawing of a loudspeaker with front and side views, displaying detailed measurements and dimensions in millimeters.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 18" woofer with neodymium magnet; basket material: Aluminium; 4.5" moving coil woofer
Capacity: 1700W AES
Frequency range 30 1000 Hz
Sensitivity 98 dB

Product type: Subwoofer

Speaker size (inch): 18 inch

Max. load: 1700 W

Min. frequency: 30 Hz

Max. frequency: 1000 Hz

Impedance: 8 Ω

Sound pressure: 98 dB

Weight: 12.40 kg

Frequency range: 30 Hz - 1000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729666 Lavoce SAN184.50 18 inch Subwoofer 8 Ω

Description

1700 W AES, 8 ohm, 98 dB, 30 - 1000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
