Lavoce TN100.70 1 Dome tweeter 7.5 W 8 Ω
EAN:
Part number:
Item no:
Highlights & Details

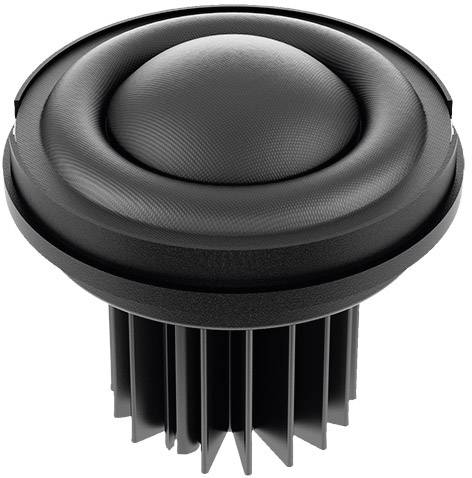

TN 100.70 1" dome tweeter, neodymium
- 7.5 W AES
- 8 ohm, 90 dB, 1500 30000 Hz
Technical specifications
- Nominal load capacity: 7.5 W AES load program: 15 W Impedance: 8 Ohm Sensitivity: 90 dB Weight: 0.05 kg frequency range 1500 - 30000 Hz loudspeaker control: 8 Ohm
- Product type
Dome tweeter
- RMS capacity
7.5 W
- Max. load
15 W
- Min. frequency
1500 Hz
- Max. frequency
30000 Hz
- Frequency range
1500 Hz - 30000 Hz
- Sound pressure
90 dB
- Impedance
8 Ω
- Weight
50 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1875917 Lavoce TN100.70 1 Dome tweeter 7.5 W 8 Ω
Description
TN 100.70 1" dome tweeter, neodymium
This text is machine translated.
This text is machine translated.
Features
- Experienced, italian development team with outstanding know-how
- Lived innovation climate
- Outstanding, elegant Italian Design
- The highest standards and excellent test tools
- Modern and efficient production equipment with a high degree of automation
- Excellent quality system
- Efficient logistics
- ISO 9001 certification.
