Buy Lavoce TN101.00 Dome tweeter 8 Ω

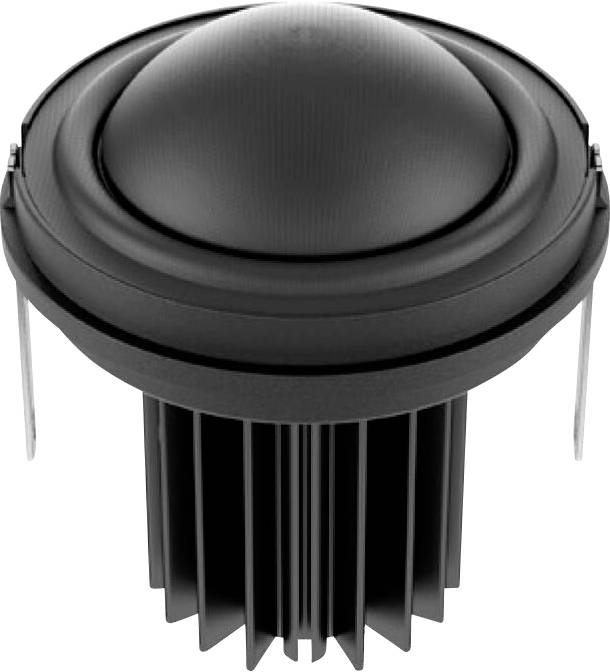

Round black speaker driver with a protruding dome and metal pins on the sides, designed for sound systems or audio equipment.

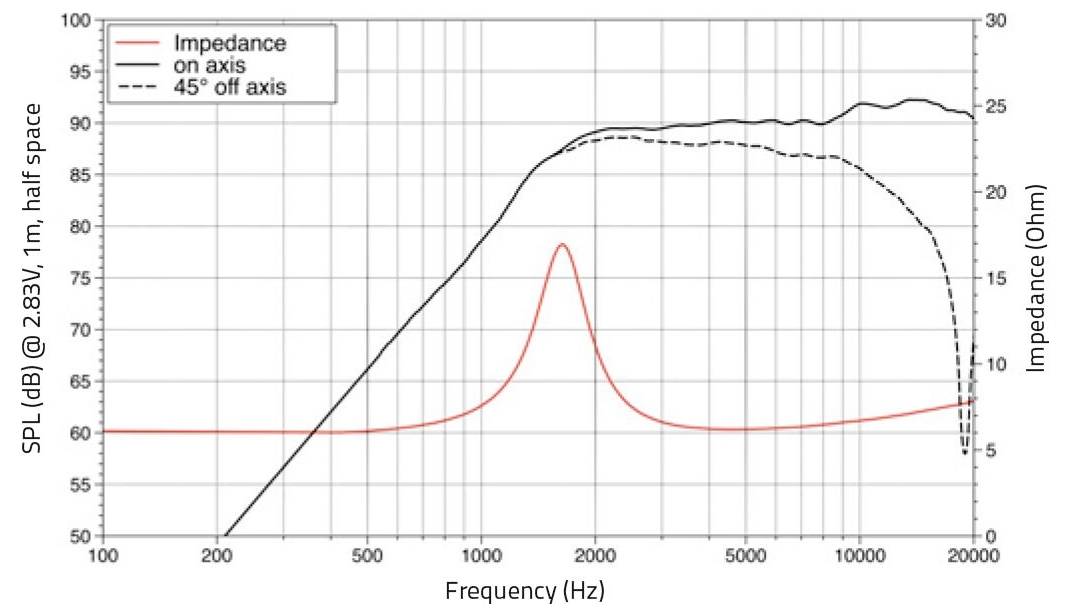

Graph showing speaker performance: SPL (dB) vs. frequency (Hz) with 'on axis' and '45° off axis' responses, and impedance (Ohm) curve.

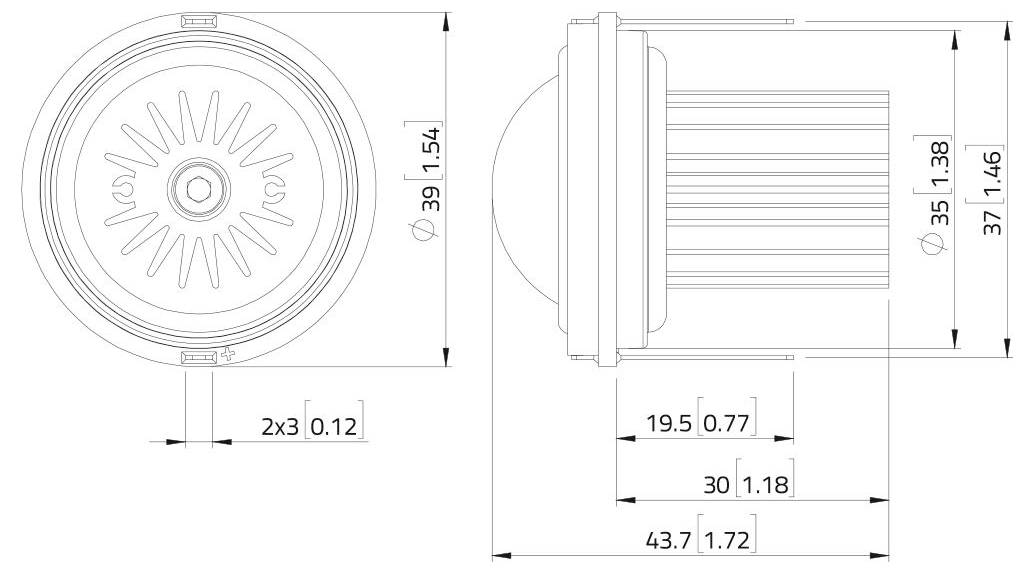

Technical drawing of a round component with radial fins, showing front and side views. Dimensions are provided in inches and millimeters.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Rating: Program: 30 W; Nominal: 15 W AES
Frequency range 1500 – 20000 Hz
Sensitivity 92 dB
Impedance 8 Ohm
1" dome tweeter with neodymium magnet
Weight 0.07 kg

Product type: Dome tweeter

Max. load: 30 W

Min. frequency: 1500 Hz

Max. frequency: 20000 Hz

Frequency range: 1500 Hz - 20000 Hz

Impedance: 8 Ω

Weight: 70 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729690 Lavoce TN101.00 Dome tweeter 8 Ω

Description

15 W AES, 8 ohm, 92 dB, 1500 - 20000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
