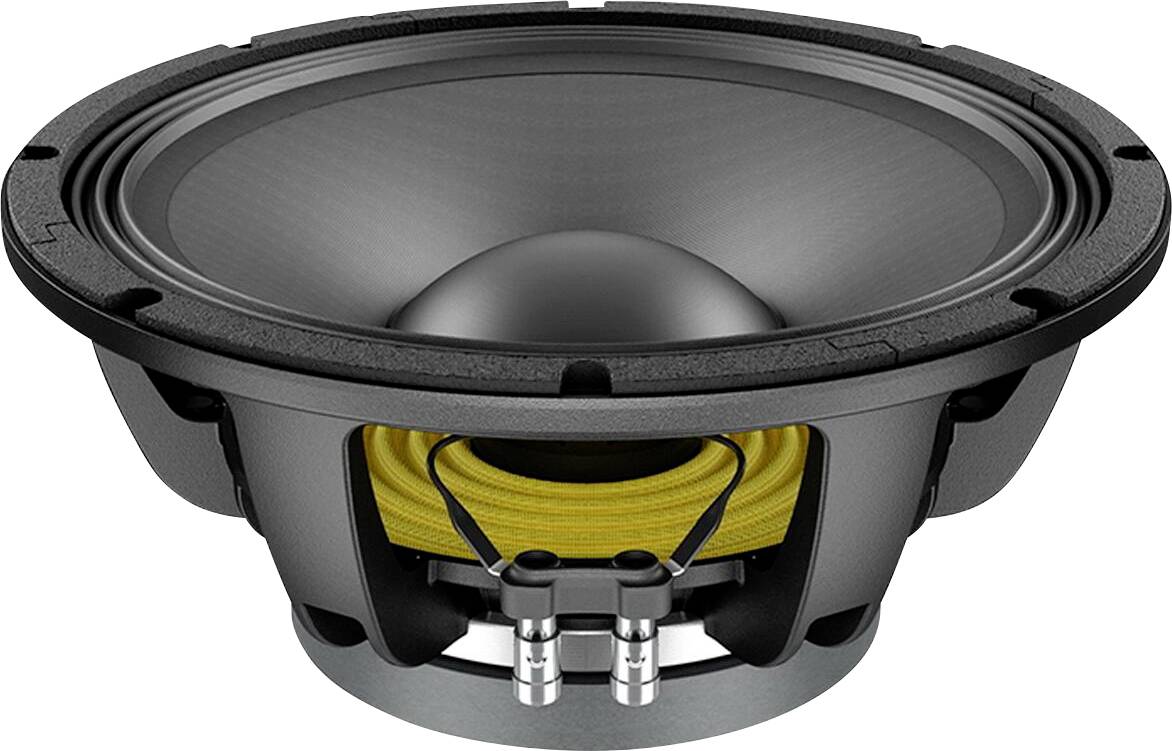

Large round audio speaker cone with a black frame and yellow suspension, viewed from the front with visible terminals at the bottom.

Large round audio speaker cone with a black frame and yellow suspension, viewed from the front with visible terminals at the bottom.

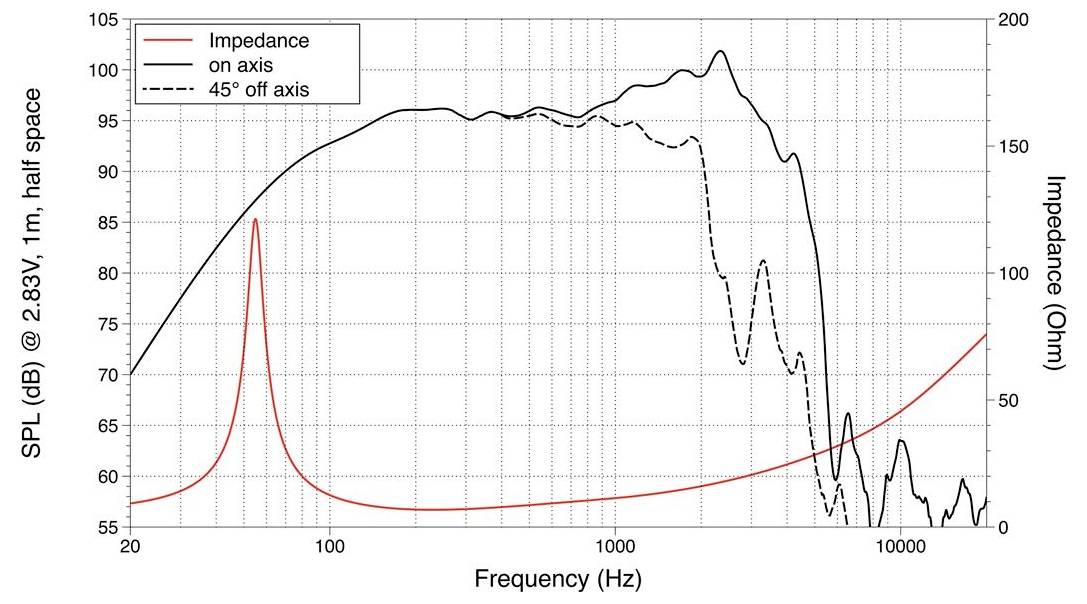

A graph showing speaker sound pressure level (SPL) and impedance across frequencies. SPL peaks at low frequencies, impedance rises at mid-range.

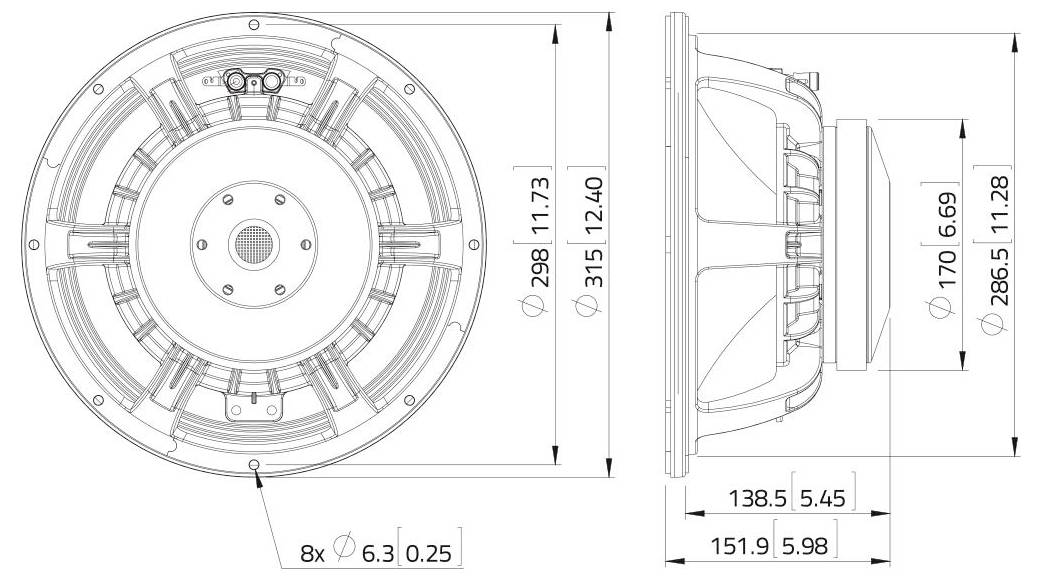

Technical drawing of a circular speaker, showing front and side views. Dimensions are highlighted: 298-315mm diameter, 170mm depth.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Speaker: 12" woofer with ferrite magnet; basket material: Aluminium; 2.5" Ti moving coil
Power rating 350W AES
Frequency range 60 3000 Hz
Sensitivity 97 dB

Product type: Subwoofer

Speaker size (inch): 12 inch

RMS capacity: 350 W

Max. load: 350 W

Min. frequency: 60 Hz

Max. frequency: 3000 Hz

Impedance: 4 Ω

Sound pressure: 97 dB

Weight: 6.35 kg

Frequency range: 60 Hz - 3000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729657 Lavoce WAF122.50-4 12 inch Subwoofer 350 W 4 Ω

Description

350 W AES, 4 ohm, 97 dB, 60 - 3000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
