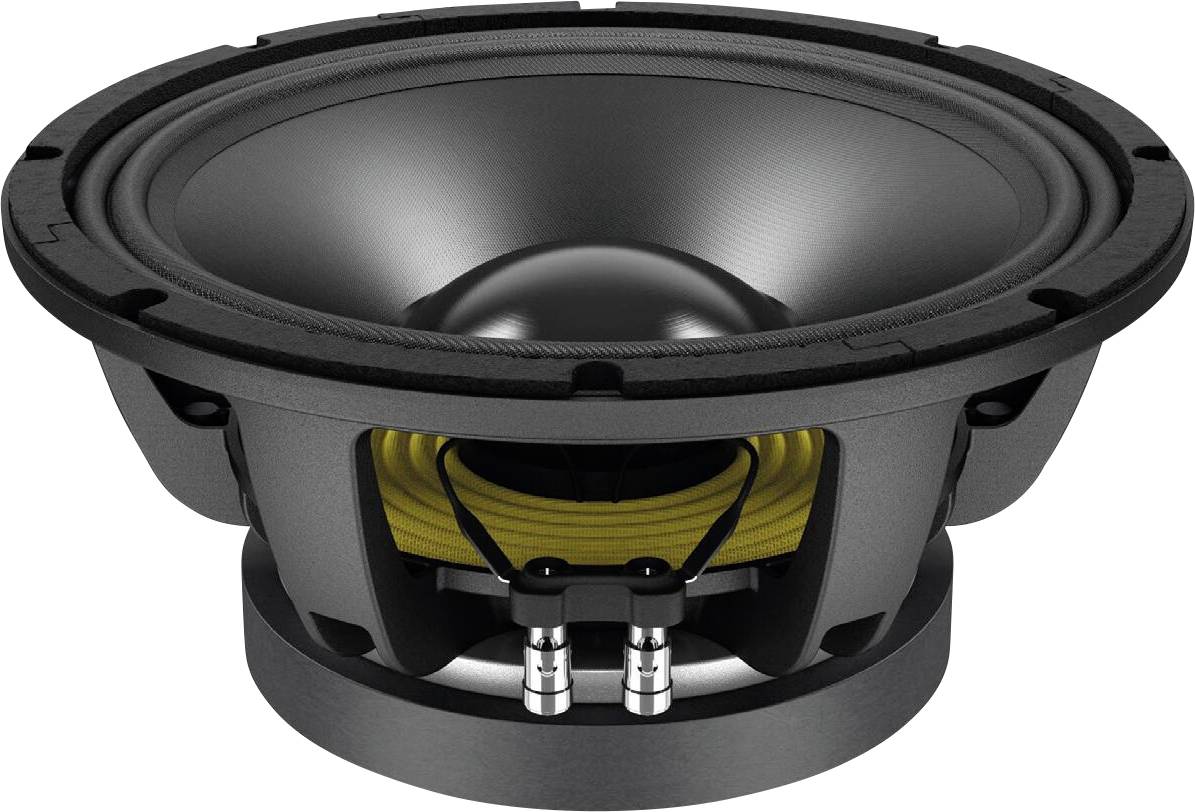

A close-up view of a black and grey speaker cone showing its structure, including the diaphragm, suspension, and voice coil details.

A close-up view of a black and grey speaker cone showing its structure, including the diaphragm, suspension, and voice coil details.

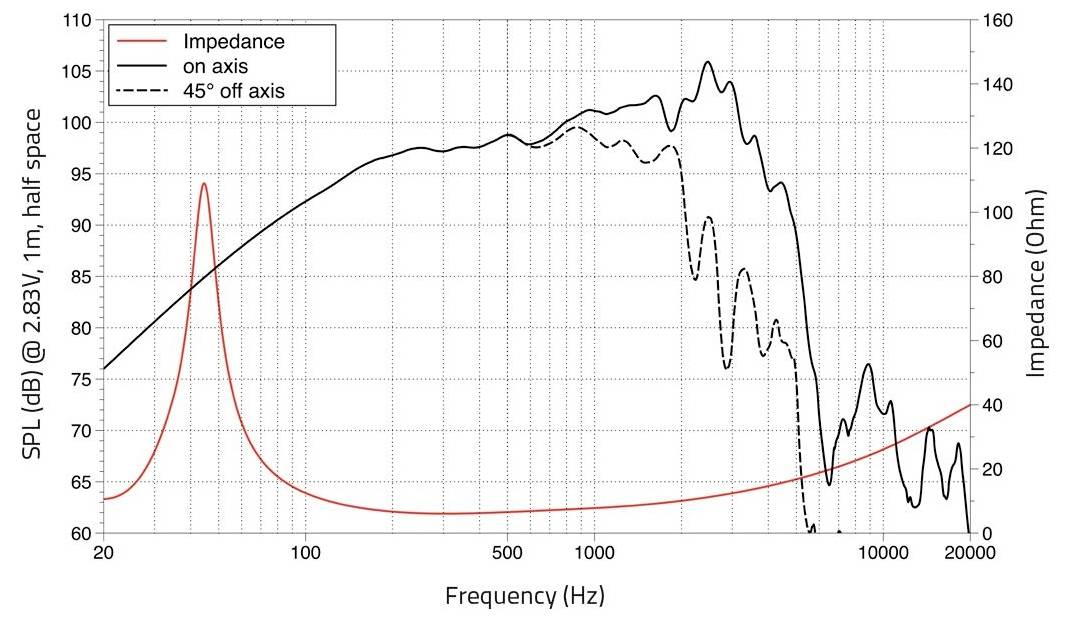

A graph showing sound pressure level (SPL) and impedance versus frequency for a speaker. SPL curves, 'on axis' and '45° off axis', and impedance line.

Technical drawing of a speaker with front and side views, showing dimensions: diameter 298 mm, depth 200 mm, and mounting hole size 6.3 mm.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Speakers: 12" woofer with ferrite magnet; basket material: Aluminium; 3" moving coil woofer
Rating:500W AES
Frequency range 45 3000 Hz
Sensitivity 99 dB

Product type: Subwoofer

Speaker size (inch): 12 inch

Max. load: 500 W

Min. frequency: 45 Hz

Max. frequency: 3000 Hz

Impedance: 8 Ω

Sound pressure: 99 dB

Weight: 9.00 kg

Frequency range: 45 Hz - 3000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729579 Lavoce WAF123.02 12 inch Subwoofer 8 Ω

Description

500 W AES, 8 ohm, 99 dB, 45 - 3000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
