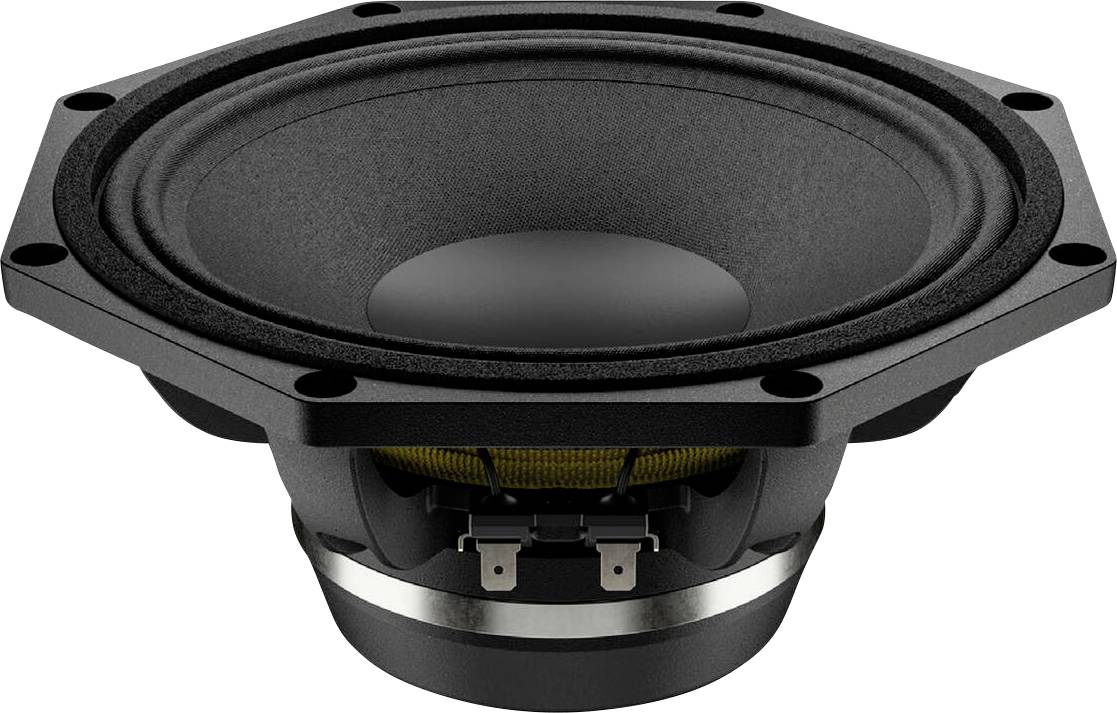

A black hexagonal subwoofer speaker with a large central cone, designed for producing low-frequency sounds, viewed from a side angle.

A black hexagonal subwoofer speaker with a large central cone, designed for producing low-frequency sounds, viewed from a side angle.

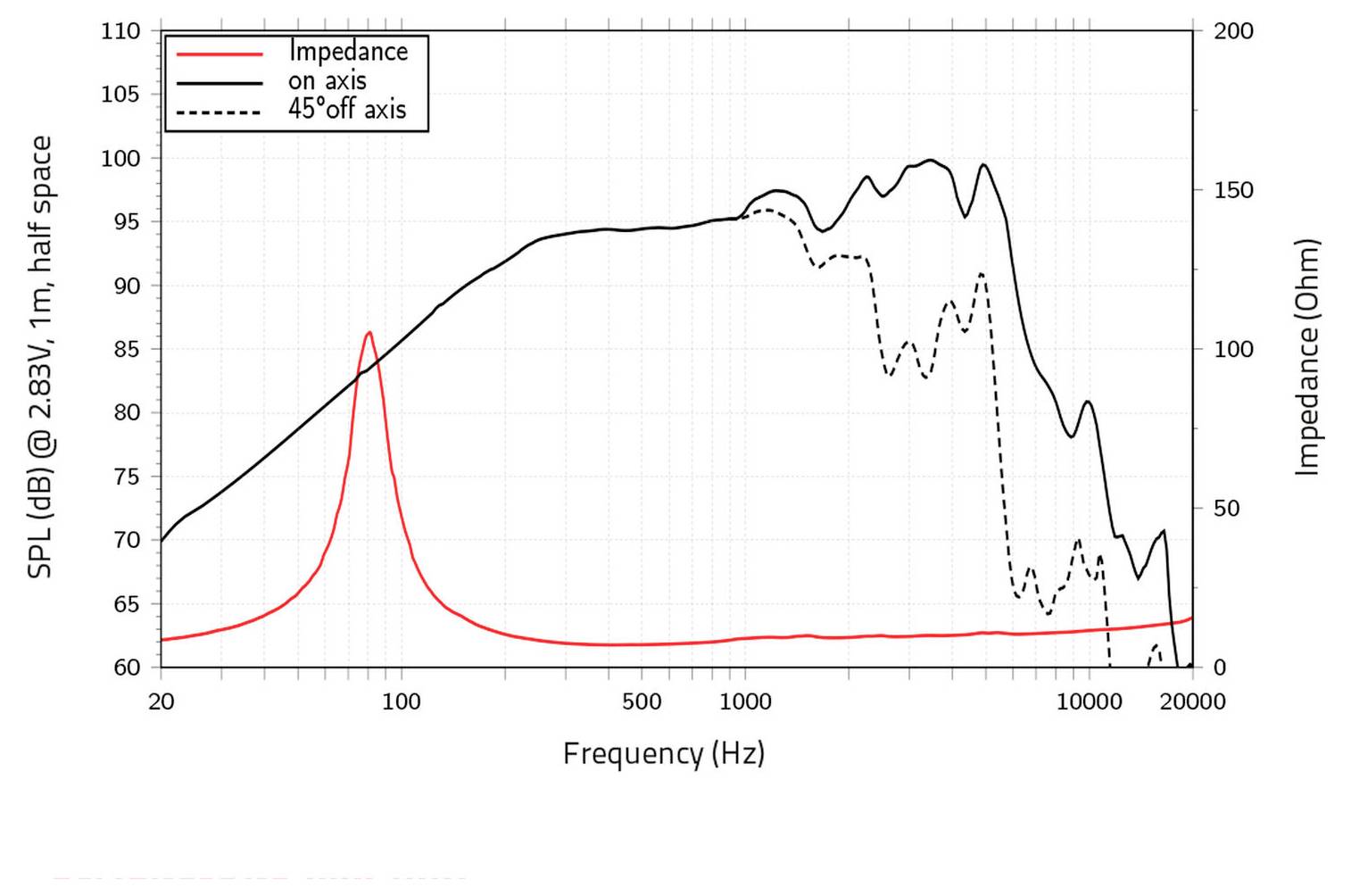

'Frequency response and impedance graph showing sound pressure level and impedance over 10 Hz to 20000 Hz for two axes, with various peaks.'

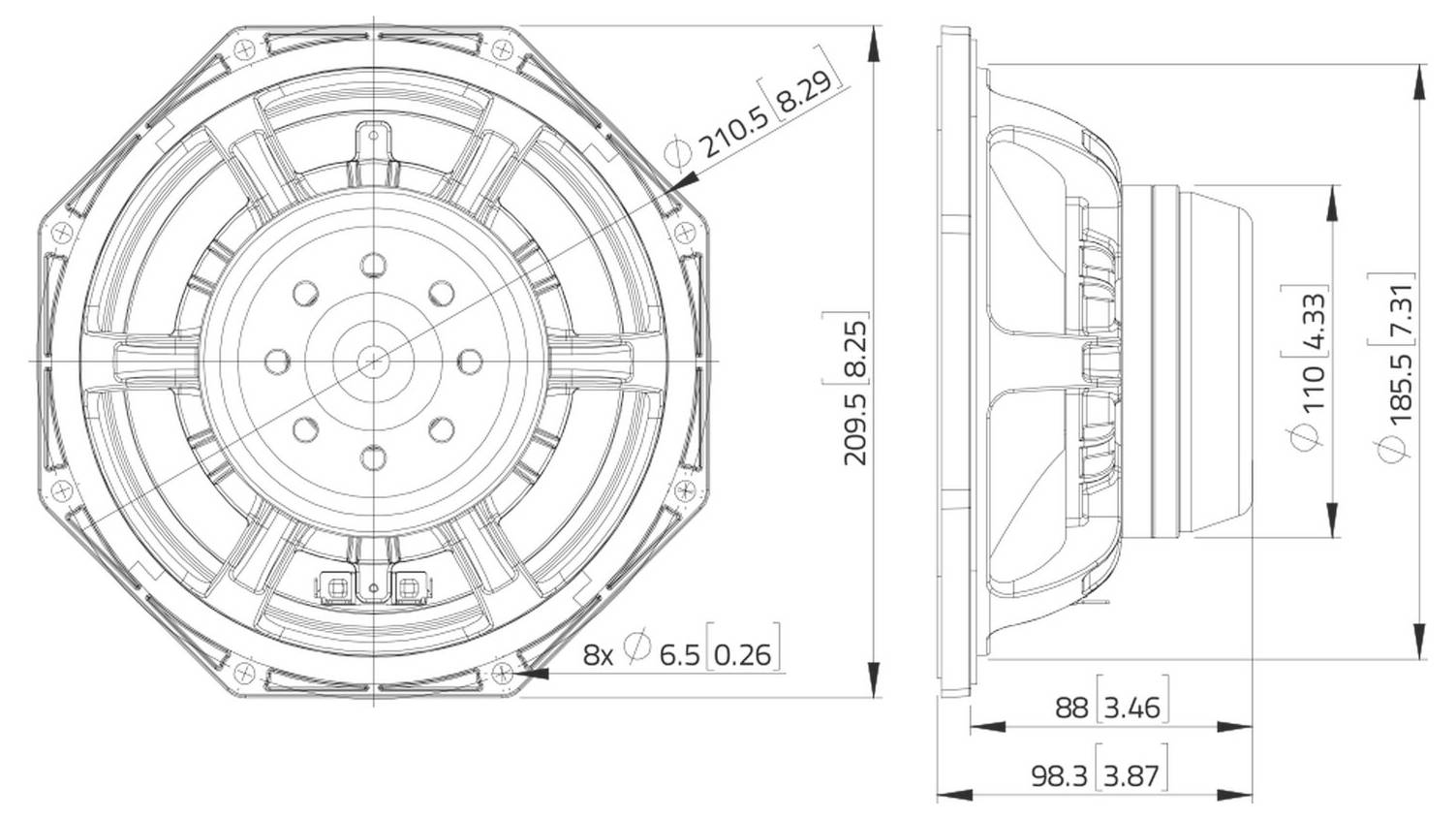

'Technical drawing of a speaker, front and side views. Dimensions labeled: diameter 210.5 mm, depth 110 mm, bolt circle 209.5 mm.'

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 8" woofer with neodymium magnet; basket material: Aluminium; cone material: Cardboard/paper; 2" moving coil woofer
Rating 200 W AES
Frequency range 80 5000 Hz
Sensitivity 96.5 dB

Product type: Subwoofer

Speaker size (inch): 8 inch

Max. load: 200 W

Min. frequency: 82 Hz

Max. frequency: 5000 Hz

Impedance: 8 Ω

Sound pressure: 96.5 dB

Weight: 2.70 kg

Frequency range: 82 Hz - 5000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729658 Lavoce WAN082.02 8 inch Subwoofer 8 Ω

Description

You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
