Buy Lavoce WSF061.52-16 6.5 inch Subwoofer 125 W 16 Ω

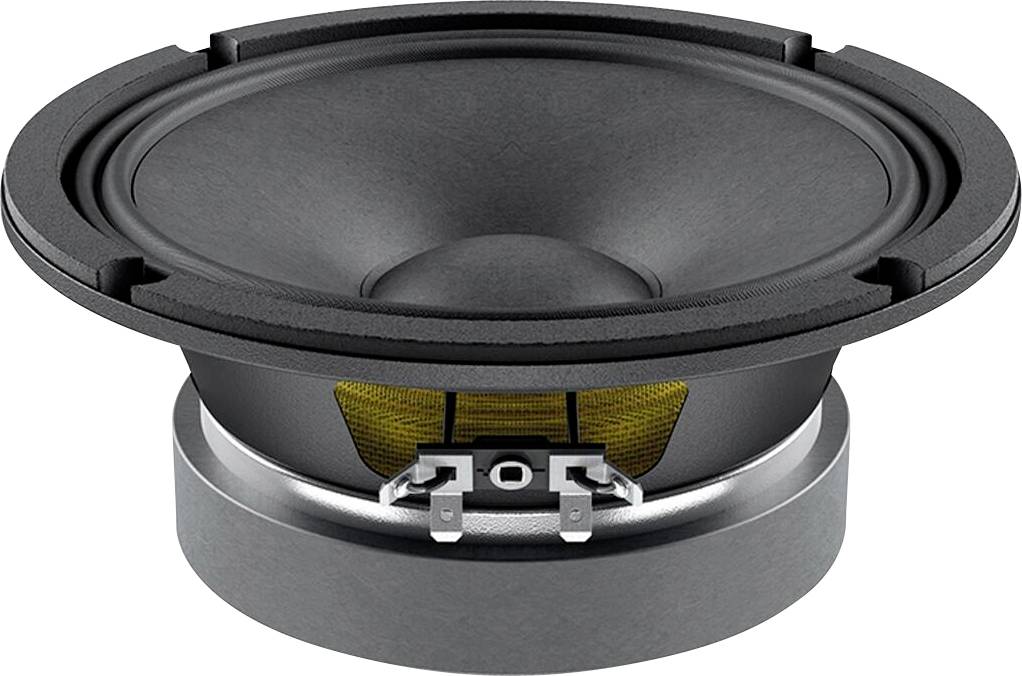

A black and gray speaker with a yellow diaphragm and metal connectors at the base, designed for audio sound reproduction.

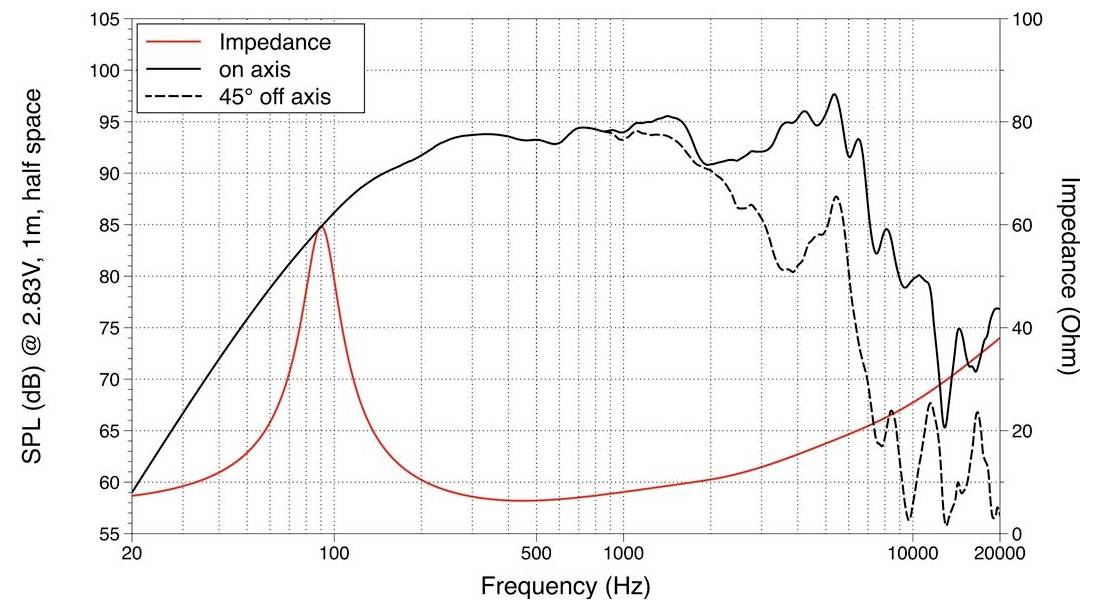

'Graph showing speaker performance: SPL vs Frequency in Hz with lines for Impedance, On axis, and 45° off axis, indicating trends up to 20,000 Hz.'

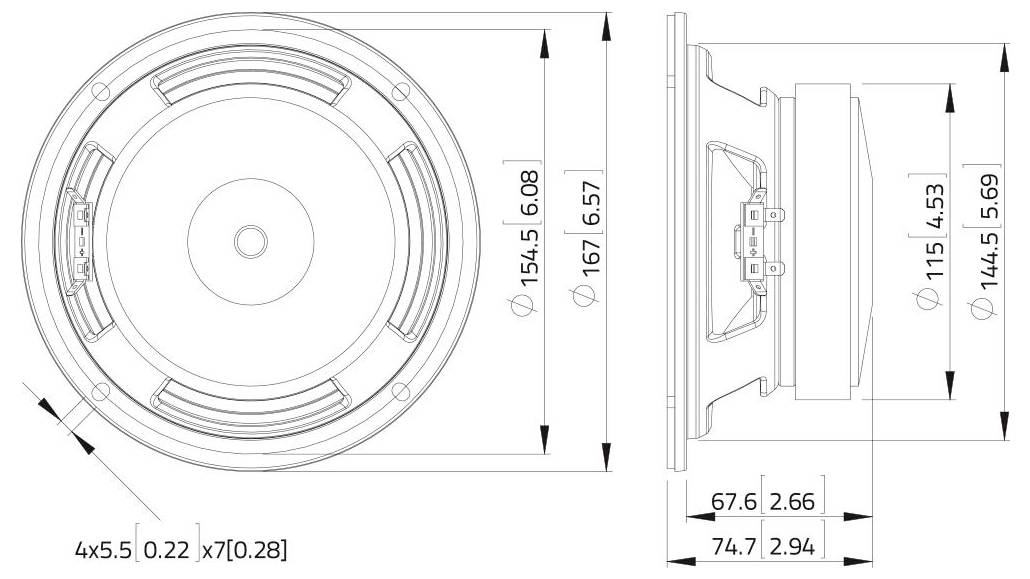

'Speaker technical diagram': Circular speaker front and side view with dimensions. Front view: diameter 167 units. Side view: depth 67.6 units.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Rating: Program: 250 W; Nominal: 125 W AES
Frequency range 90 5000 Hz
Sensitivity 94.5 dB
Impedance 16 Ohm
6.5" woofer with ferrite magnet
Basket material: Steel
1.5" moving coil woofer

Product type: Subwoofer

Speaker size (inch): 6.5 inch

RMS capacity: 125 W

Max. load: 250 W

Max. frequency: 5000 Hz

Min. frequency: 90 Hz

Impedance: 16 Ω

Sound pressure: 94.5 dB

Weight: 1950 g

Frequency range: 90 Hz - 5000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729652 Lavoce WSF061.52-16 6.5 inch Subwoofer 125 W 16 Ω

Description

125 W AES, 16 ohm, 94.5 dB, 90 - 5000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
