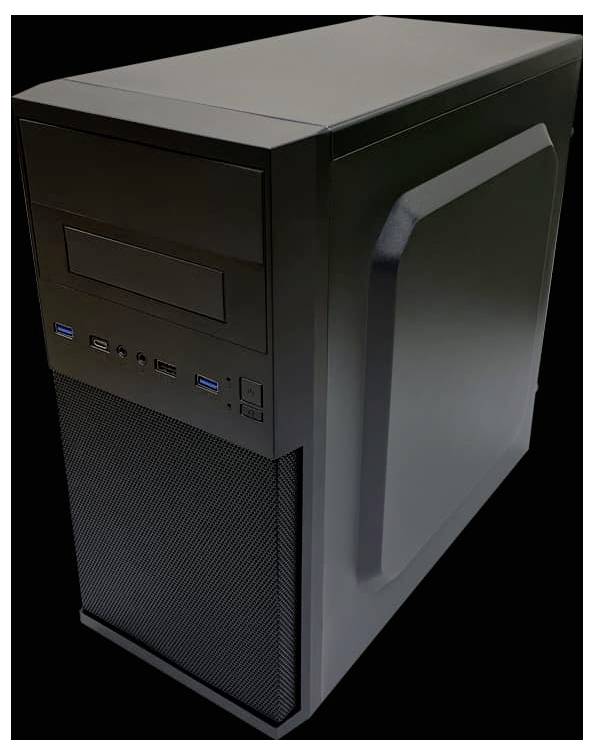

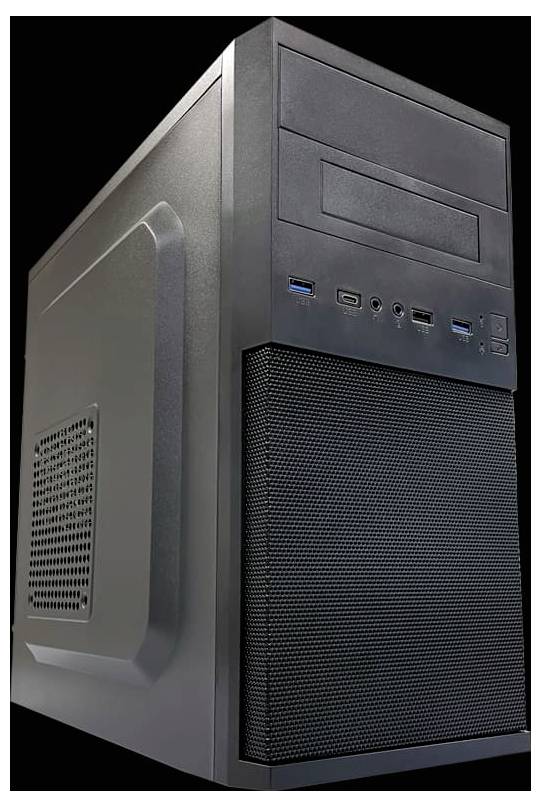

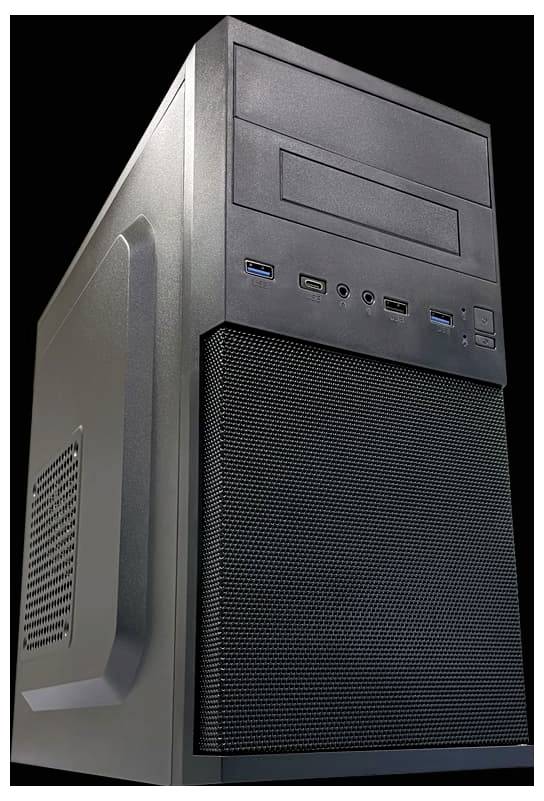

LC Power LC-2004MB Microtower PC casing Black
EAN:
Part number:
Item no:
Datasheet (PDF)
LC Power LC-2004MB Microtower PC casing
Technical specifications
- Micro ATX, Mini ITX motherboard
- 1) 2x 2.5" + 2x 3.5" (without 3.5" external); 2) 2x 2.5" + 1x 3.5"; 3) 1x 2.5" + 3x 3.5" (without 3.5" external); 4) 1x 2.5 + 2x 3.5"

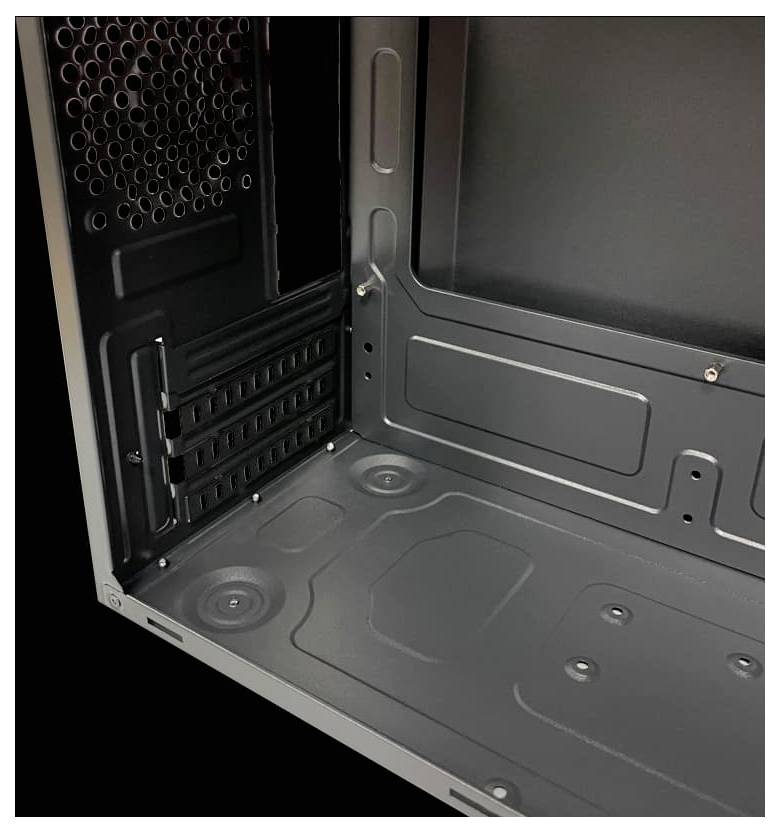

- PCI slots (total/screw-on): 4/1

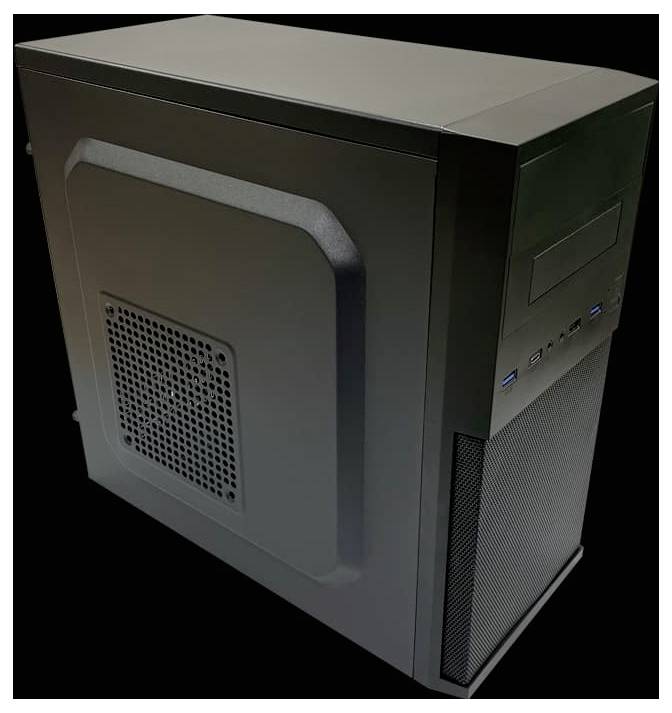

- Internal case fan (total/delivery): 3/0; front: 1x 120 mm; rear side: 1x 8 mm; side: 1x 120 mm
- Case material: Metal, plastic
- Cage dimensions (HxWxD) 345 x 170 x 325 mm
- Graphics cards up to 270 mm long
- CPU-cooler up to 140 mm height
- Power supply up to 160 mm long
- Front panel: Black
- Product type
PC casing
- Case type
Microtower
- Factory colour
Black
- Interfaces (front)
USB C® 3.2
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
HD Audio
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
3
- 8.9 cm (3.5") external slots
1
- 13.3 cm (5.25") slots
1
- Features
with faceplate
- Width
190 mm
- Height
348 mm
- Depth
370 mm
- Weight
2.53 kg
- Form factor
Micro-ATX
- No. of USB 3.0 ports
1 x
- No. of USB 2.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 190 x 348 x 370 mm
- No. of USB 3.2
2 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3414382 LC Power LC-2004MB Microtower PC casing Black
User & Safety Instructions
User & Safety Instructions 3414382 LC Power LC-2004MB Microtower PC casing Black
Description
Flexible, compact & simple - Micro-ATX
Optimised for Micro-ATX & Mini-ITX systems

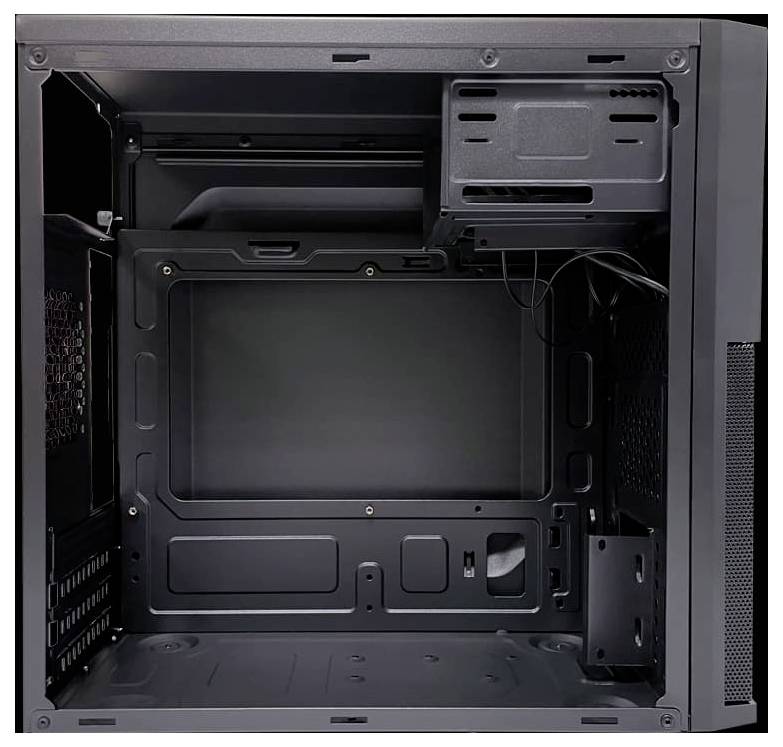

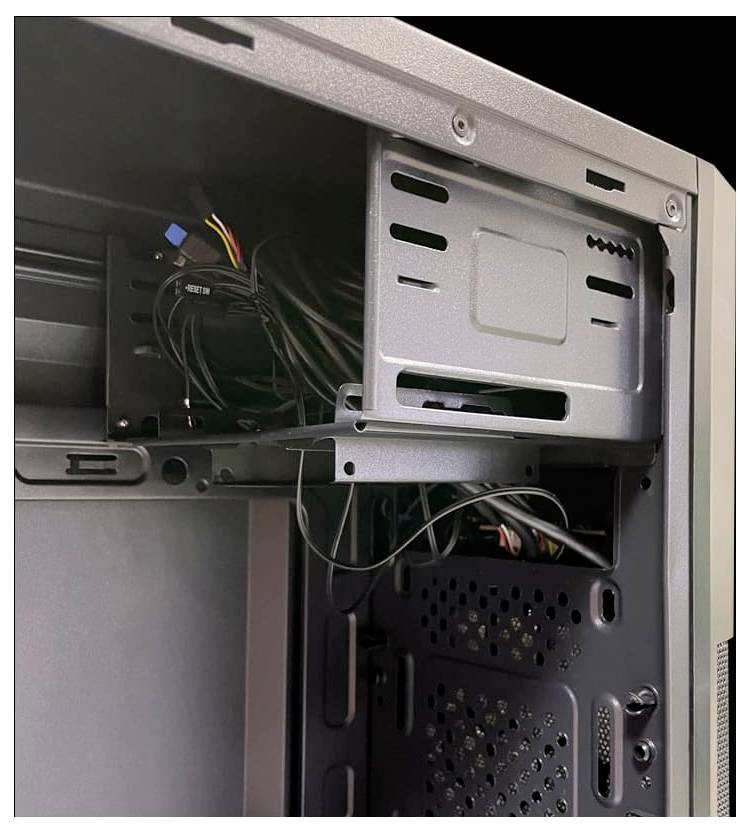

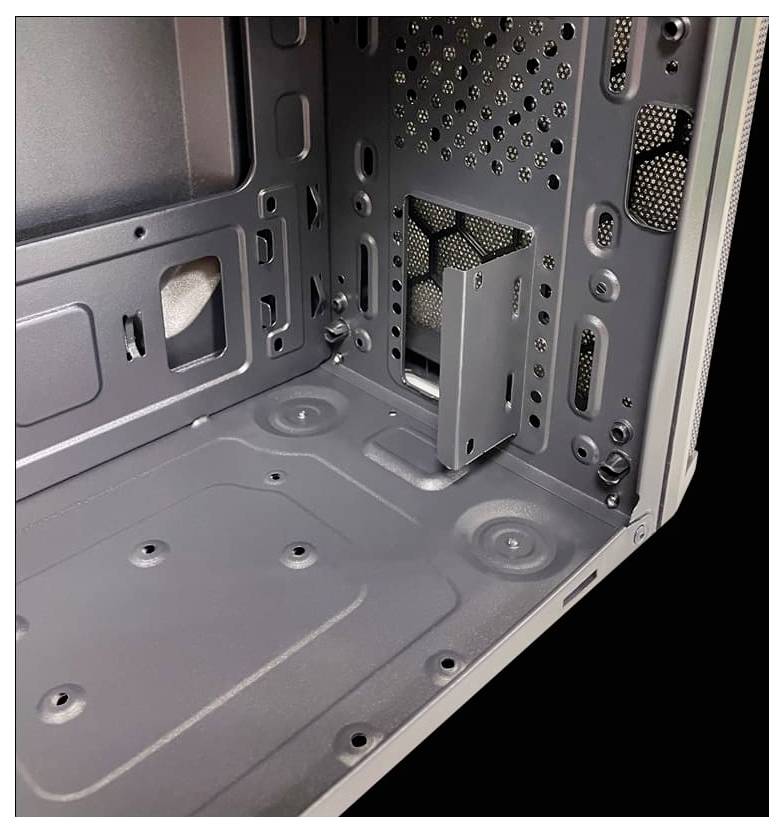

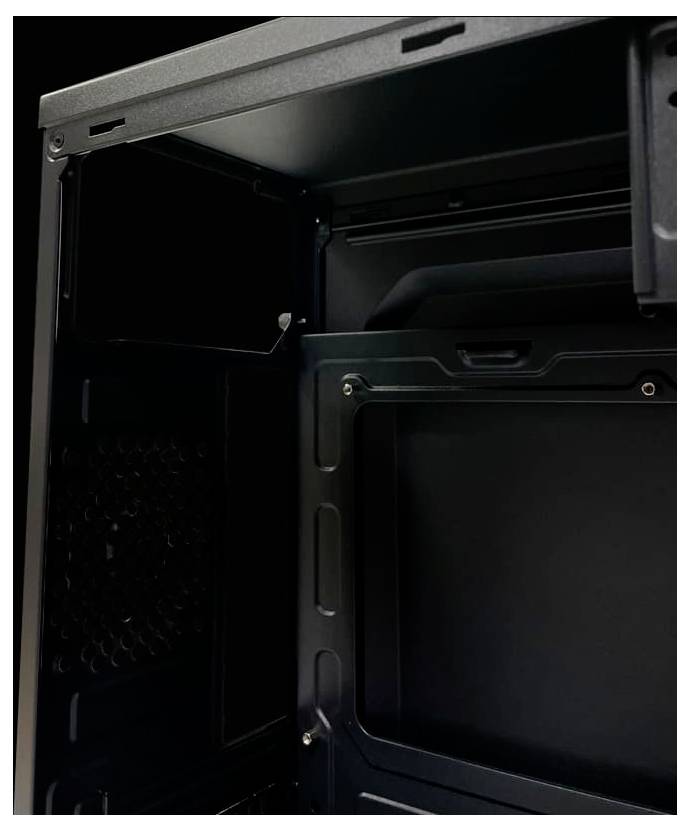

The 2004MB-V3 M ATX housing offers versatile configuration options for compact PC builds. Thanks to the well thought-out design, up to four hard disks and three housing fans can be mounted. The power supply is placed at the top, leaving more space for components at the bottom. Lateral ventilation slots improve air circulation and efficient cooling. Perfect for powerful and space-saving systems.
Modern connection possibilities
I/O-Panel with USB-C & cable management

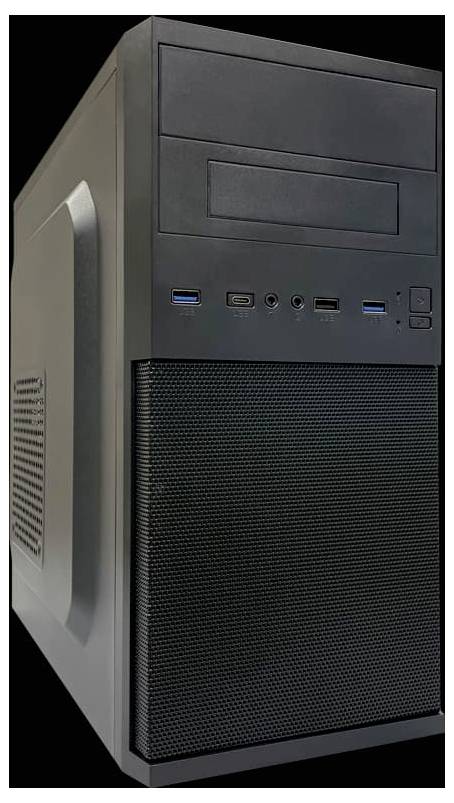

The well-equipped I/O panel offers a USB-C port (USB 3.2 Gen 1x1), two USB-A 3.2 ports, one USB-A 2.0 port and HD audio. This will ensure that you are well equipped for modern peripheral devices. The mainboard tray with cable management provides a tidy optics and optimized air flow. The housing combines functionality with sophisticated design for efficient and elegant PC builds. Ideal for gamers and professional users.
This text is machine translated.
Optimised for Micro-ATX & Mini-ITX systems
The 2004MB-V3 M ATX housing offers versatile configuration options for compact PC builds. Thanks to the well thought-out design, up to four hard disks and three housing fans can be mounted. The power supply is placed at the top, leaving more space for components at the bottom. Lateral ventilation slots improve air circulation and efficient cooling. Perfect for powerful and space-saving systems.
Modern connection possibilities
I/O-Panel with USB-C & cable management
The well-equipped I/O panel offers a USB-C port (USB 3.2 Gen 1x1), two USB-A 3.2 ports, one USB-A 2.0 port and HD audio. This will ensure that you are well equipped for modern peripheral devices. The mainboard tray with cable management provides a tidy optics and optimized air flow. The housing combines functionality with sophisticated design for efficient and elegant PC builds. Ideal for gamers and professional users.
This text is machine translated.
