Name: LC Power LC1200P2 V3.1 Platinum PC power supply unit 1200 W ATX 80 PLUS Platinum
Brand: LC Power
SKU: 3443634

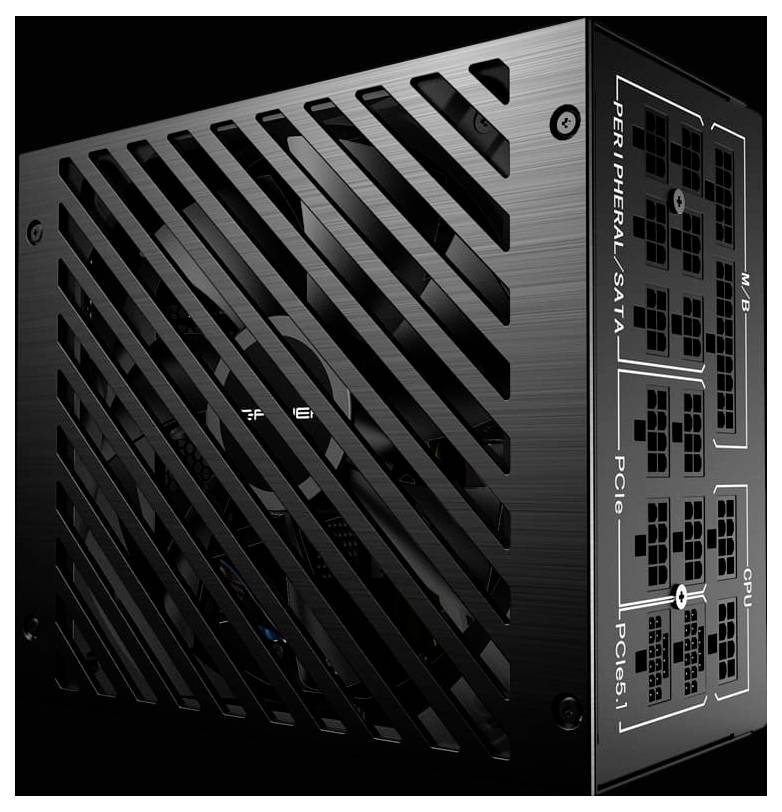

A sleek black computer power supply with labeled ports for 'M/B', 'CPU', 'PCIe', and 'Peripheral SATA', featuring a vented design.

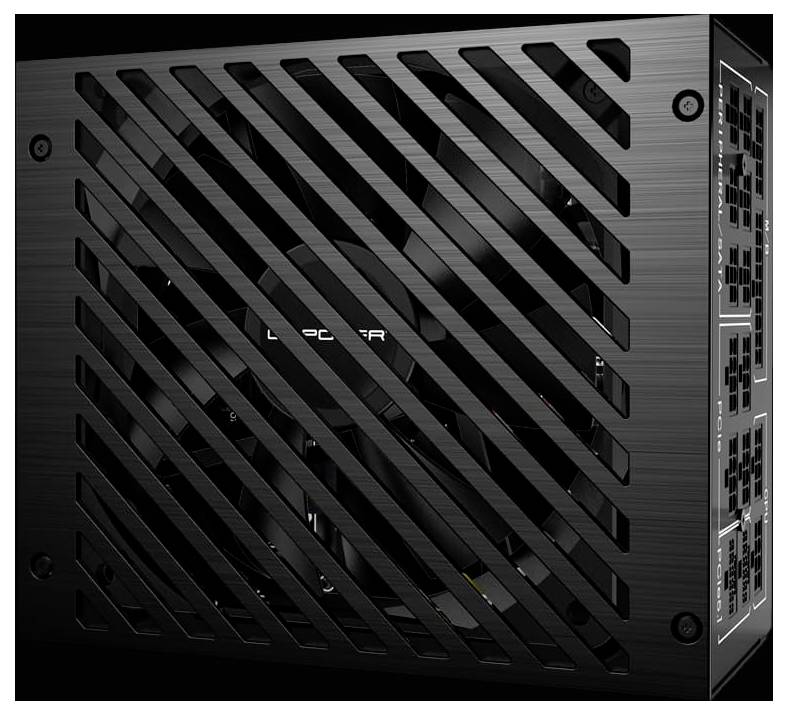

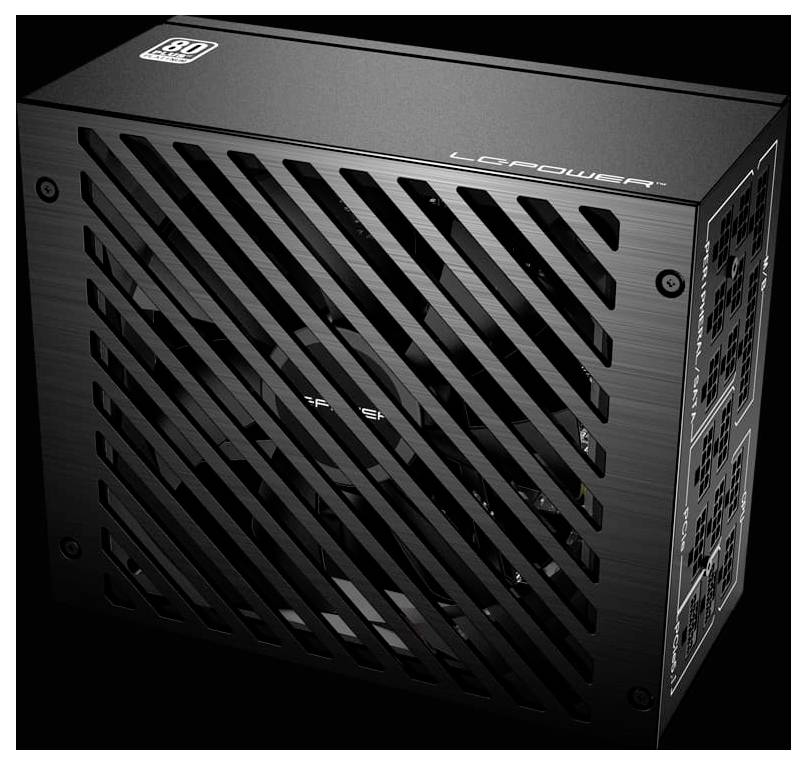

A black computer power supply unit with a slatted cover, showing connectors on the right side.

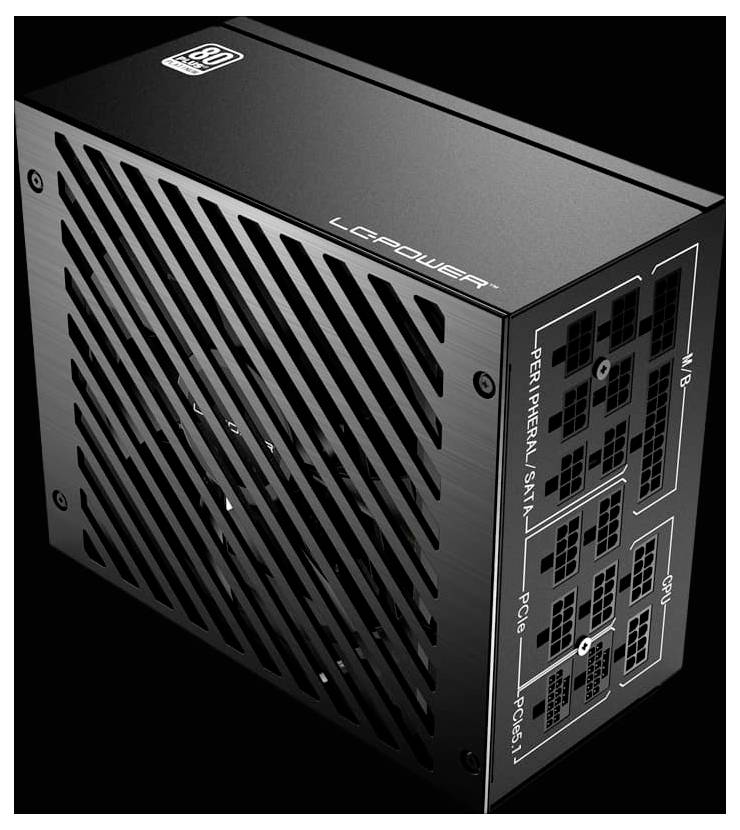

A black LEPOWER power supply unit with multiple labeled ports for peripherals, SATA, PCI-E, and CPU connections on the side panel.

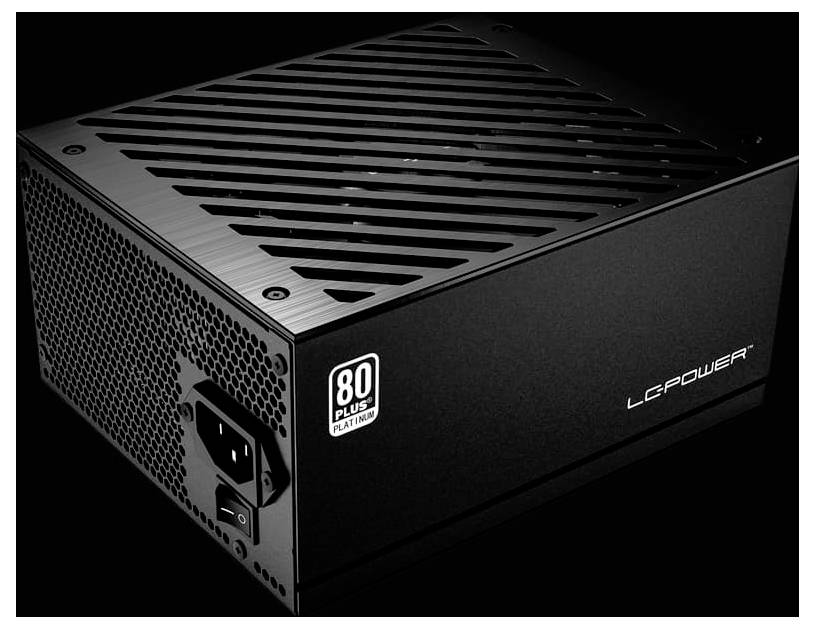

A black LG Power 80 Plus Platinum power supply unit with vented design and input port.

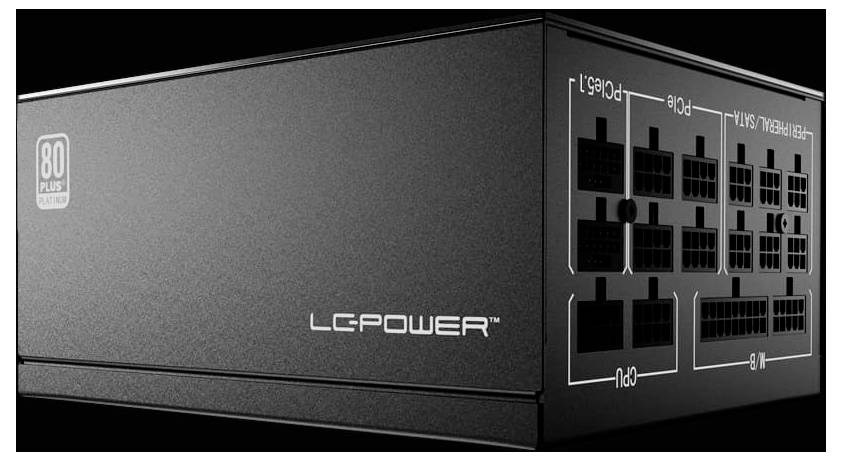

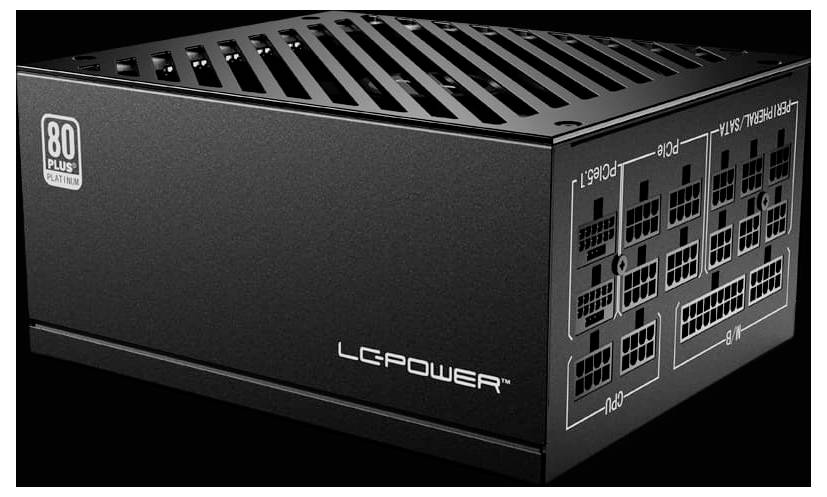

A black LC-Power power supply unit with '80 Plus Gold' certification label, featuring multiple connection ports on one side.

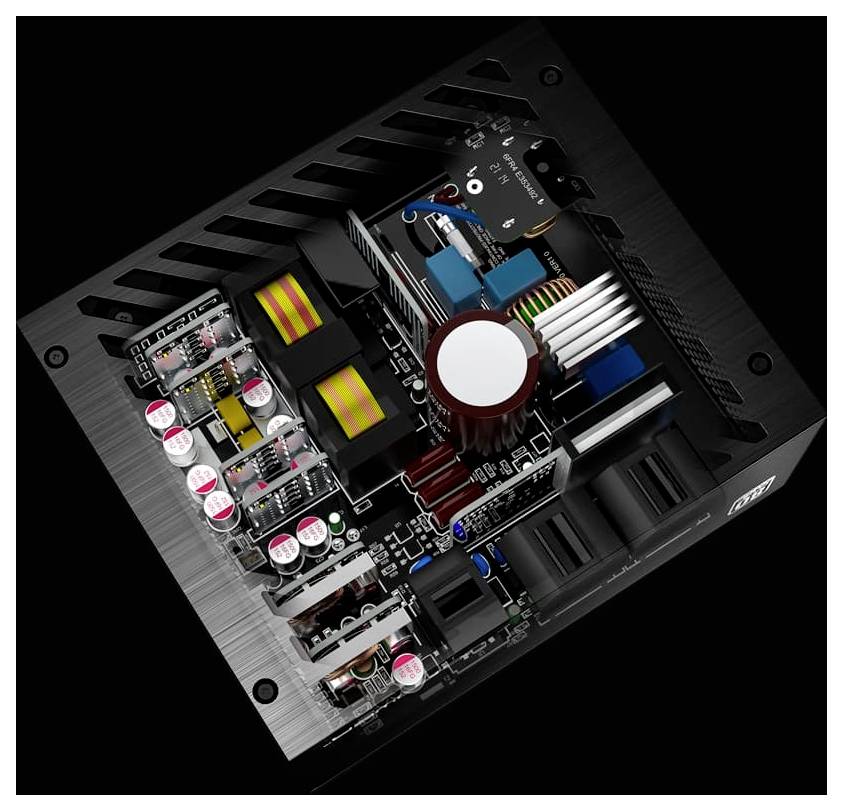

Inside view of a computer power supply unit showing capacitors, heat sinks, and coils on a circuit board, highlighting electrical components.

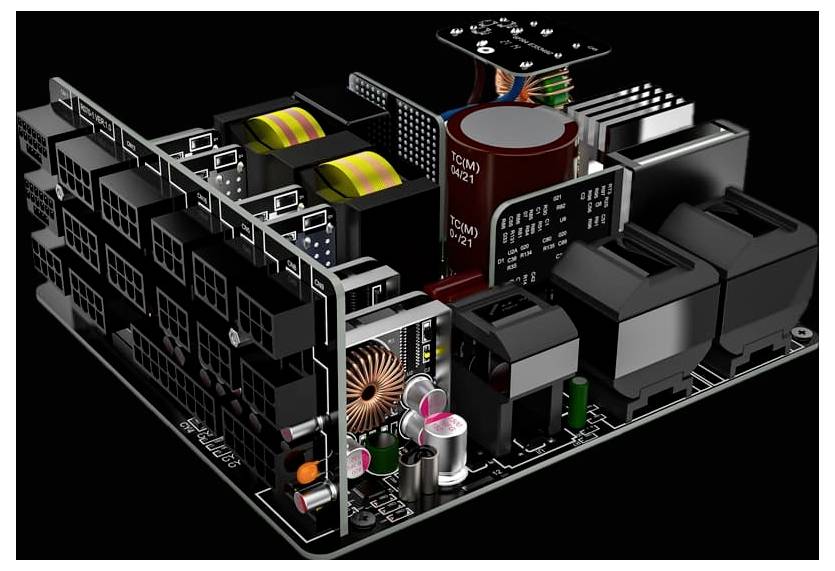

An electronic circuit board with various components, including capacitors, coils, and heat sinks, on a black background.

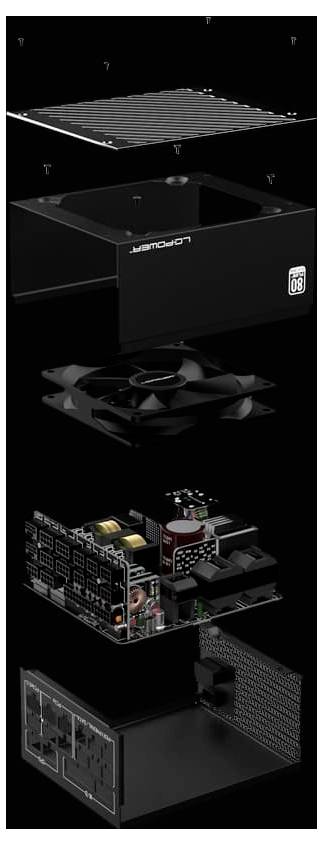

Exploded view of a computer power supply, showing the grille, casing, fan, circuitry, and ports separated, highlighting internal components.

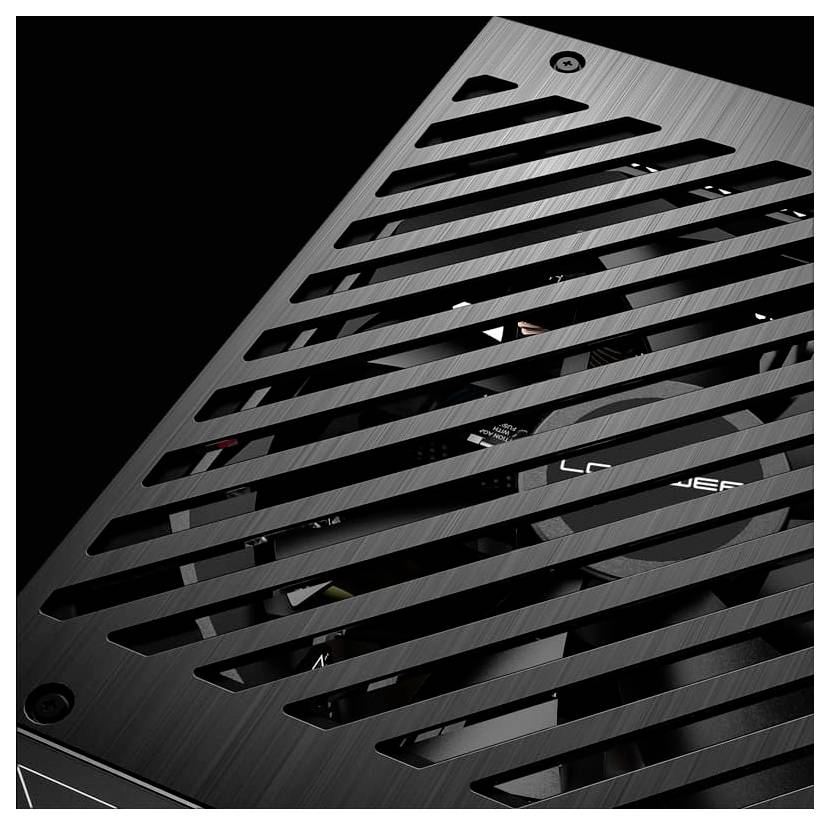

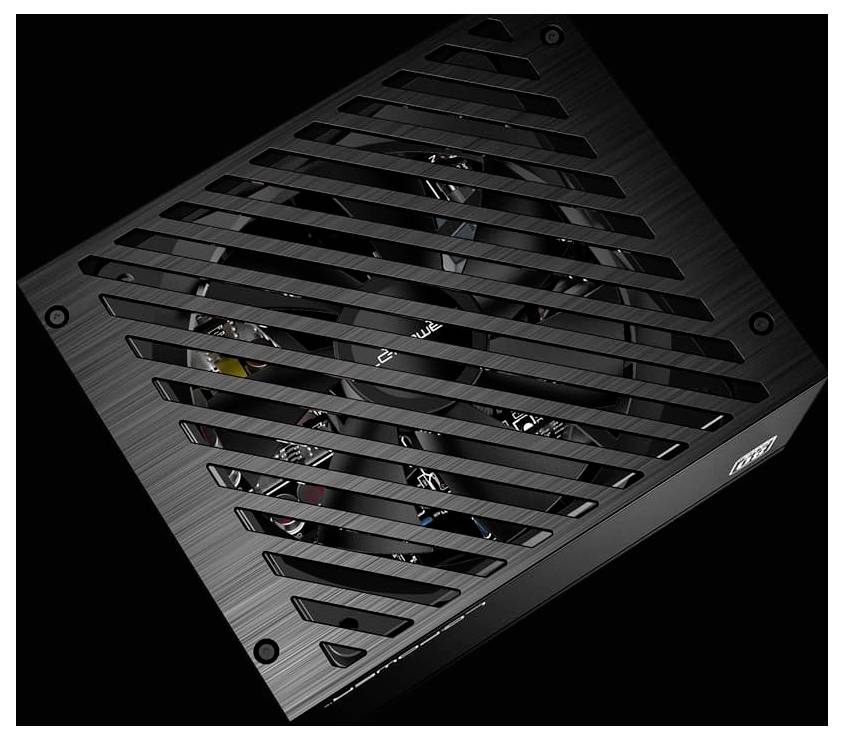

A close-up of a computer component with a metal grill cover, revealing a fan inside, likely part of a power supply or cooling system.

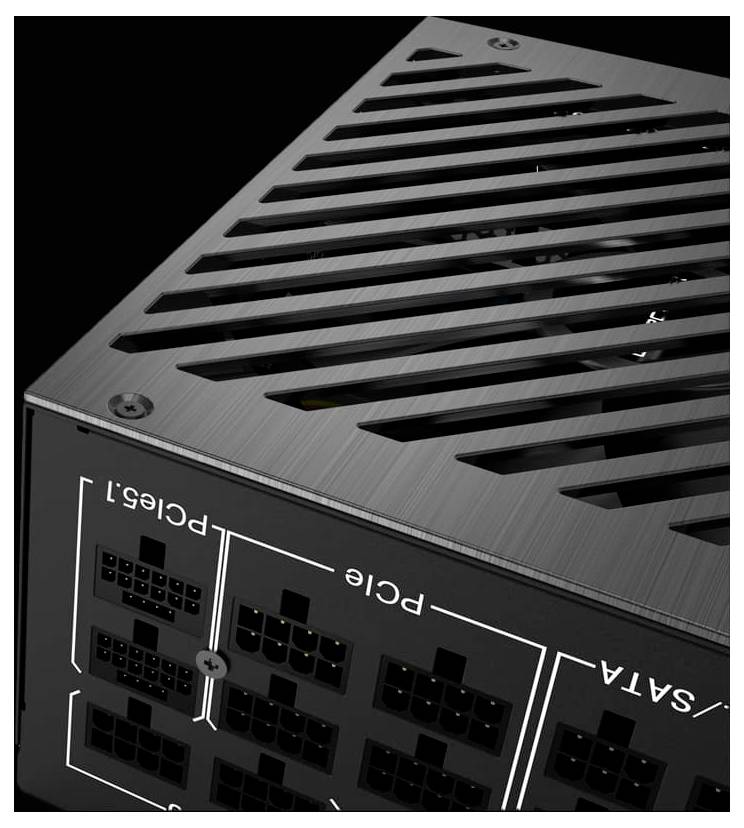

A close-up of a black computer power supply unit with a metal vented top and labeled cable connectors for PCIe and SATA.

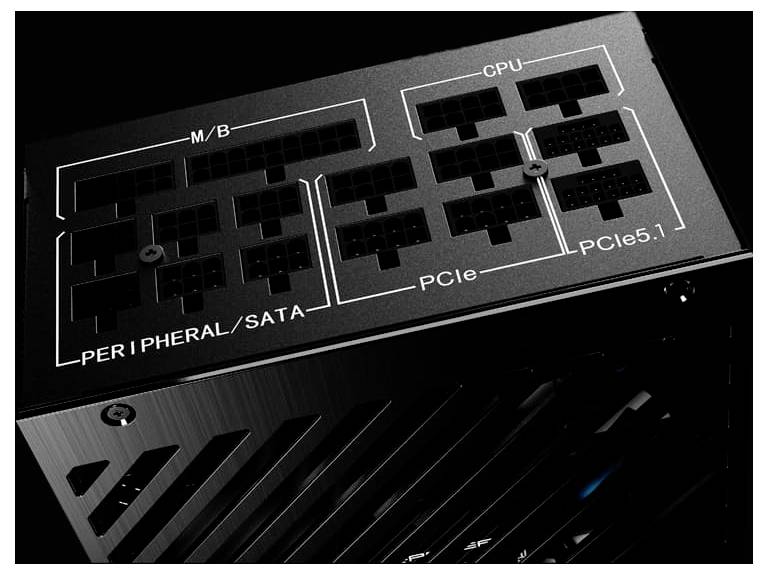

A close-up view of a power supply unit (PSU) showing labeled connectors for 'M/B', 'CPU', 'PCIe', 'PERIPHERAL/SATA', and 'PCIe5.1'.

1/14

Product type

PC power supply unit

PSU output power

1200 W

Modular

Yes

Certification

80 PLUS Platinum

Form factor

ATX

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LC Power LC1200P2 V3.1 Platinum PC power supply unit

Power supply unit output 1200 W
PCI-Express (6+2-Pin) 8x
Cable management Yes
80 PLUS Platinum

Technical specifications

Colour, black
Material: Metal, plastic
Power supply series Platinum Pro-Series
20+4-Pin mainboard:1x 650 mm
4+4-Pin mainboard 12V(8-Pin EPS) 2x 650 mm
4-Pin mainboard 12 V:1x 800 mm
PCI-Express 5.1 12+4-Pin: 2x 650 mm
PCI-Express 6+2-Pin: 4x 675 mm / 4x 750 mm
SATA: 5x 500 mm / 5x 650 mm / 5x 800 mm / 5x 950 mm
Pata: 2x 500 mm / 2x 650 mm / 2x 800 mm
FDD: 1x 900 mm
135 mm fan
PFC: Active
Efficiency: Up to 92%
StandBy consumption: 0.5 W.
Temperature-dependent control For case fans: Yes
Safety circuits: OVP (overvoltage protection), OCP (overcurrent protection), OPP (overvoltage protection), OTP (overheating protection), SCP (short-circuit protection), UVP (undervoltage protection)

Product type: PC power supply unit

PSU output power: 1200 W

Modular: Yes

Certification: 80 PLUS Platinum

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 180 x 86 x 150 mm

Depth: 150 mm

Height: 86 mm

Width: 180 mm

Weight: 3.43 kg

+12 V/DC (1): 100 A

5 V DC: 20 A

4-pin 12 V: 1

20+4-pin.: 1

4+4 pin ATX/EPS 12V: 2

6-pin PCIe: 8

Features: ATX 3.1
PCIe Gen 5.1

Power rating: 751 W -

3.3V DC: 20 A

Operating voltage: 100 - 240 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3443634 LC Power LC1200P2 V3.1 Platinum PC power supply unit 1200 W ATX 80 PLUS Platinum

Description

1200 Watt & an improved 135-mm fan
The fully modular Platinum Pro series power supply LC1200P2 V3.1 offers impressive 1200 watts of power, making it a powerful power supply solution for demanding PC systems. Fitted with an improved 135-mm high-pressure fan it provides for an efficient cooling and a reliable and quiet operation, even under extreme conditions.

80 PLUS Platinum certification
The 80 PLUS Platinum power supply LC1200P2 V3.1 is the ideal model for extremely powerful gaming PCs and other demanding applications. With an efficiency of over 92% at 50% load it offers outstanding energy savings and is thus the optimum choice for modern high-end systems. The power supplies of the Platinum Pro series guarantee first-class performance and highest reliability even under high load.

Strong connectors for strong performance
With two high-performance PCI-Express 5.1-pin connectors and eight PCI-Express 6+2-pin connectors, it enables the direct and reliable power supply for several graphics cards and other powerful components. These dedicated ports ensure stable performance and optimal power consumption for a smooth gaming experience or demanding graphics applications.

Japanese condensers
Through the use of high-quality Japanese capacitors, the LC1200P2 V3.1 delivers a constant stable power even under full load. The high quality of these components reduces the risk of failures to a minimum even during continuous operation.

Fully modular & clean look
Thanks to the fully modular cable management of the LC1200P2 V3.1, every housing is clean and the cable chaos belongs to the past. From now on, only the necessary cables are available in the housing! Clear look thanks to fully modular cable management No unnecessary cable in the casing air flow is optimized Low temperature and whisper-quiet black sleeved cables

Fan control technology
With the temperature-dependent regulation of fan speed the LC1200P2 V3.1 optimizes the system completely by itself At cooler temperatures, it knows that less speed is needed and thus consumes less. At warmer temperatures, it can increase the speed to cool the system optimally.

This text is machine translated.
