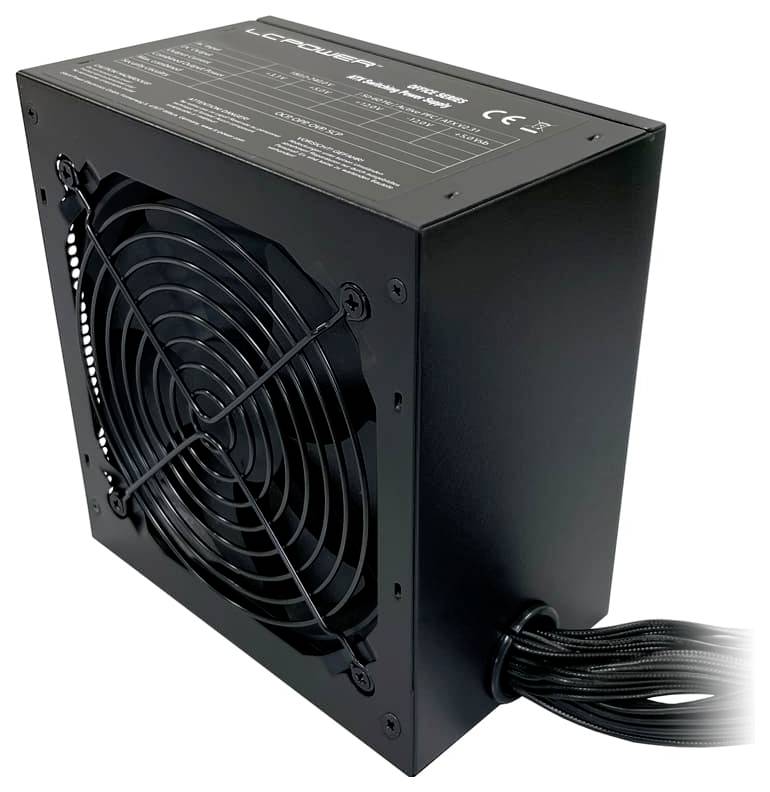

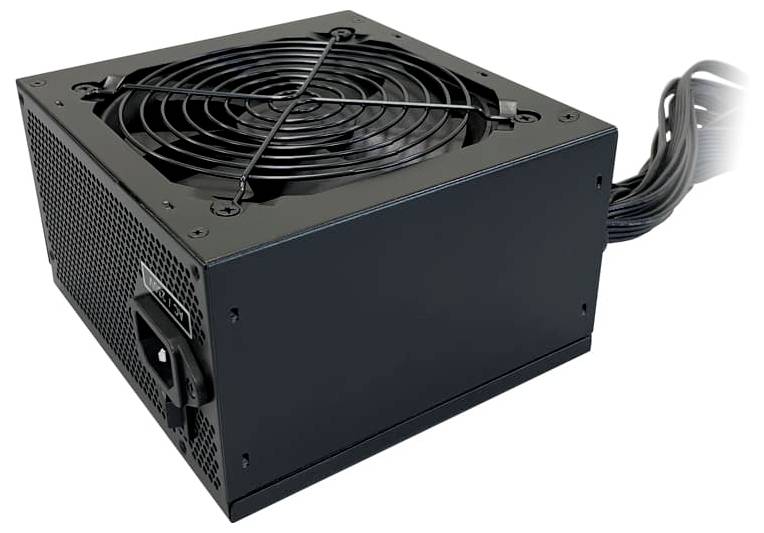

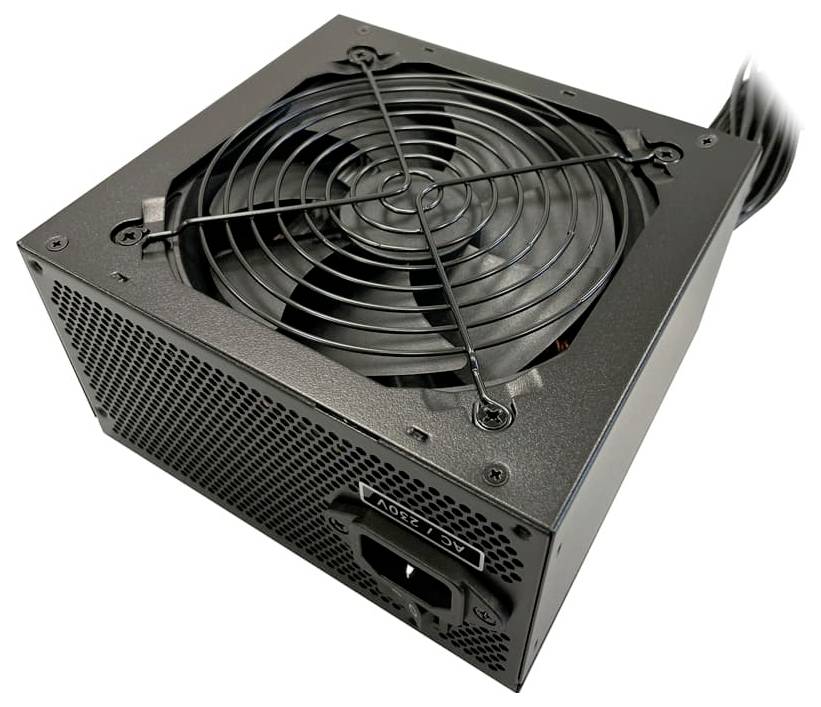

LC Power LC420H-12 V2.31 PC power supply unit 400 W ATX No certification
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
400 W
Certification
No certification
Form factor
ATX
Factory colour
Black
Highlights & Details

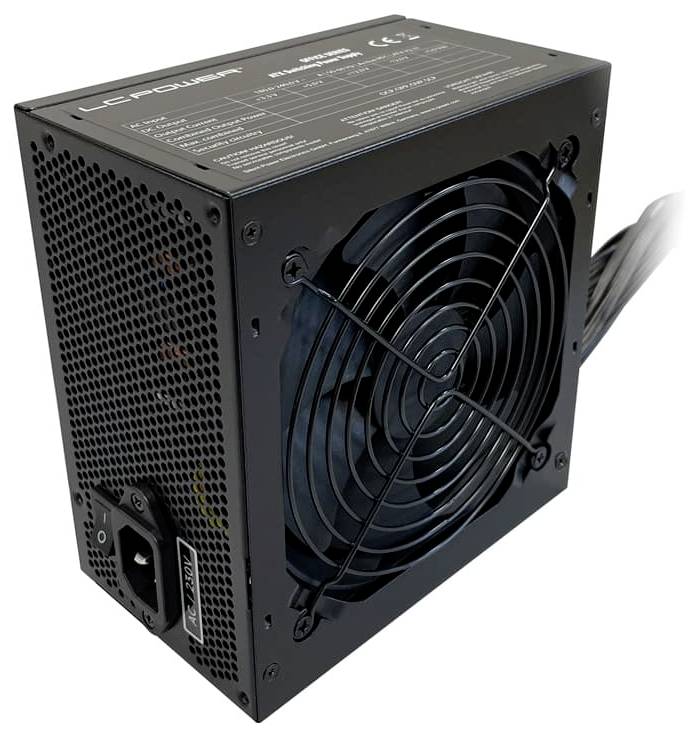

LC Power LC420H-12 V2.31 PC power supply unit
- Power supply unit output 400 W

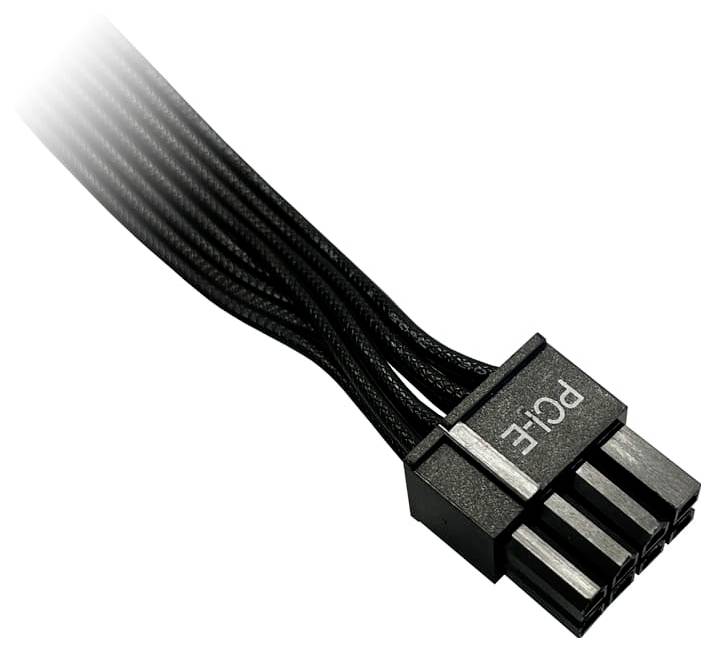

- PCI-Express (6+2-Pin) 1x
- Cable management
- No certification
Technical specifications
- ATX version: 2.31
- PFC: Active
- StandBy consumption: 0.5 W.
- Efficiency: Up to 85%
- Safety circuits: OVP (overvoltage protection), OCP (overcurrent protection), OPP (overvoltage protection), SCP (short-circuit protection)
- Material: Metal, plastic
- Product type
PC power supply unit
- PSU output power
400 W
- Certification
No certification
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
1.23 kg
- -12V / DC
0.5 A
- +12 V/DC (1)
33.3 A
- 5 V DC
14 A
- +5V / DC SB
2 A
- 24-pin
1
- 4+4 pin ATX/EPS 12V
1
- 6-pin PCIe
1
- 5-pin SATA
2
- Power rating
0 - 500 W
- Fan size
120 mm
- 3.3V DC
14 A
- Power supply (details)
180 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3533502 LC Power LC420H-12 V2.31 PC power supply unit 400 W ATX No certification
Description
Efficient, stable and reliable
400 W power with strong 12 V line and up to 85% efficiency
The LC-Power power supply LC420H-12 V2.31 of the Office series provides enough Power for typical office systems and simple multimedia applications with 400 W total power and a powerful +12 V line (33.3 A). Thanks to an efficiency of up to 85 % the power supply works energy-efficiently and remains reliably in continuous operation. The four integrated protective circuits provide additional security and stable operation – Ideal for long-life systems in office everyday life.

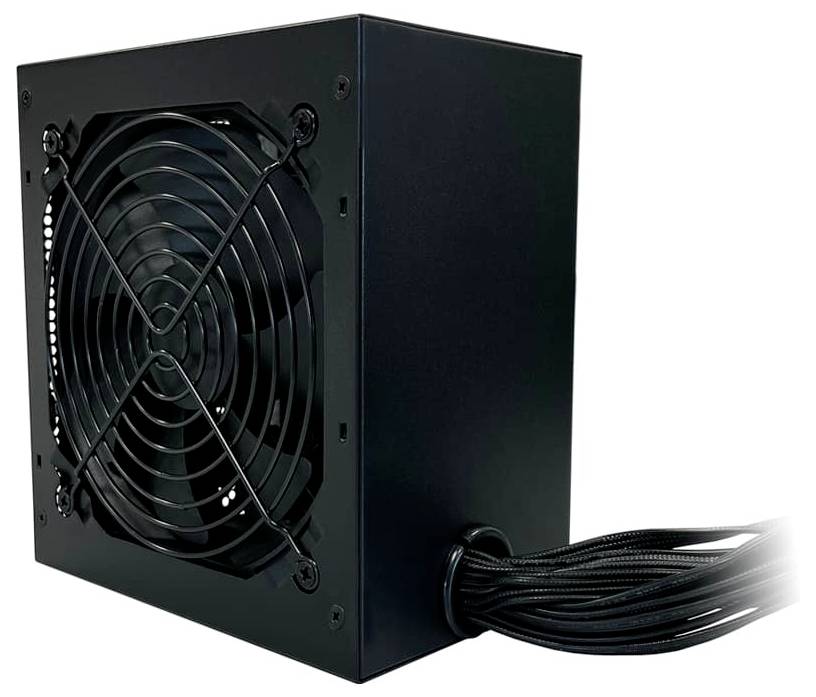

Quiet cooling & clean cabling120-mm fans & black sleeved cables for optimal integration

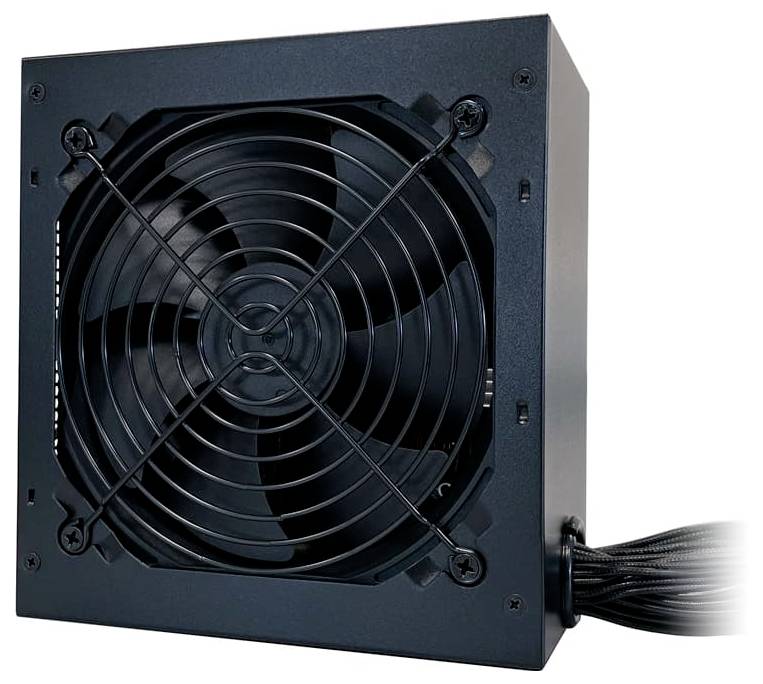

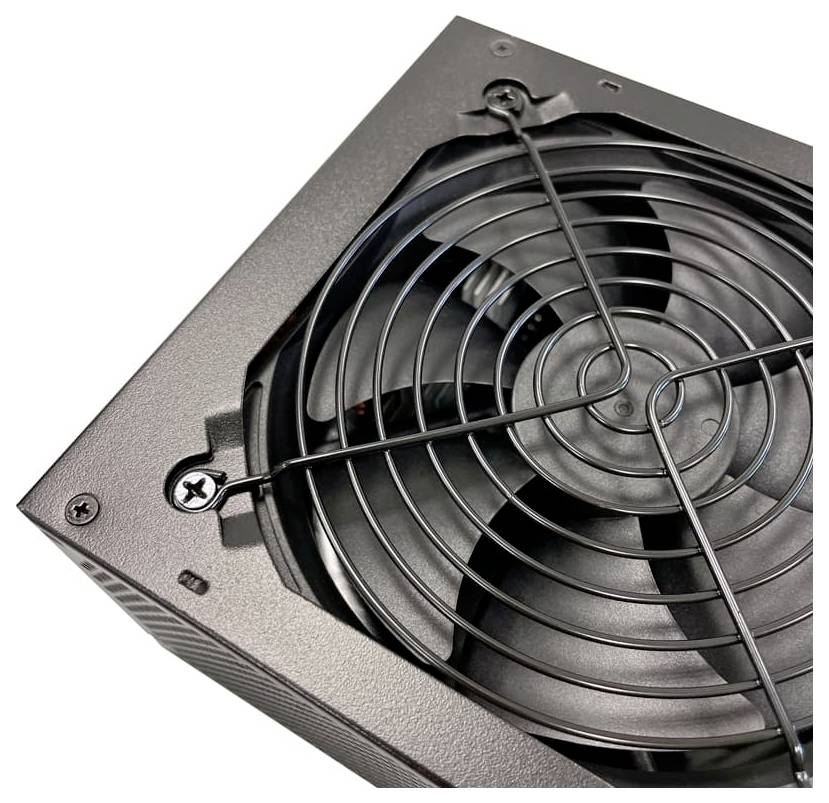

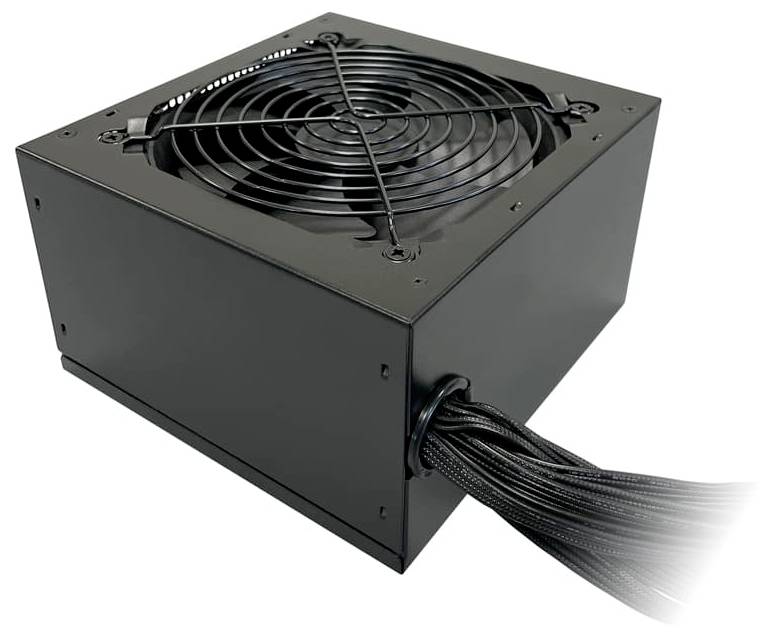

The built-in 120 mm fan of the LC420H-12 V2.31 provides reliable airflow and helps keep your system stable in everyday use. The black sleeved cables simplify cable management and clean housing. Thus, the power supply merges optically and functionally Ideal in modern Office-PCs.
This text is machine translated.
