LC Power LC500-12 V2.31 PC power supply unit 350 W ATX 80 PLUS Bronze
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
350 W
Modular
No
Certification
80 PLUS Bronze
Form factor
ATX

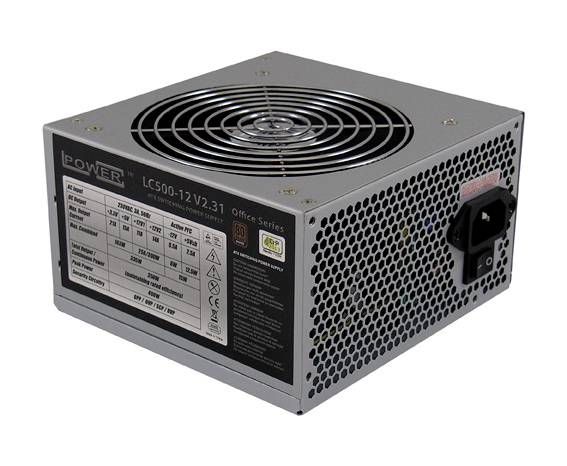

LC Power LC500-12 V2.31 PC power supply unit
Highlights & Details
- Power supply unit output 350 W
- PCI-Express (6+2-Pin) x
- Cable management No
- 80 PLUS Bronze
Technical specifications
- Product type
PC power supply unit
- PSU output power
350 W
- Modular
No
- Certification
80 PLUS Bronze
- Form factor
ATX
- Factory colour
Grey
- Dim
(W x H x D) 150 x 85 x 140 mm
- Depth
140 mm
- Height
85 mm
- Width
150 mm
- Weight
1.38 kg
- -12V / DC
0.5 A
- +12 V/DC (1)
11 A
- +12V DC (2)
14 A
- 5 V DC
15 A
- Power rating
0 - 500 W
- Design height
85 mm
- Fan size
120 mm
- 3.3V DC
21 A
- Power supply (details)
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2901172 LC Power LC500-12 V2.31 PC power supply unit 350 W ATX 80 PLUS Bronze
Description
The OFFICE SERIES of LC-POWER offers a good ratio of price and performance: Through the 120mm fan the LC500-12 V2.31 enables a soft and stress-free working, in the office as well as at home. Despite low volume, the adapter provides a very good cooling performance for your system by air ventilation grids on the rear side. The power supply is fitted with all the relevant connections of the office sector.
Through modern power-saving technology the power consumption in the standby mode is reduced (0.21W) and the efficiency of your power supply is increased to up to 88.63%.
This text is machine translated.
Through modern power-saving technology the power consumption in the standby mode is reduced (0.21W) and the efficiency of your power supply is increased to up to 88.63%.
This text is machine translated.
Features
- Total power 350 W.
- AC input voltage 230 V
- Peak current 400 W. Motherboard connector 20+4 pin ATX. Purpose: PC
- Power Supply Unit (PSU) Form Factor: ATX
- 80 Plus certification: 80 PLUS Bronze. Product color: Grey
- Fan diameter 12 cm
- Number of fans: 1 fans. Width 150 mm
- Depth: 140 mm
- Height: 85 mm
