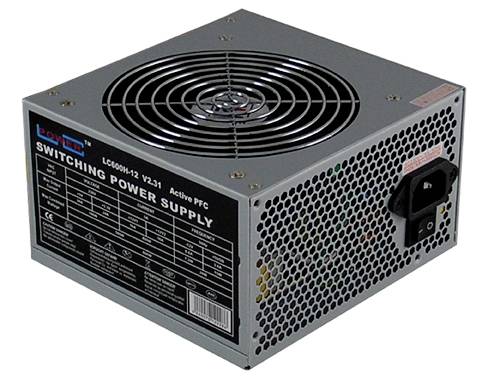

LC Power LC600H-12 V2.31 PC power supply unit 600 W ATX
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
600 W
Modular
No
Form factor
ATX
Factory colour
Black
LC Power LC600H-12 V2.31 PC power supply unit
Highlights & Details
- Power supply unit output 600 W
- PCI-Express (6+2-Pin) 1x
- Cable management No
Technical specifications
- Product type
PC power supply unit
- PSU output power
600 W
- Modular
No
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
1.47 kg
- +12 V/DC (1)
20 A
- +12V DC (2)
20 A
- 5 V DC
24 A
- 6-pin PCIe
1
- Power rating
501 - 750 W
- Design height
86 mm
- Cooling
Active
- Fan size
120 mm
- 3.3V DC
24 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2892097 LC Power LC600H-12 V2.31 PC power supply unit 600 W ATX
Description
The OFFICE SERIES of LC-POWER offers a good ratio of price and performance: Through the 120mm fan the LC600H-12 V2.31 enables a soft and stress-free working, in the office as well as at home. Despite the low volume the power supply offers a very good cooling for your system through the honeycomb-like ventilation grid at the rear side. The power supply is fitted with all the relevant connections of the office sector.
600 W max. / Peak
120 mm fan
1x PCI Express 6-Pin & 1x PCI Express 6+2-Pin
With 6 bits. Active-PFC (power-factor correction for efficient use of the electricity consumed) and all relevant safety circuits
This text is machine translated.
600 W max. / Peak
120 mm fan
1x PCI Express 6-Pin & 1x PCI Express 6+2-Pin
With 6 bits. Active-PFC (power-factor correction for efficient use of the electricity consumed) and all relevant safety circuits
This text is machine translated.
Features
- Total power 600 W.
- Power factor correction filter (PFC): Active
- Max. Output current (+3.3V): 24 A. Motherboard connector 20+4 pin ATX. Purpose: PC
- Power Supply Unit (PSU) Form Factor: ATX
- Certification CE Product color: Black
- Cooling: Active
- Fan diameter 12 cm Width 150 mm
- Depth: 140 mm
- Height: 86 mm
