Name: LC Power LC850P2 V3.1 Platinum PC power supply unit 850 W ATX 80 PLUS Platinum
Brand: LC Power
SKU: 3443632

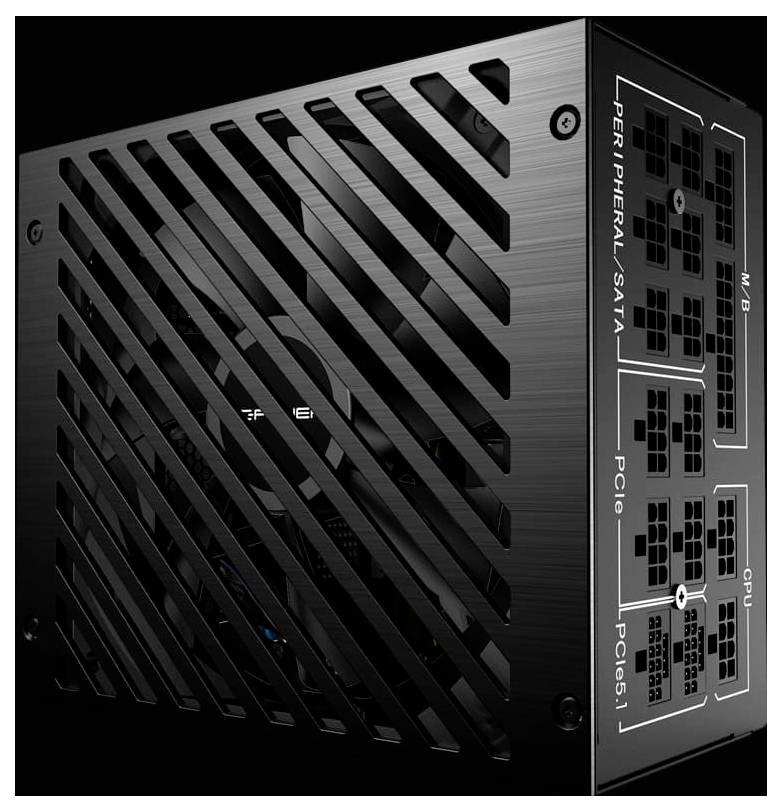

A black modular power supply unit with labeled ports for 'Peripheral SATA', 'MB', 'PCIe', and 'CPU'. The casing features slanted grille ventilation.

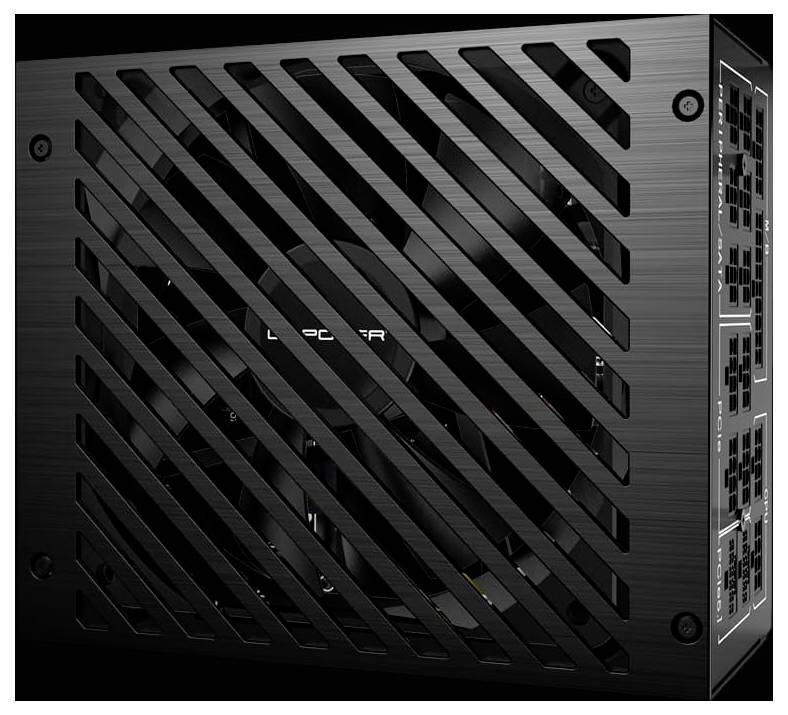

'Close-up of a black, modular power supply unit with a fan and vented grille design, showcasing various connection ports on the side.'

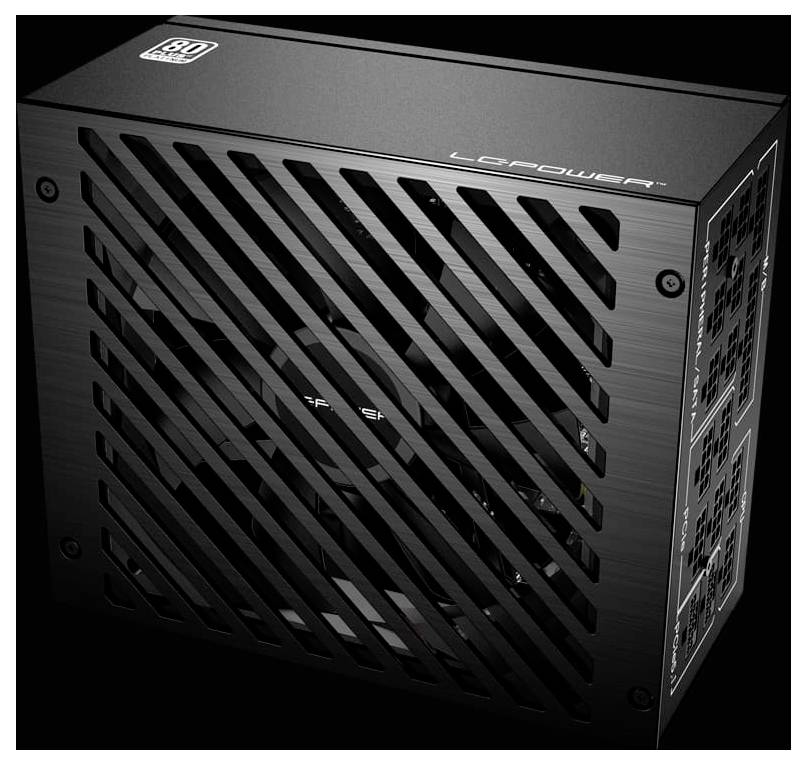

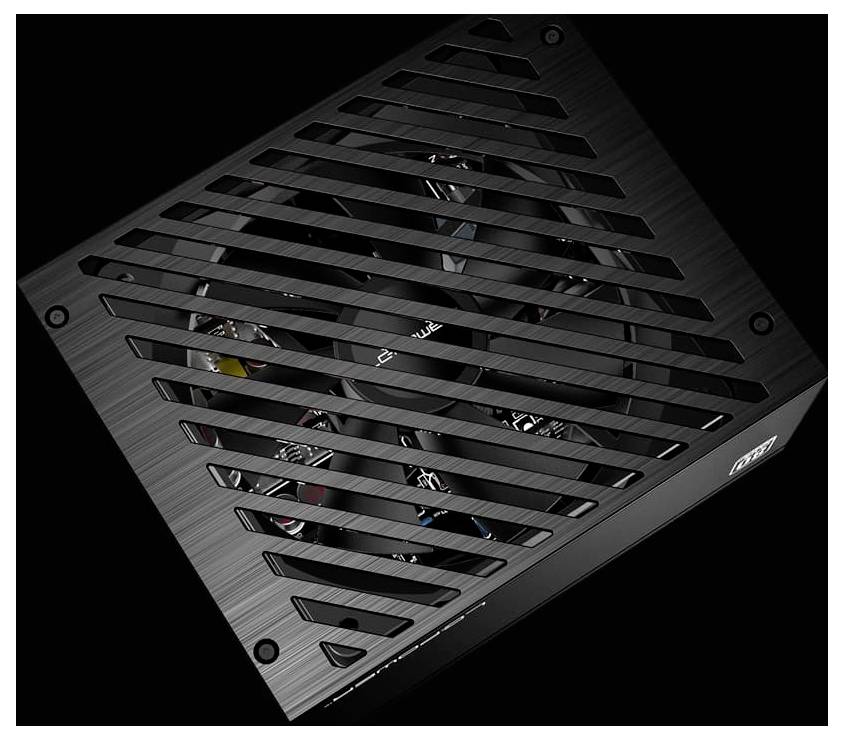

A sleek, modern computer power supply unit with a black metal casing featuring diagonal ventilation slits and multiple connection ports.

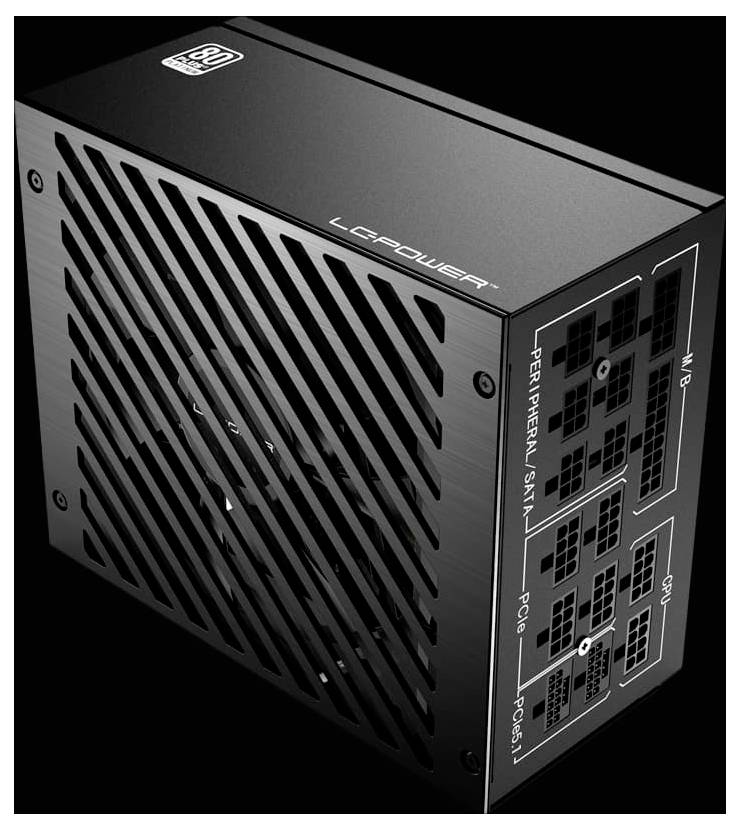

A black power supply unit with labeled ports including 'Peripheral', 'SATA', 'PCIe', and 'CPU'. It is branded 'LEPOWER' and rated '80 PLUS'.

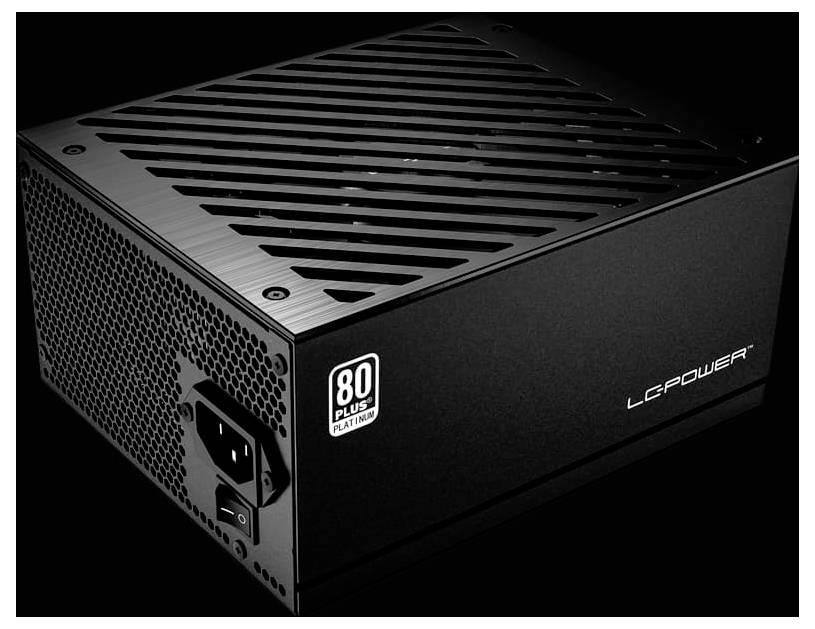

A black power supply unit labeled 'LC Power' features a mesh grille and '80 Plus Platinum' certification badge.

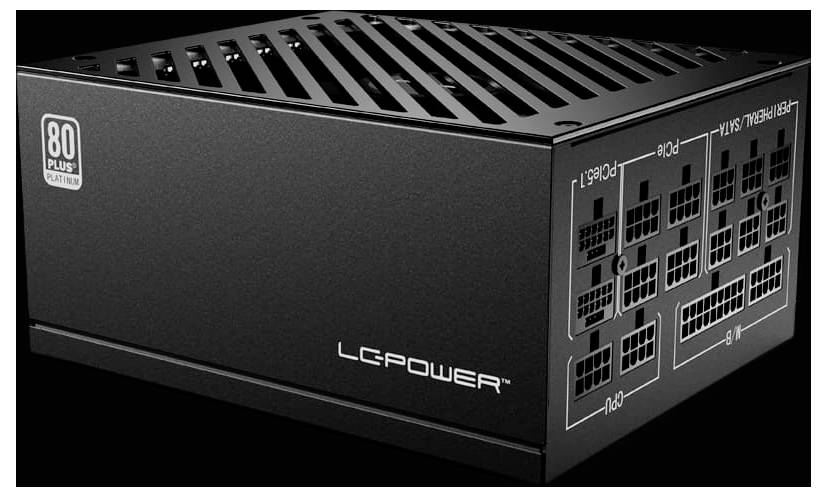

A black modular power supply unit with multiple connection ports, labeled 'LC-Power 80 Plus Platinum,' shown from an angled view.

'LC-Power' power supply unit with multiple ports and '80 Plus Bronze' efficiency label on a black background.

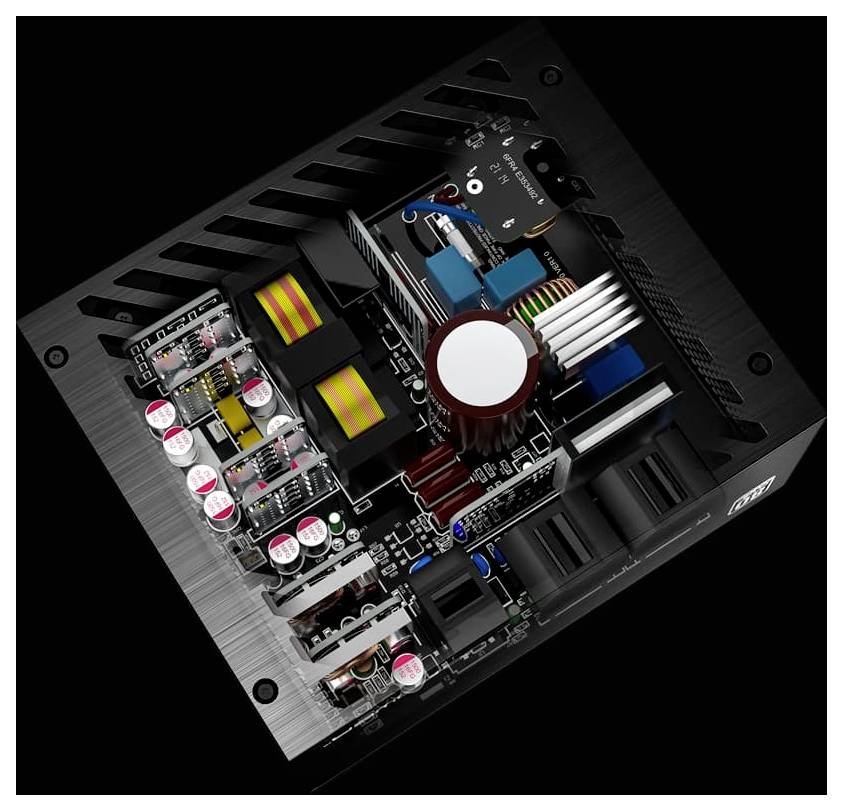

Internal view of a computer power supply unit (PSU) showing electronic components like capacitors, heat sinks, and transformers.

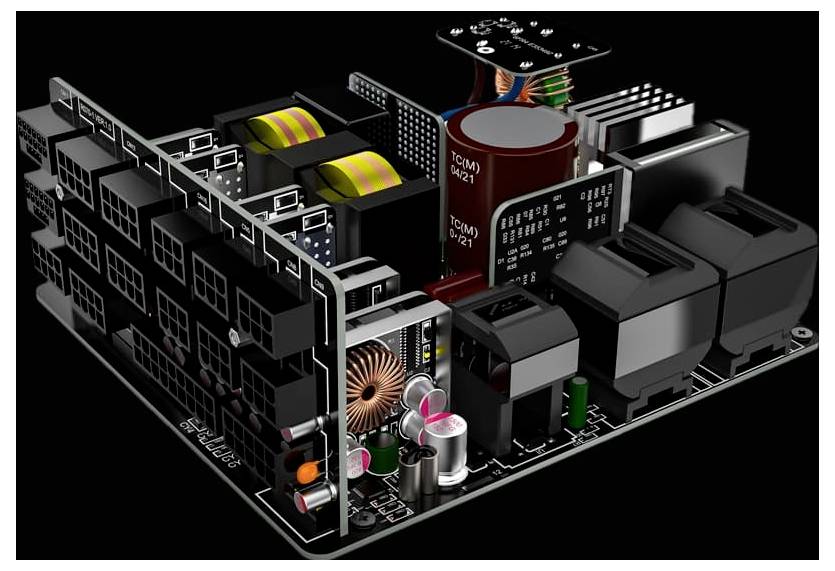

A detailed illustration of a computer power supply unit's internal components, showing capacitors, coils, and heat sinks on a circuit board.

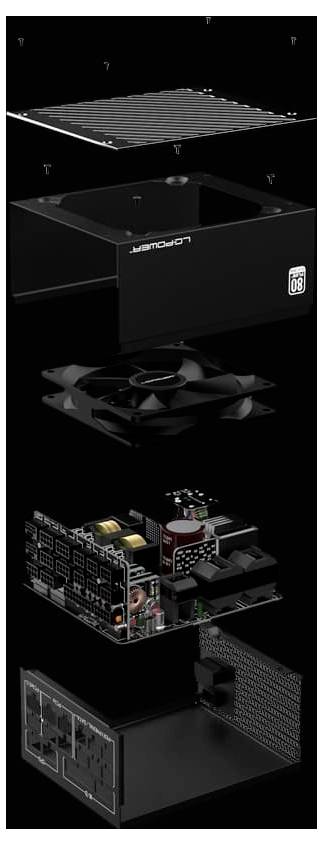

Exploded view of a power supply unit, showing components: casing, fan, circuit board, connectors, and grill, demonstrating assembly.

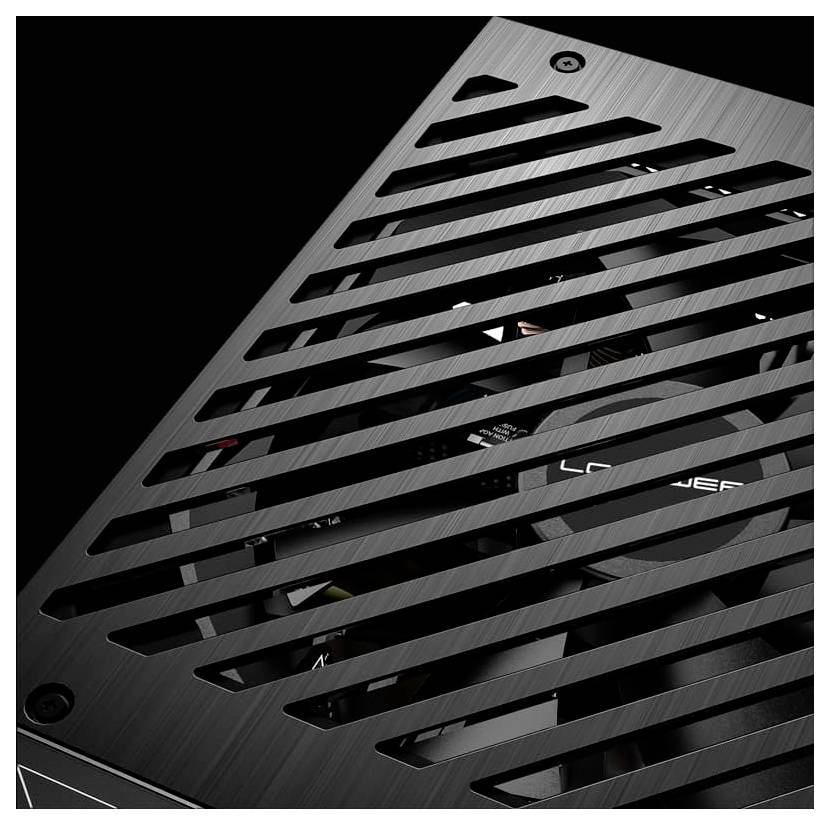

Close-up image of a power supply unit with a fan visible through slotted metal ventilation on a black background.

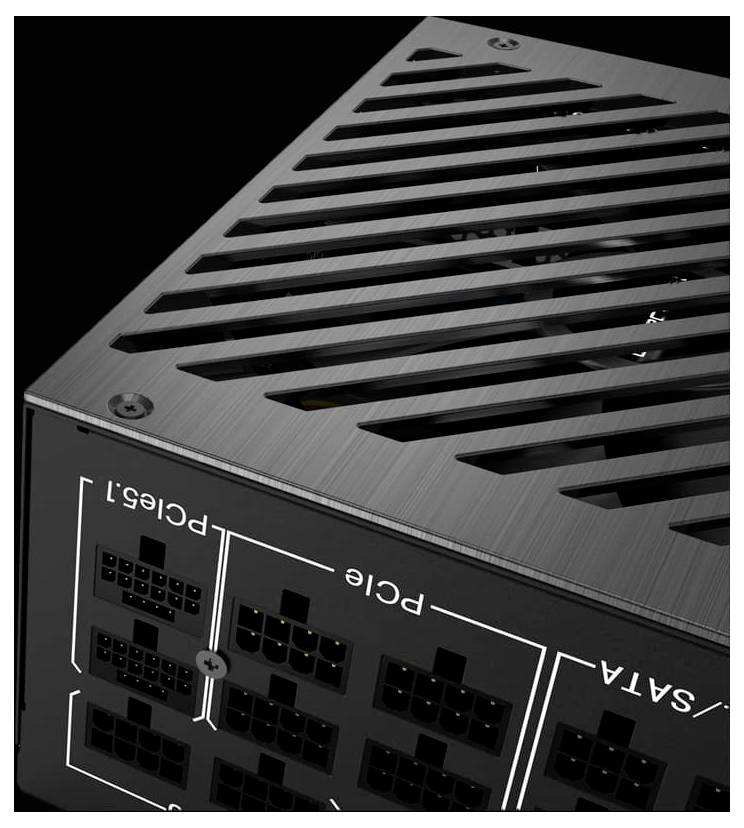

A computer power supply unit with multiple labeled ports for 'SATA' and 'PCIe' connections, featuring a metallic, vented exterior.

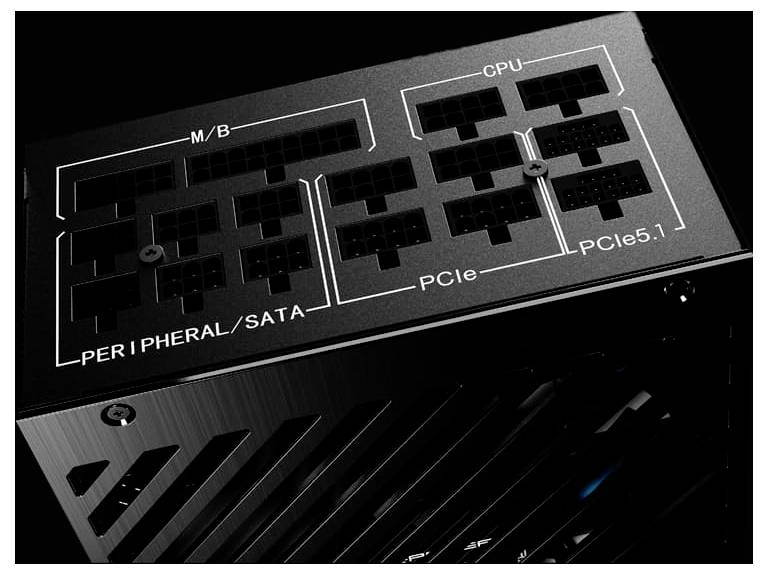

'Close-up of a power supply unit with labeled ports for peripheral/SATA, M/B, CPU, PCIe, and PCIe5.1, highlighting connection options.'

1/14

Product type

PC power supply unit

PSU output power

850 W

Modular

Yes

Certification

80 PLUS Platinum

Form factor

ATX

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LC Power LC850P2 V3.1 Platinum PC power supply unit

Power supply unit output 850 W
PCI-Express (6+2-Pin) 4x
Cable management Yes
80 PLUS Platinum

Technical specifications

Colour, black
Material: Metal, plastic
Power supply series Platinum Pro-Series
20+4-Pin mainboard:1x 650 mm
4+4-Pin mainboard 12V(8-Pin EPS) 2x 650 mm
4-Pin mainboard 12 V:1x 800 mm
PCI-Express 5.1 12+4-pin: 1x 600 mm
PCI-Express 6+2-Pin: 2x 675 mm / 2x 750 mm
SATA: 3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm
Pata: 1x 350 mm / 2x 500 mm / 1x 650 mm / 1x 800 mm
135 mm fan
PFC: Active
Efficiency: Up to 92%
StandBy consumption: 0.5 W.
Safety circuits: OVP (overvoltage protection), OCP (overcurrent protection), OPP (overvoltage protection), OTP (overheating protection), SCP (short-circuit protection), UVP (undervoltage protection)

Product type: PC power supply unit

PSU output power: 850 W

Modular: Yes

Certification: 80 PLUS Platinum

Form factor: ATX

Factory colour: Black

Dim: (L x W x H) 150 cm x 180 mm x 86 mm

Depth: 150 mm

Height: 86 mm

Width: 180 mm

Weight: 2.92 kg

+12 V/DC (1): 70.8 A

5 V DC: 20 A

4-pin 12 V: 1

20+4-pin.: 1

4+4 pin ATX/EPS 12V: 2

6-pin PCIe: 4

Features: ATX 3.1
PCIe Gen 5.1

Power rating: 751 W -

Length: 150 cm

3.3V DC: 20 A

Operating voltage: 100 - 240 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3443632 LC Power LC850P2 V3.1 Platinum PC power supply unit 850 W ATX 80 PLUS Platinum

Description

850 Watt & an improved 135-mm fan
The fully modular Platinum Pro series power supply LC850P2 V3.1 offers impressive performance of 850 watts and is thus a powerful power supply solution – even for demanding PC systems. Equipped with an improved 135 mm high-pressure fan, it provides efficient cooling and reliable and quiet operation, even under extreme conditions.

80 PLUS Platinum certification
The 80 PLUS Platinum power supply LC850P2 V3.1 is the ideal model for extremely powerful gaming PCs and other demanding applications. With an efficiency of over 92% at 50% load it offers outstanding energy savings and is thus the optimum choice for modern high-end systems. The power supplies of the Platinum Pro series guarantee first-class performance and highest reliability even under high load.

Strong connectors for strong performance
With a high-performance PCI Express 5.1-pin connector and four PCI Express 6+2-pin connectors, it enables a direct and reliable power supply for several graphics cards and other powerful components. These dedicated ports ensure stable performance and optimal power consumption for a smooth gaming experience or demanding graphics applications.

Japanese condensers
Through the use of high-quality Japanese capacitors, the LC850P2 V3.1 delivers a constant stable power even under full load. The high quality of these components reduces the risk of failures to a minimum even during continuous operation.

Fully modular & clean look
Thanks to the fully modular cable management of the LC850P2 V3.1, each housing is clean and the cable mess is a thing of the past. From now on, only the necessary cables are available in the housing! Clear look thanks to fully modular cable management No unnecessary cable in the casing air flow is optimized Low temperature and whisper-quiet black sleeved cables

Fan control technology
The LC850P2 V3.1 optimizes the system by itself with the temperature-dependent control of the fan speed At cooler temperatures, it knows that less speed is needed and thus consumes less. At warmer temperatures, it can increase the speed to cool the system optimally.
