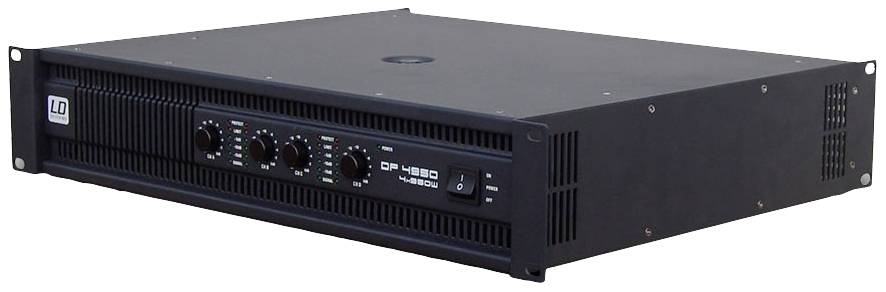

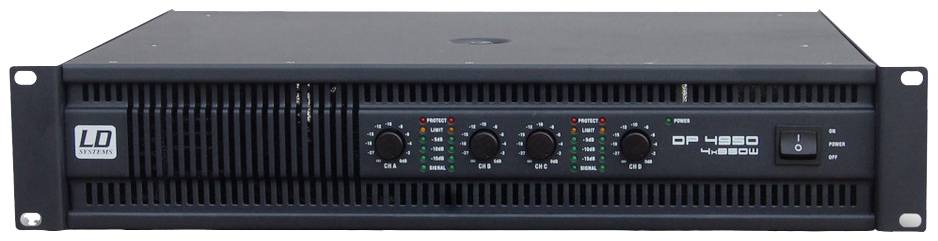

LD Systems DEEP2 4950 Stereo headstage RMS power per channel (at 4 Ohm): 810 W
EAN:
Part number:
Item no:
Technical specifications
- Output power (1 kHz @ 4 ohms) 4 x 810 WOutput power (1 kHz @ 8 ohms) 4 x 490 WOutput power (1 kHz @ 8 ohms, Bridge mode): 2 x 1600 WCircuit concept class HFrequency response 20 Hz – 20000 KHzS/N ratio (THD)<: 0.1 %Signal-to-noise ratio 105 dBAttenuation factor (20Hz-500Hz @8ohm)>: 400Input> 70 dBVoltage gain 38 dBInput sensitivity: 0.775 V.Protection circuits: Short circuit, protection against direct current, overheating4 x volume, ground-lift, mains switch (on/off), switch for bridge/stereo modeDisplay elements: Limit, Power, protect (protection circuit active), signal4 speaker outputsSpeaker output connections: Speakon compatibleCooling: Highly efficient, automatic fan with two speedsPower supply: TransformerOperating voltage 230 V/AC, 50 - 60 Hz
- Product type
Stereo headstage
- Power per channel (4Ω)
810 W
- Power per channel (8Ω)
1600 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Weight
19.6 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2749915 LD Systems DEEP2 4950 Stereo headstage RMS power per channel (at 4 Ohm): 810 W
Description

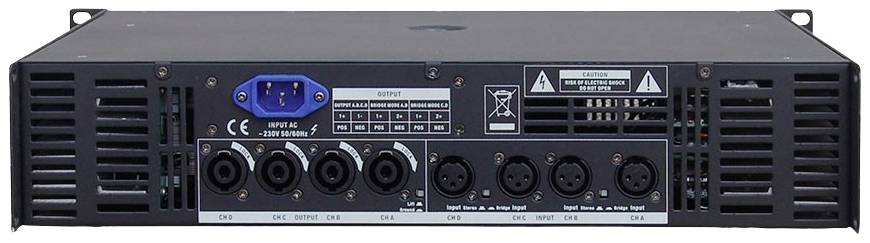

The new DEEP2 power amplifier series comprises four Class-H power amplifiers with toroidal transformer in the power classes from 2 x 400W to 2 x 810W at 4 ohm.The highest importance was attached to reliability and durability in continuous operation of the end stages during development. Only high-quality and selected components are installed.The DEEP2 series possesses all the common protective circuits apart from the clip limiter. The amps have all the common inputs and outputs on the back.The power amplifiers impress through a dynamic and clear sound and are equally suitable for sub-bass applications, as well as also as a driver end stage for multi-function boxes.All models made of sturdy steel plate are clearly structured and are compact, and all this with a very moderate weight.Whether as a band amplifier or as a reliable distributor power stage, the DEEP2 series always offers the right tool for an excellent price/performance ratio.
