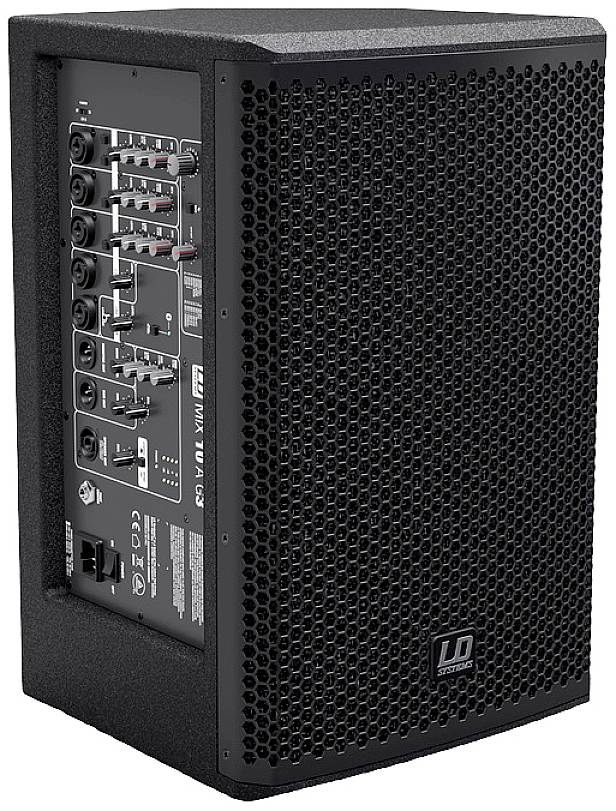

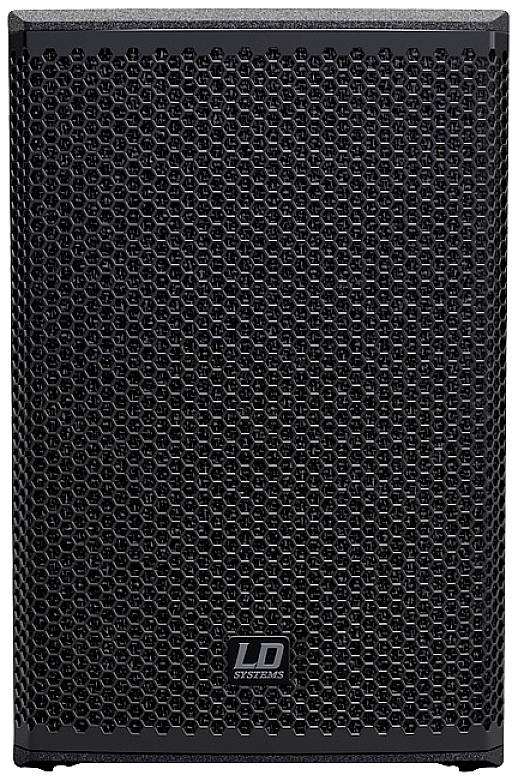

LD Systems MIX 10 A G3 Active PA speaker 25.4 cm 10 inch 200 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LD Systems MIX 10 A G3 2-way active loudspeaker with integrated 7-channel mixer
- RMS power:200 W
- Max. power:400 W
- 10 inch
- 124 dB
Technical specifications
- Woofer size : 10"Size woofer : 254 mmBrand woofer: Custom MadeTweeter size: 1"Tweeter size 25.4 mmTweeter brand: CelestionBeam angle (H x V) 80 x 70 °Amplifier Class DAmplifier power (RMS) 2 x 200 W.Amplifier power (peak) 2 x 400 W.Protective circuits: Short circuit, limiter, overheating, overload, overvoltageChannels: 7MIC inputs: 3MIC input connectors: 6.3 mm jack, XLRControls Mic inputs: + 20 db switch, DFX send, EQ hi, EQ low, Hi-Z switch (channel 1 only), levelLine inputs : 2Line-input connections : 2 x XLR, 3.5mm TRSControl elements Line inputs: LevelHi-Z inputs: 1Hi-Z input connections: 6.3 mm jackInput impedance Hi-Z inputs : 1000 kOhmMonitor line outputs: 2Monitor line output connectors: XLRControl elements Monitor line outputs: Monitor volume, sub levelMax. Output Level Monitor Line outputs:17 dBuRecord outputs: 1Output power of main outputs (at 4 ohms) : 200 W.DSP Number of programs : 16DSP control elements: DFX Return, Footswitch, mute switch, presetsDSP display elements: Peak LEDControls Main section: Balance, EQ Hi, EQ Low, EQ Mid, Master volume, Mono/stereo, phantom power, power on/off, switch operating voltageDisplay elements Main section: 4-segment level meter, power LEDPhantom power 48 VMains connection: IEC mains socketPower supply: SMPSOperating voltage 110 - 120V / 50 - 60Hz or 220 - 240 V / 50 - 60Hz (automatic switching)Power consumption: 500 WHousing type : Bass reflexHousing material : 16 mm plywoodHousing surface: Structural lacquerOther features: Bluetooth, dual tilt flange (0°/5°), ergonomic handle
- Product type
Active PA speaker
- Type
2-way active loudspeaker with integrated 7-channel mixer
- RMS power
200 W
- Max. power
400 W
- Speaker size (cm)
25.4 cm
- Speaker size (inch)
10 inch
- Max. sound pressure
124 dB
- Interfaces
6.3 mm jack out
XLR in
3.5 mm jack in
XLR out
- Features
Bluetooth
Built-in mixer
- Dim
(W x H x D) 315 x 489 x 307 mm
- Frequency range
65 - 20000 Hz
- Weight
12.3 kg
- Content
1 pc(s)
- Width
315 mm
- Height
489 mm
- Depth
307 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2616398 LD Systems MIX 10 A G3 Active PA speaker 25.4 cm 10 inch 200 W 1 pc(s)
Description

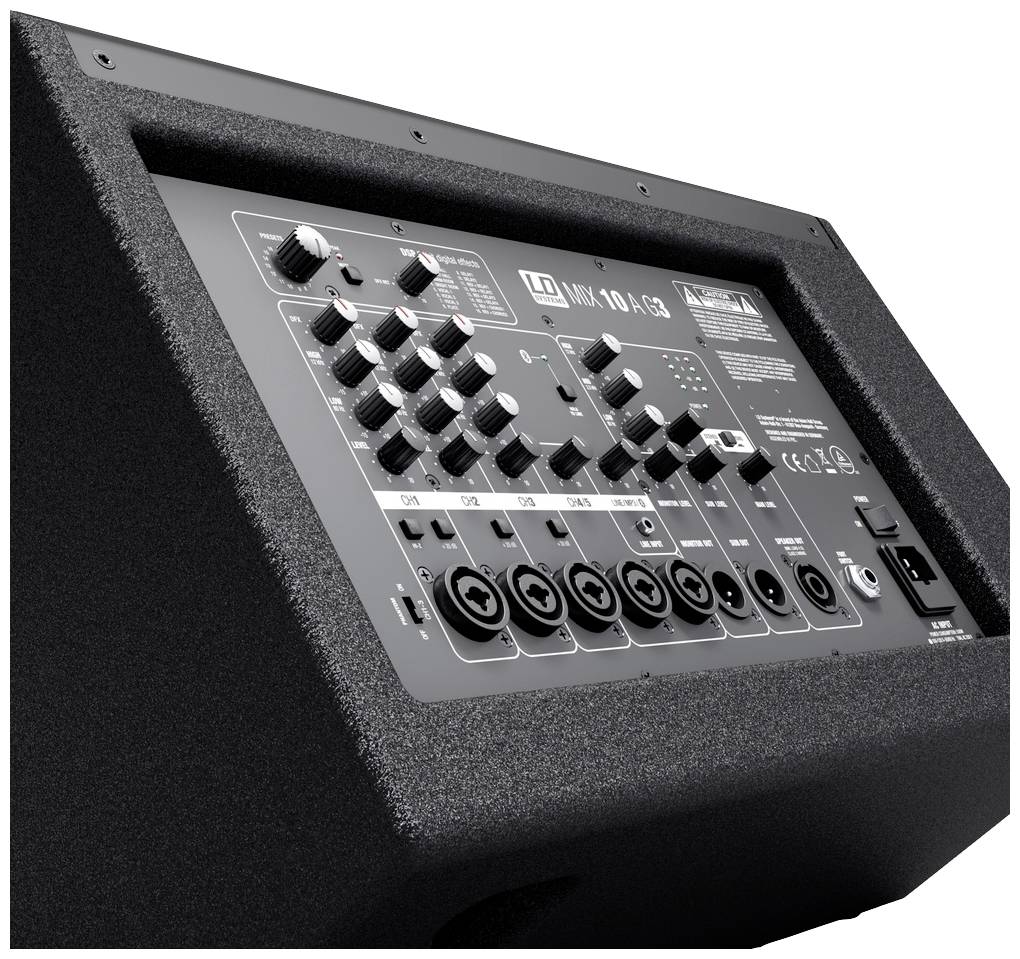

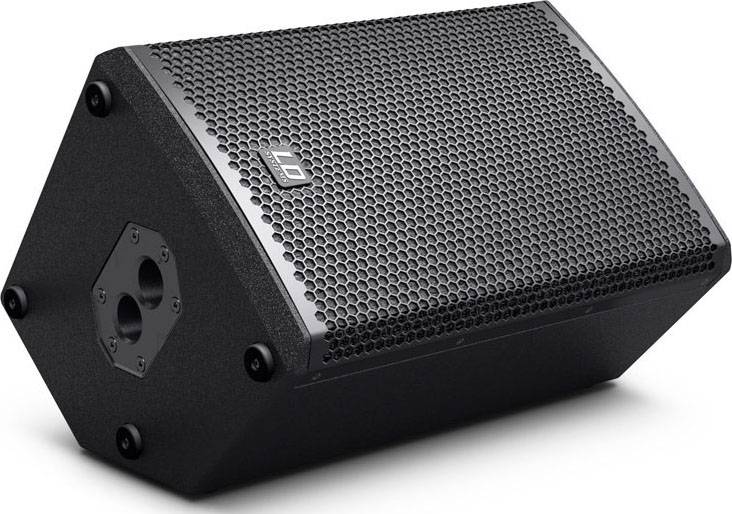

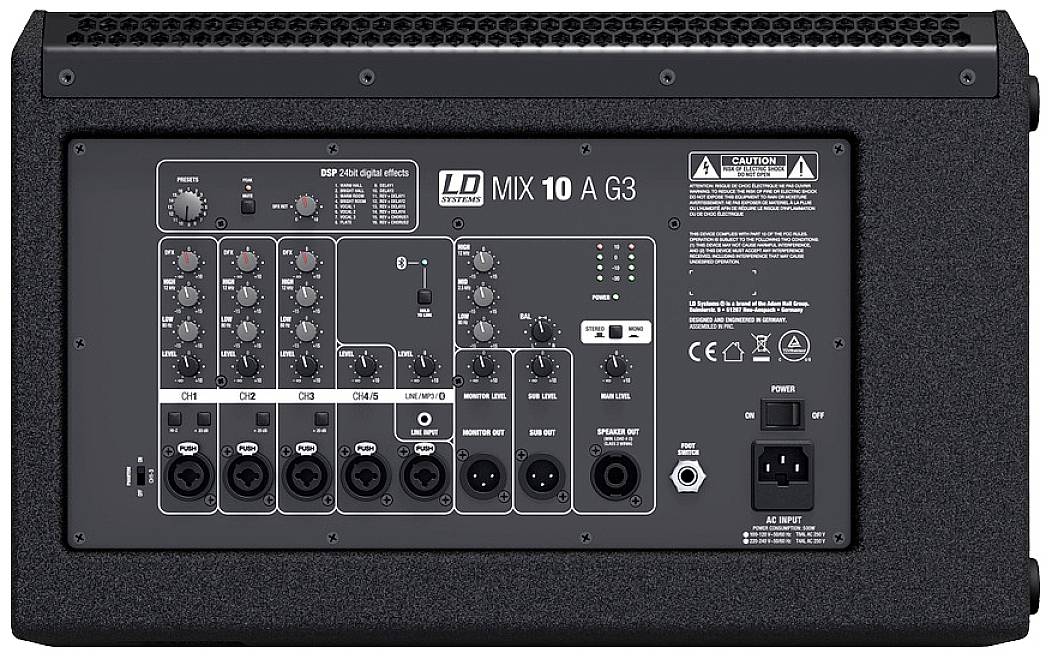

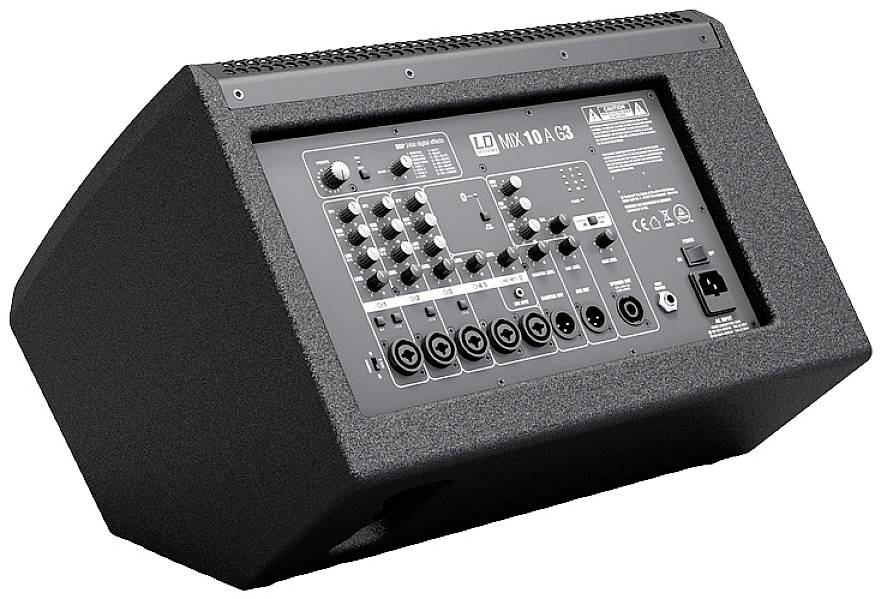

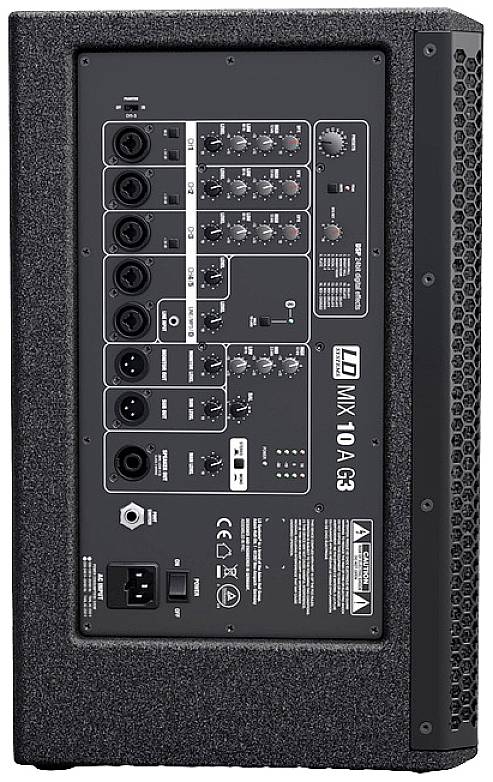

The LD MIX 10 A G3 is the ideal active loudspeaker for small PA systems and monitor applications thanks to the integrated 7-channel mixer and the amplifier in Class D technology with 2 x 400 watt peak power. The compact bass reflex design is equipped with a 10” woofer and 1" Celestion tweeter driver, which provides a frequency response of 65 to 20,000 Hz and 80° x 70° angle of radiation for a crystal-clear and powerful sound with highest detail.The internal mixer offers flexible connection options with 3 microphone channels, a stereo line channel, switchable high-impedance input and 48 V phantom power, e.g. for electrical instruments, smartphones, tablets, MP3 and CD players. The input channels CH1-3 are equipped with a 2-band tone control. The output section has a 3-band tone control for general sound adjustment, a 4-stage LED level display and XLR outputs for monitor and subwoofer. The LD MIX 10A G3 has a DSP with 16 effect presets, limiter and protection against overcurrent, overload, short circuit and overheating. A Speak on output is used to control the LD MIX 10 G3 passive speaker, which is available for stereo configuration.The robust bass reflex housing of the LD MIX 10 A G3 is constructed from a robust multiplex with 50° monitor angle and is equipped with a dual tilt stand flange for straight or 5° inclined installation. Alone or as a stereo combination with the passive LD MIX 10 G3, the versatile active loudspeaker delivers convincing performance at all times with a low, transport-friendly weight.
