LD Systems MIX 6 A G3 Active PA speaker 16.51 cm 6.5 inch 70 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

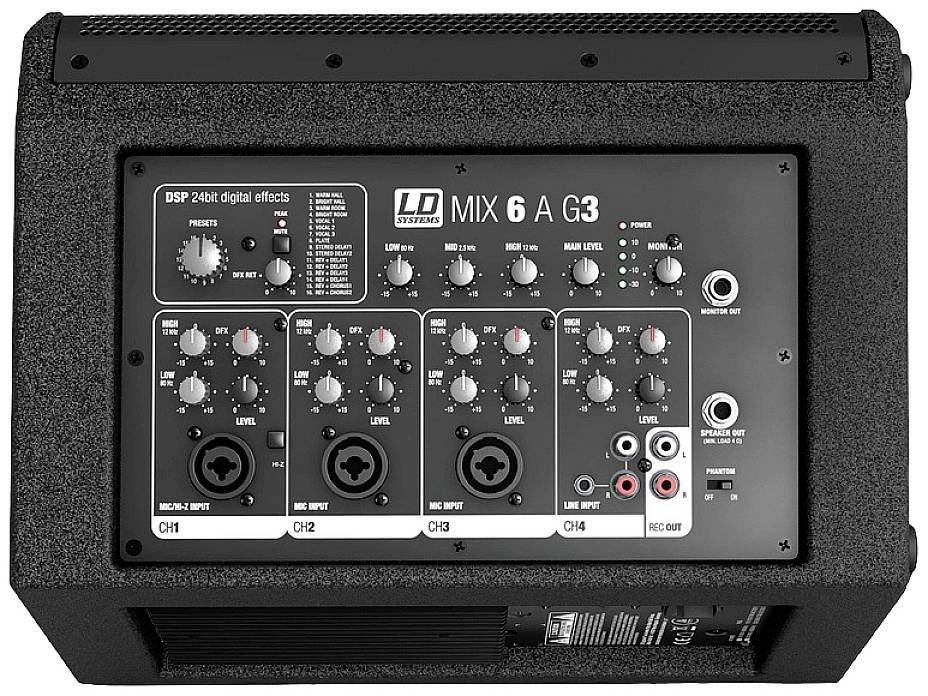

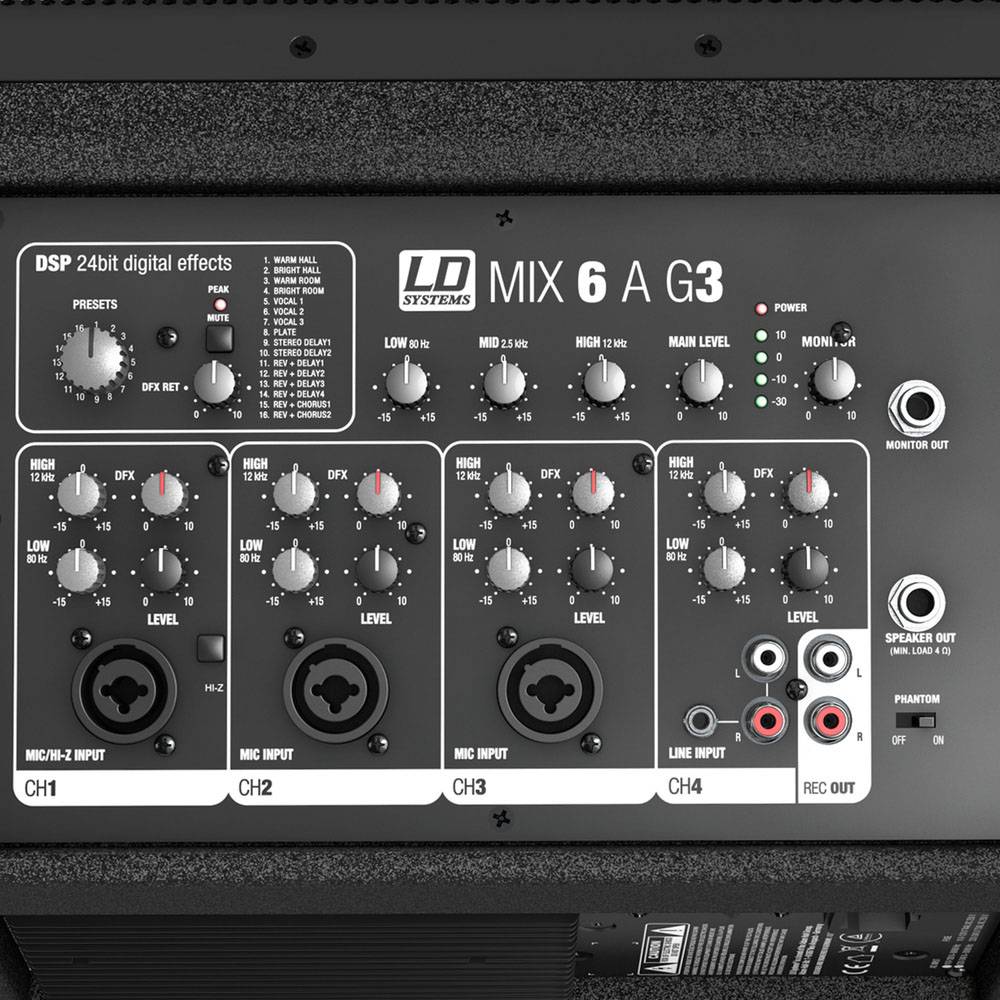

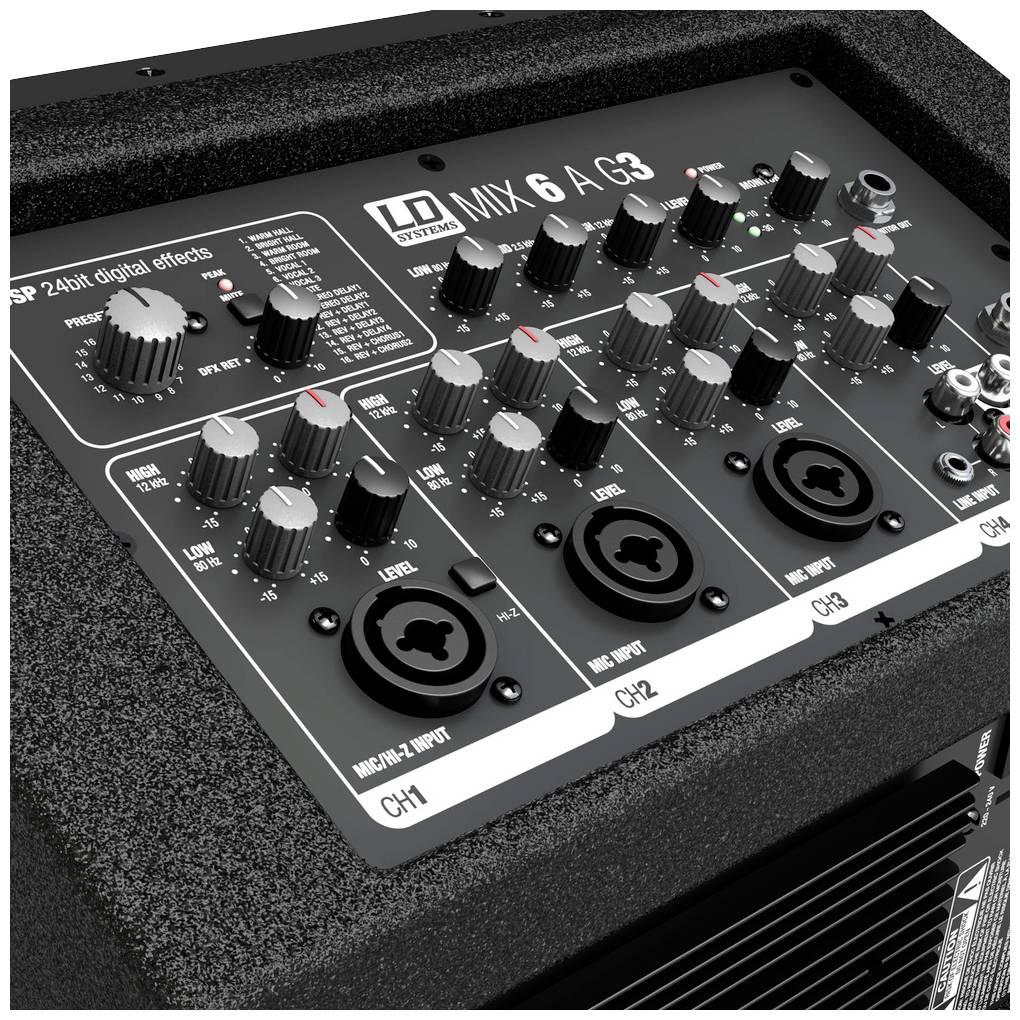

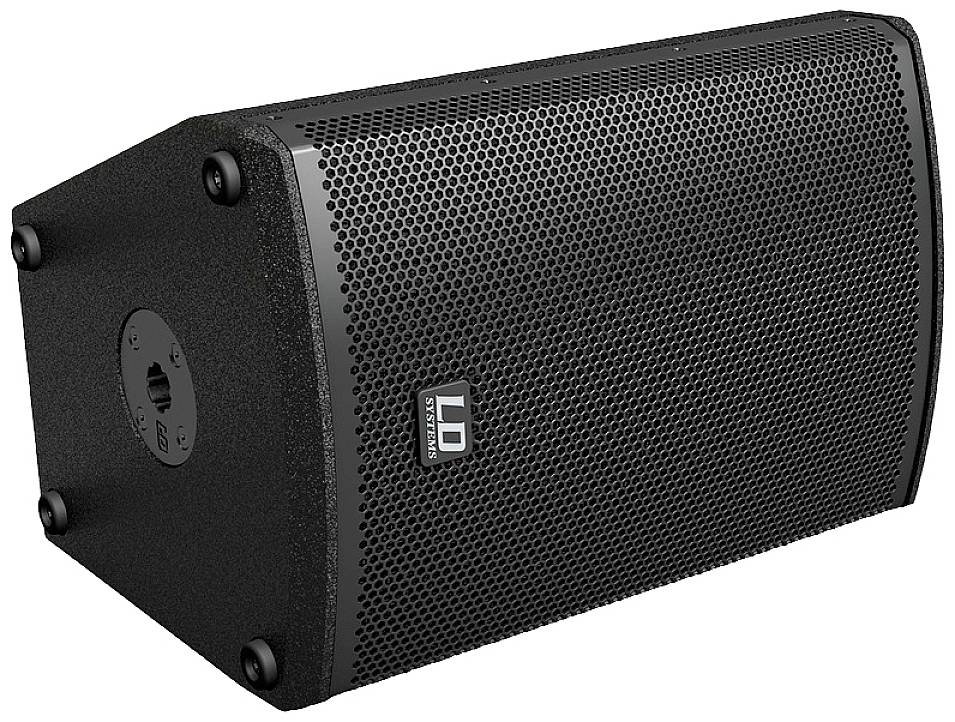

LD Systems MIX 6 A G3 2-way active loudspeaker with integrated 4-channel mixer
- RMS power:70 W
- Max. power:280 W
- 6.5 inch
- 122 dB
Technical specifications
- Woofer size 6.5" (165.1 mm)Tweeter size : 1" (25.4 mm)Beam angle (HxV) : 80 x 70°Amplifier Class DAmplifier power (RMS) : 2x 70 W.Amplifier power (peak): 2x 280 WProtective circuits: ICL (Intelligent Clip Limiting), short circuit, overheating, overload, overvoltageChannels: 4MIC inputs: 3MIC input connectors: 6.3 mm jack, XLRControls Mic inputs: DFX Send, EQ Hi, EQ Low, Hi-Z switch (channel 1 only), LevelInput impedance Mic inputs: 14 kOhmInput sensitivity Mic-inputs: 70 mVLine inputs : 1Line-input connections : 2 x cinchControl elements Line inputs: DFX Send, EQ Hi, EQ Low, LevelInput impedance line inputs : 4.4 kOhmInput sensitivity Line inputs: - 5 dBuHi-Z inputs: 1Hi-Z input connections: 6.3 mm jackInput impedance Hi-Z inputs : 100 kOhmMonitor line outputs: 1Monitor line output connections : 2 x cinchControls Monitor Line Outputs: Monitor VolumeMax.Output Level Monitor Line-outputs : 28 dBuRecord outputs: 1Record output connections : 2 x cinchOutput power of main outputs (at 4 ohms) : 70 W.DSP Number of programs : 16DSP control elements: DFX Return, mute switchDSP display elements: Peak LEDControls Main section: EQ Hi, EQ Low, EQ Mid, Master volume, Phantom power, Voltage selection switchDisplay elements Main section: 4-segment level meter, power LEDPhantom power 15 VMains connection: IEC mains socketPower supply: TransformerOperating voltage 110 - 120V / 50 - 60Hz or 220 - 240 V / 50 - 60Hz (switchable)Power consumption 180 WHousing type : Bass reflexHousing material : MDFHousing surface: Structural lacquerFurther housing properties: 2 x 16 mm stand flange, rubber feet
- Product type
Active PA speaker
- Type
2-way active loudspeaker with integrated 4-channel mixer
- RMS power
70 W
- Max. power
280 W
- Speaker size (cm)
16.51 cm
- Speaker size (inch)
6.5 inch
- Max. sound pressure
122 dB
- Interfaces
6.3 mm jack in
XLR in
RCA out
RCA in
- Features
Built-in mixer
- Dim
(W x H x D) 214 x 323 x 221 mm
- Frequency range
80 - 20000 Hz
- Weight
7 kg
- Content
1 pc(s)
- Width
214 mm
- Height
323 mm
- Depth
221 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2616378 LD Systems MIX 6 A G3 Active PA speaker 16.51 cm 6.5 inch 70 W 1 pc(s)
Description

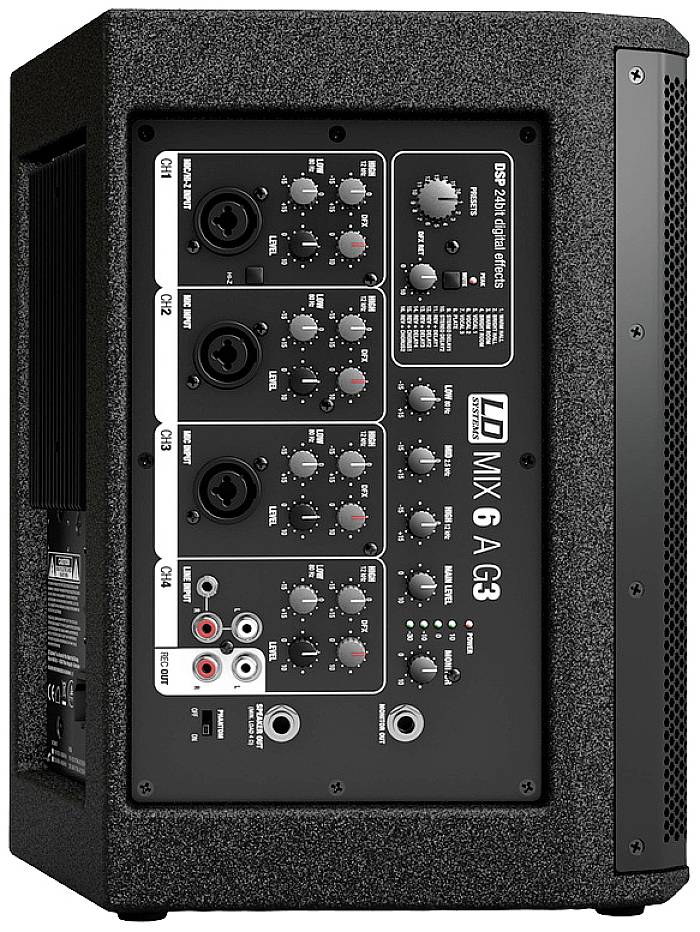

The LD MIX 6A G3 is the ideal active loudspeaker for small PA systems and monitor applications thanks to the integrated 4-channel mixer and the amplifier in Class D technology with 2 x 280 watts of peak power. The compact bass reflex design is equipped with a 6.5” woofer and 1" tweeter driver, which provides a frequency response of 80 to 20,000 Hz and 80° x 70° angle of radiation for a crystal-clear and impressive sound with highest detail.The internal mixer offers flexible connection options with 3 microphone channels, a stereo line channel, switchable high-impedance input and 15 V phantom power, e.g. for electrical instruments, smartphones, tablets, MP3 and CD players. Each input channel is equipped with a 2-band tone control. The output section has a 3-band tone control for general sound adjustment, a 4-level LED level display as well as an adjustable monitor output and cinch sockets for connecting a recording device. For this purpose, the LD MIX 6A G3 has a DSP with 16 effect presets, limiter and protection against overcurrent, overload, short-circuit and overheating. A 4 ohm slave output is used to control the LD MIX 62 G3 passive loudspeaker, which is available separately.The stable bass reflex housing of the LD MIX 6 A G3 made of MDF is equipped with two 16 mm stand holders for horizontal or vertical installation. Alone or in combination with the passive LD MIX 102 G3, the versatile active loudspeaker delivers convincing performance at all times with a low, transport-friendly weight.
